1211080050 - 5m PROFINET Dragline Cable with M12 & RJ45 Connectors

SKU: SKU: 1211080050 Download PDF

Select a Variant:

1211080050 - 5m PROFINET Dragline Cable with M12 & RJ45 Connectors

SET THE QTY:

Now $76.80 Web pricing policy

~~BEFORE $0.00~~ Now $76.80 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

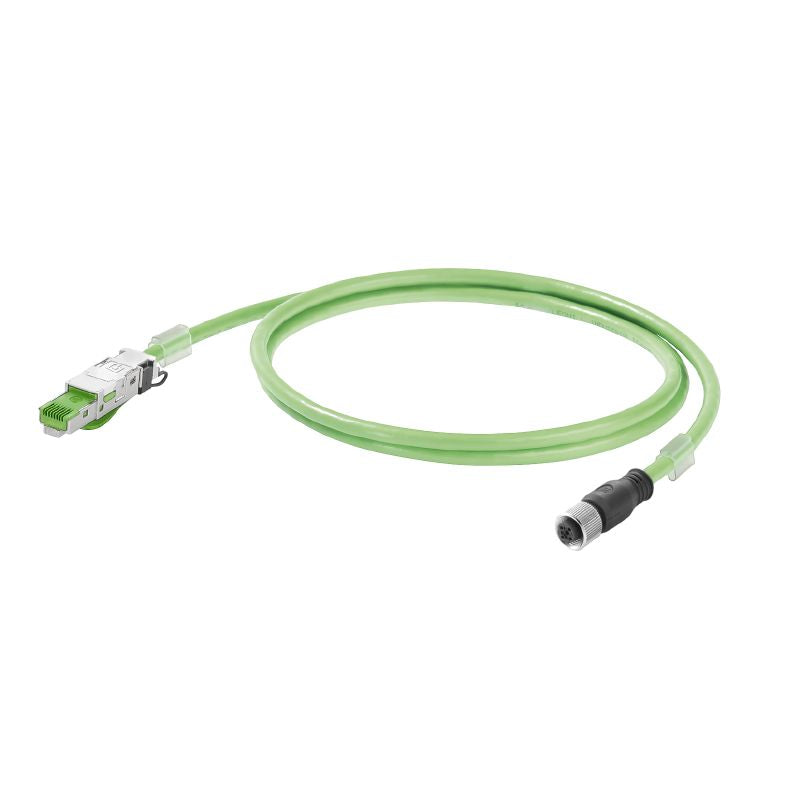

This M12 D-code cable is specifically engineered for PROFINET applications, featuring robust connectors for reliable performance The straight socket connectors are rated IP67 for water and dust resistance, while the RJ45 connector meets an IP20 rating Compliant with Cat5 standards, including ISO/IEC 11801 and TIA T568-B, this durable cable is constructed from PUR material and measures 5 meters in length, making it a suitable choice for various industrial environments.

Features and Benefits:

•Compliant with RoHS and environmental standards.

•Star-quad wire arrangement.

•Complete shielding with aluminium foil and copper braid.

•UV-resistant and silicone-free.

•Halogen-free according to IEC 60754-2.

Specifications:

Length	5 m
Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Cross-section	4*AWG 22/7 - 0.32 mm²
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Insulation	PE
Material sheath	PUR
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Operating voltage (UL rating)	600 V
Resistance differential	3 %
Signal propagation time	5.3 ns/m
Test voltage: wire-wire-shield	2000 V
Mechanical and material properties of cable	{'Abrasion resistance': 'very good', 'Bending cycles': '3 Mio', 'Min. bending radius, once only': '5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'Resistance to spread of flame': 'in accordance with IEC 60332-1', 'Speed': '180 m/min'}

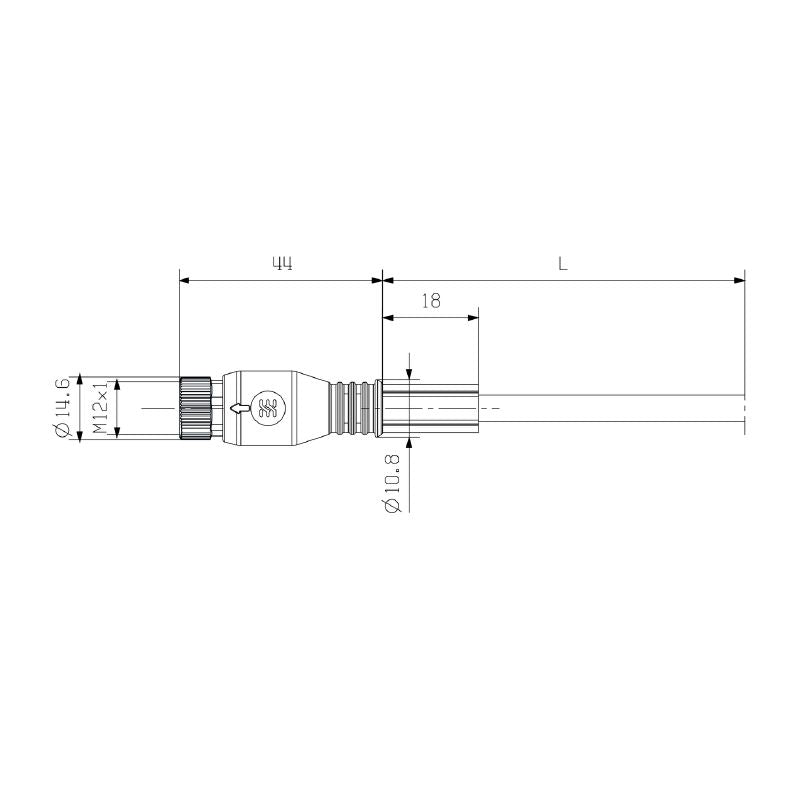

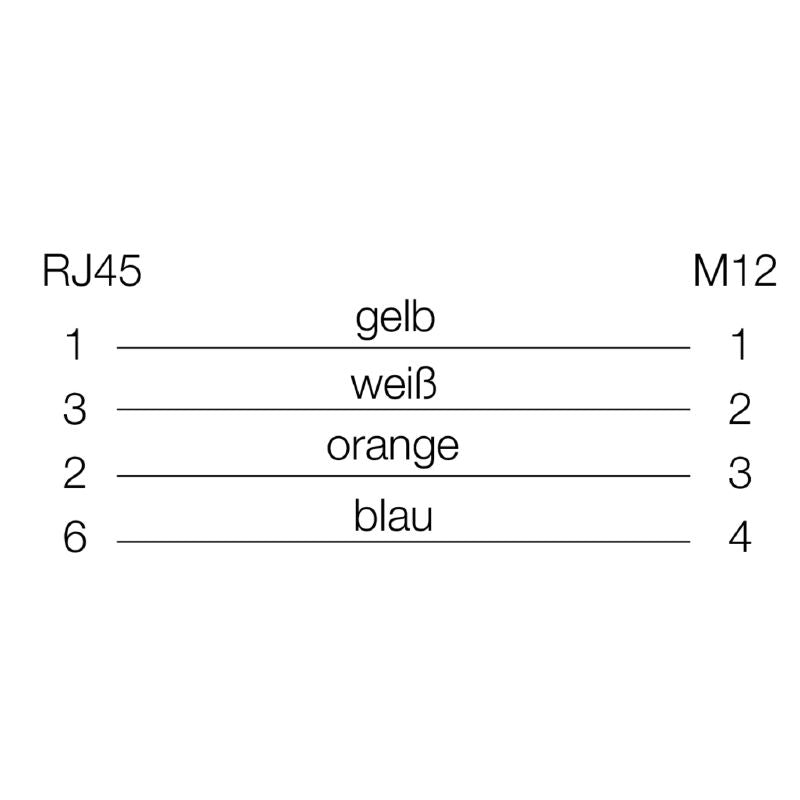

Plug, left	M12, IP67, female contact, straight, plug, Plastic, shielded

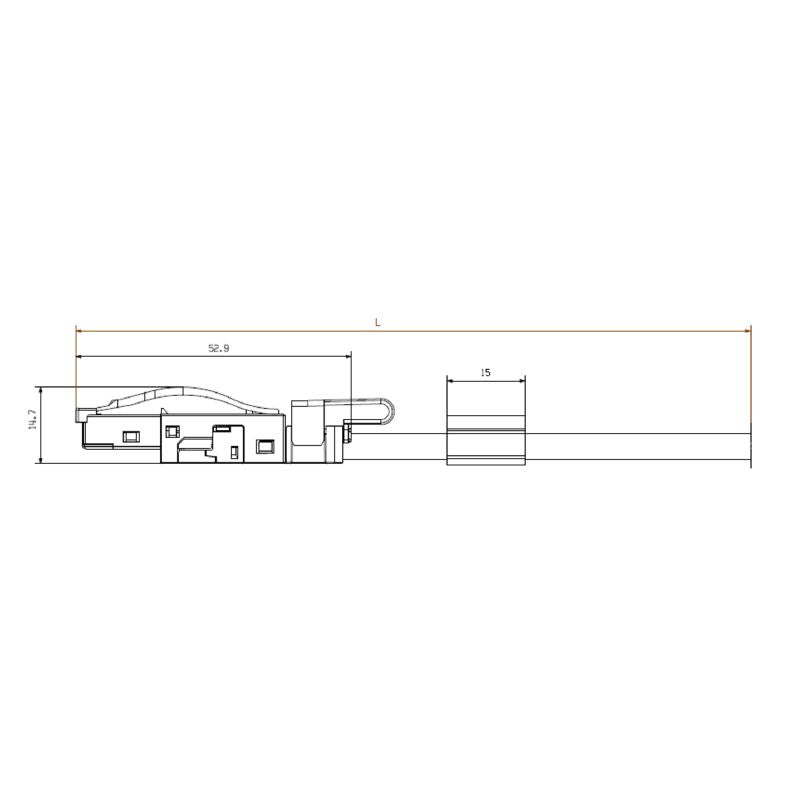

Plug, right	RJ45, IP20, male contact, straight, plug, Plastic, shielded
