Description:

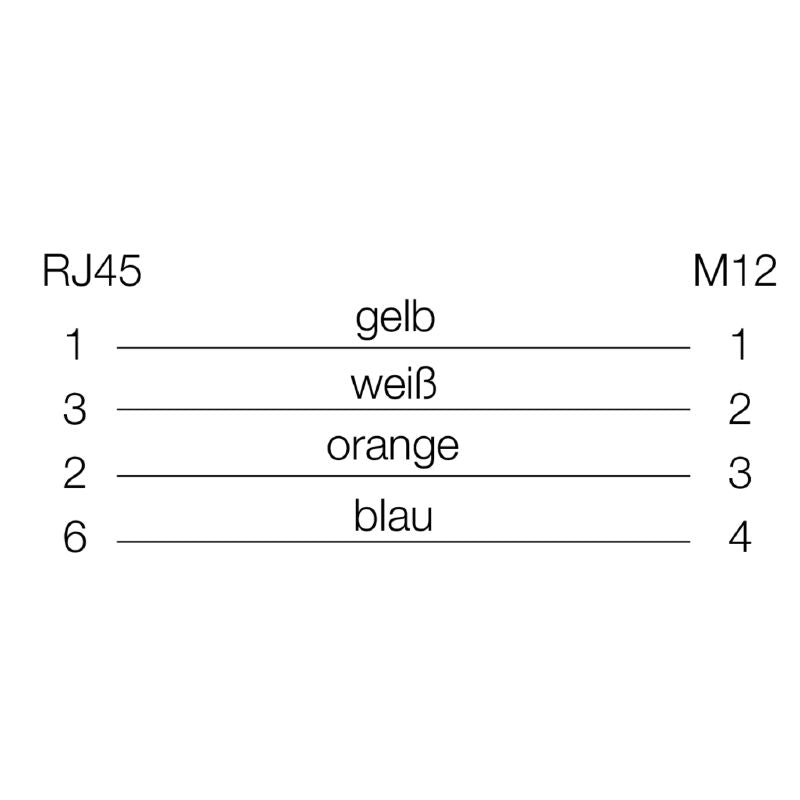

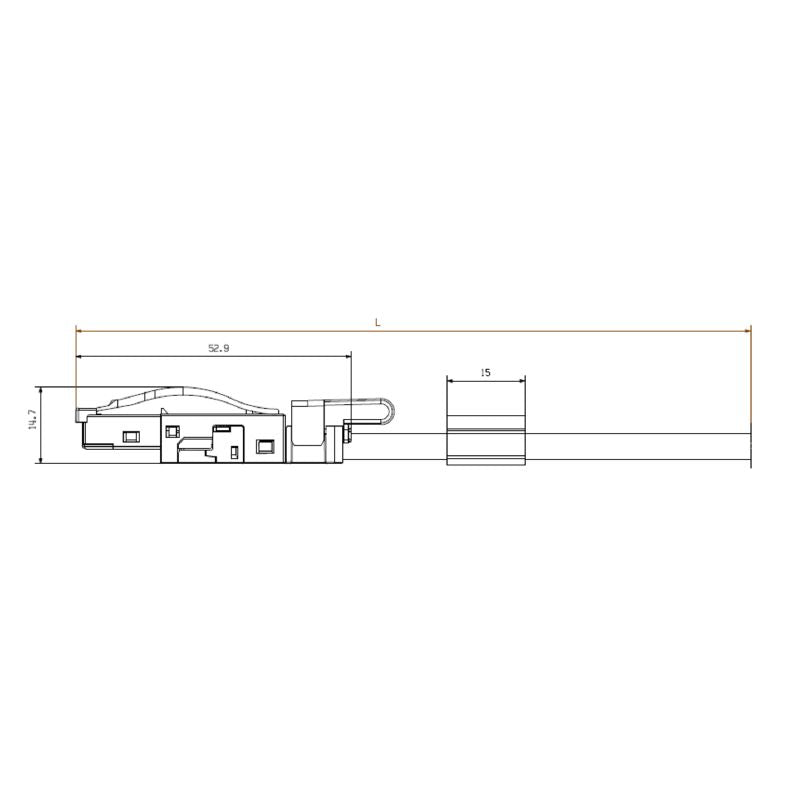

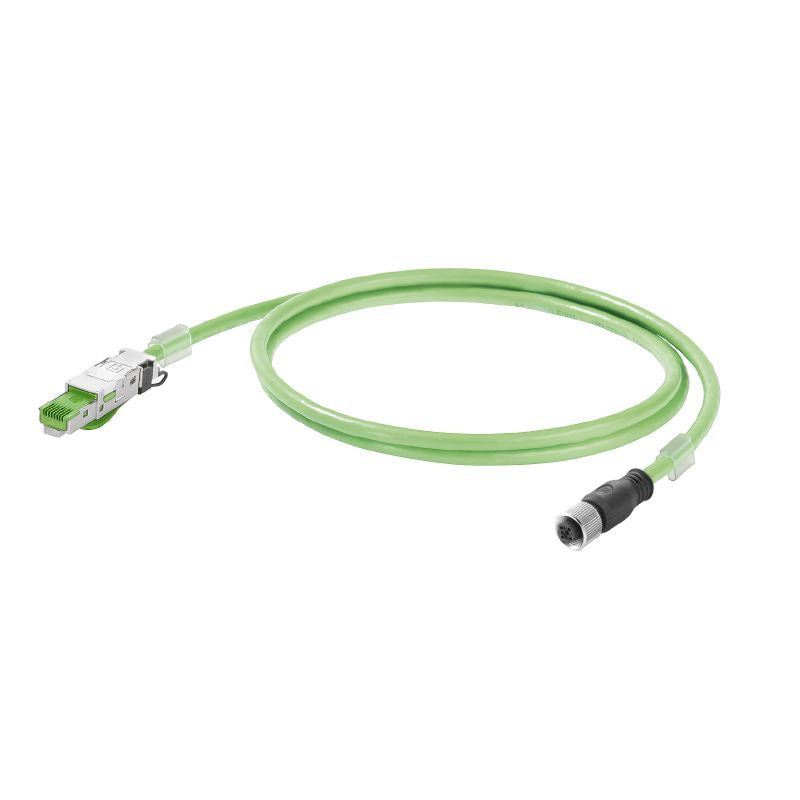

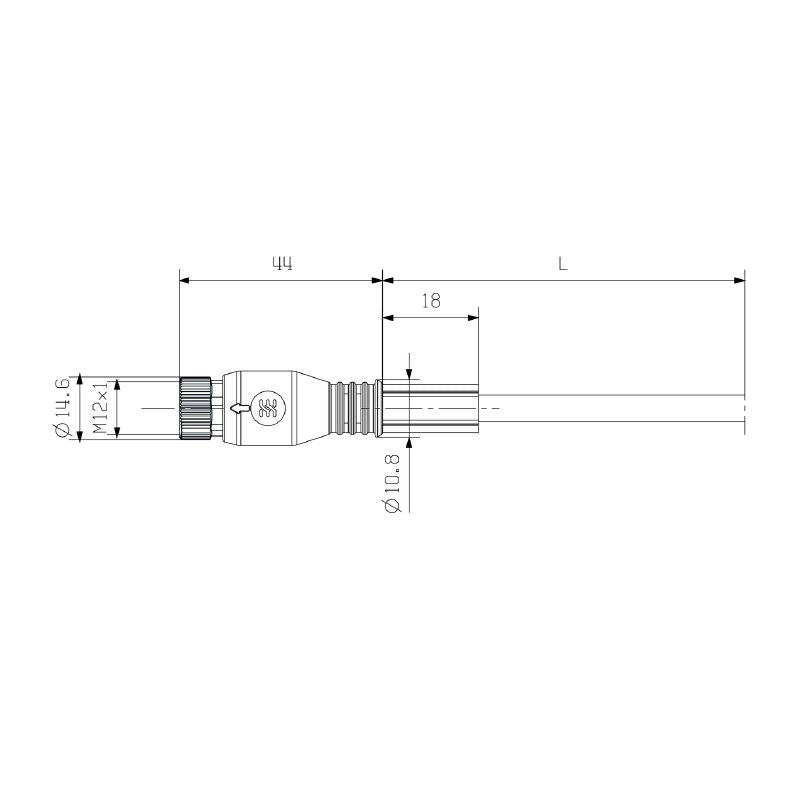

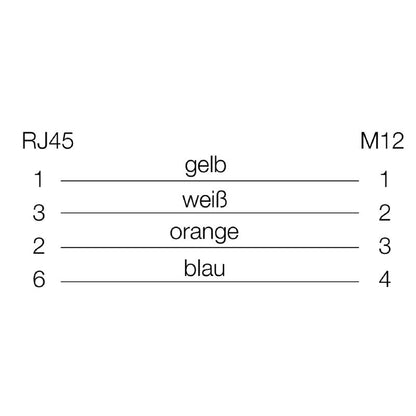

Discover the robust Dragline cable equipped with a PROFINET connection, featuring an IP 67 rated M12 D-code straight socket on one side and an RJ45 connector rated IP 20 on the other Designed to meet Cat5 criteria in accordance with ISO/IEC 11801 and TIA T568-B standards, this cable is made from durable PUR material and boasts a convenient length of one meter Perfect for reliable connections in various industrial applications.

Features and Benefits:

•Compliant with RoHS exemption.

•Halogen-free according to IEC 60754-2.

•UV-resistant.

•Silicone-free.

Specifications:

Length	1 m
Net weight	75.68 g
Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Capacity at 1 kHz	52 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Delay skew	40 ns/100m
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Signal propagation time	5.3 ns/m
Transfer impedance	20 mΩ/m at 10 MHz
Mechanical properties	{'Abrasion resistance': 'very good', 'Bending cycles': '3 Mio', 'Min. bending radius, once only': '5 x cable diameter', 'Min. bending radius, repetitive': '7.5 x cable diameter', 'Pulling force': '≤ 150 N', 'Resistance to oils': 'in accordance with IEC 60811-2-1', 'Resistance to spread of flame': 'in accordance with IEC 60332-1', 'Speed': '180 m/min', 'Acceleration': '4 m/s²'}
Cable structure	{'Arrangement of wire cores': 'Star-quad', 'Complete shielding': 'Aluminium foil', 'Cross-section': '4*AWG 22/7 - 0.32 mm²', 'Wire material': 'Stranded tin-plated copper wire', 'Number of wires': '4', 'Sheath diameter, max.': '6.7 mm', 'Sheath diameter, min.': '6.3 mm', 'Insulation': 'PE', 'Insulation cross-section': '1.5 mm'}
