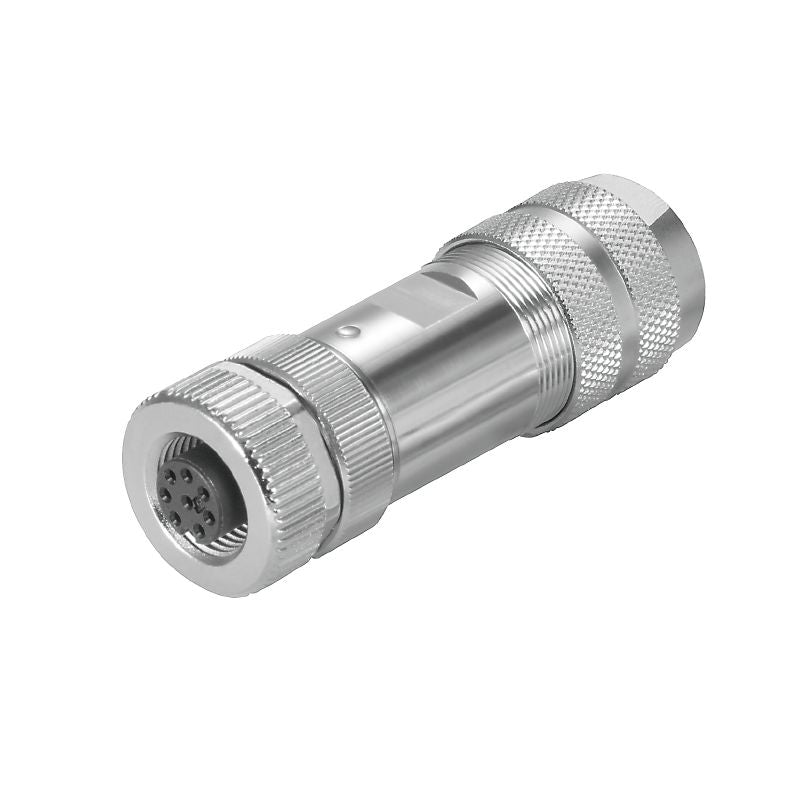

1191020000 - IP67 M12 Connector for 4-6mm Cables, 60V, RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile M12 field-attachable connector, ideal for a range of applications and compliant with RoHS standards With a UL certification number E307231, this connector accommodates cable diameters from 4 mm to 6 mm and is engineered to handle a maximum nominal current of 4 A at a voltage of 60 V Its gold-plated contacts ensure reliable connectivity, while the IP67 protection rating indicates robust performance in challenging environments.

Designed for longevity, this connector can endure up to 100 plugging cycles and operates effectively in temperatures between -40 °C and +85 °C.

Features and Benefits:

•Gold-plated contacts for improved conductivity.

•IP67 protection for dust and water resistance.

•Customizable with max cable diameters of 6 mm and min of 4 mm.

•Female gender of contact for various connection types.

•Durable diecast zinc threaded ring.

•Compatible with M12 connections.

Specifications:
