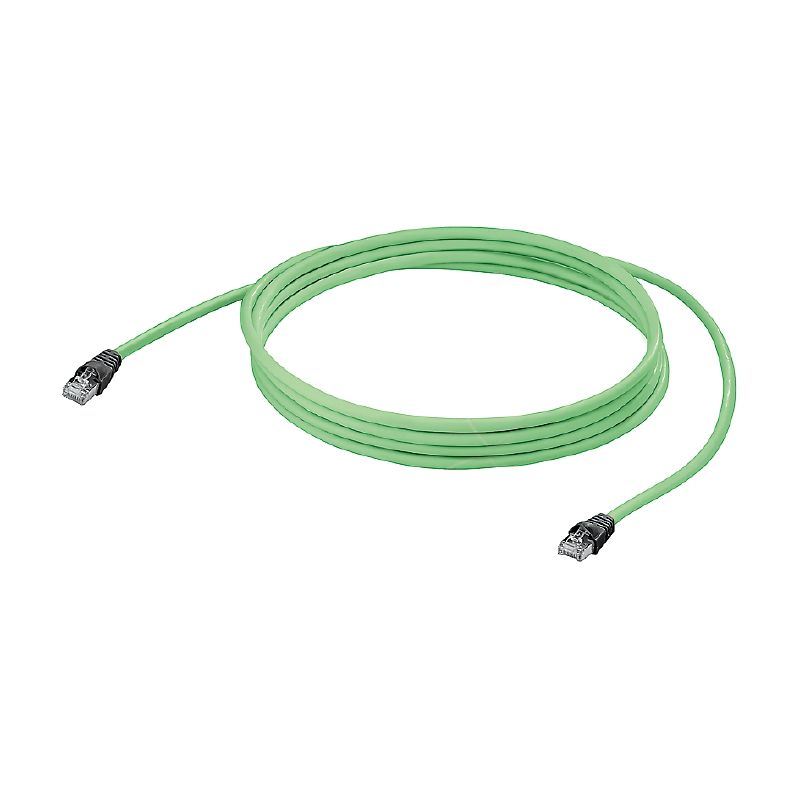

1177240000 - 5m PUR Dragline Cable for RJ45 IP 20 Connections

1177240000 - 5m PUR Dragline Cable for RJ45 IP 20 Connections

SKU: 1177240000   Download PDF

Select a Variant:
  • 1177240000 - 5m PUR Dragline Cable for RJ45 IP 20 Connections
Qty:
Now $60.90   Web pricing policy
BEFORE   $0.00 Now $60.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a specialized dragline cable crafted for RJ45 IP 20 connections, this cable adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, guaranteeing top-notch performance in data transmission Measuring 5 meters in length and made from durable PUR material, it is perfect for a wide array of applications Additionally, this cable is RoHS compliant, ensuring it meets environmental safety standards without compromising on quality.

Features and Benefits:

    •Compatible with Cat.5 and Cat.5e standards.

    •RoHS compliant without exemptions.

    •Halogen-free construction.

    •IP20 rating for protection against solid objects over 12mm.

    •Good resistance to abrasion and oils.

    •UV-resistant.

Specifications:

 Length 5 m
 Operating temperature -40 °C to 80 °C
 Storage temperature -40 °C to 80 °C
 Wire material Stranded tin-plated copper wire
 Category Cat.5 / Cat.5e
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Loop resistance 290 Ω/km
 Operating voltage 30 V
 Signal propagation time 5.55 ns/m
 Sheath diameter, max 6.8 mm
 Sheath diameter, min 6.5 mm
 Twisted pair arrangement 4*2
 Filler As central element
