1171890500 - 5m M12 3-Pole Sensor/Actuator Connecting Cable

1171890500 - 5m M12 3-Pole Sensor/Actuator Connecting Cable

SKU: SKU: 1171890500   Download PDF

Select a Variant:
  • 1171890500 - 5m M12 3-Pole Sensor/Actuator Connecting Cable
Qty:
Regular price Now $24.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $24.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

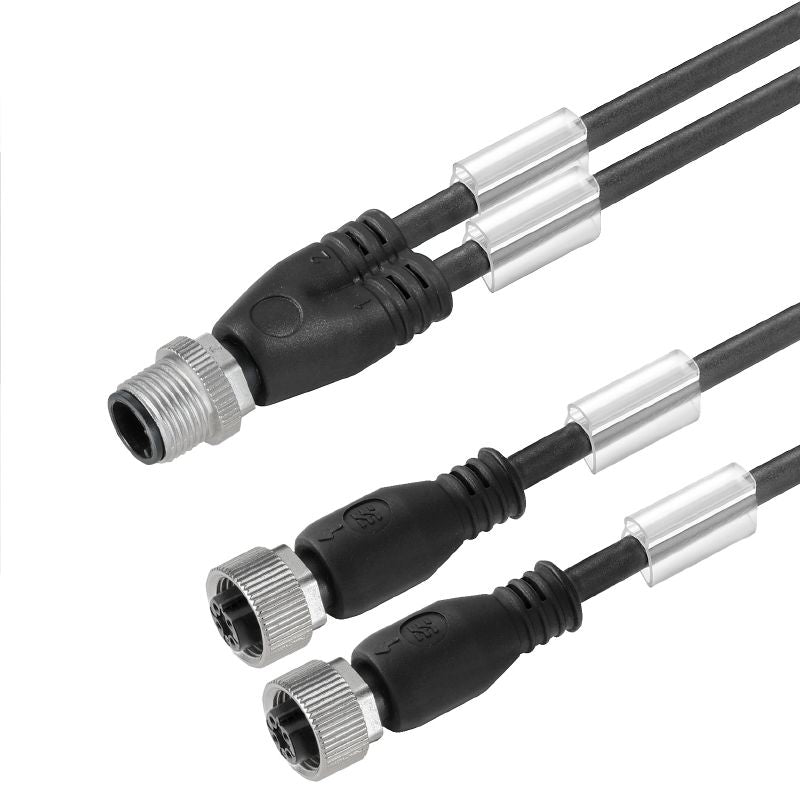

Introducing a versatile 5-meter connecting cable ideal for sensor and actuator setups This cable features a three-pole M12 connector and is constructed with twin cabling, including straight plugs on both the male and female ends Designed without shielding or an LED indicator, it boasts a durable PVC sheath and meets halogen-free standards Please note that this cable is available only in its fixed length and cannot be customized.

Features and Benefits:

    •Halogen-free sheath material.

    •Gold-plated contact surface.

    •IP67 protection degree.

    •Temperature range for stationary use: -30 to +80 °C.

Specifications:

 Cable length 5 m
 Core cross-section 0.34 mm²
 Outer diameter 4.9 mm ± 0.2 mm
 Number of poles 3
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Protection degree IP67, IP68 when screwed in
 Tightening torque M12: 0.8 - 1.2 Nm
 Plug, left M12, A-coded, IP68, male contact, straight, Plastic, unshielded
 Plug, right M12, A-coded, IP68, female contact, straight, Plastic, unshielded
 Temperature range of housing -25…+85 °C
