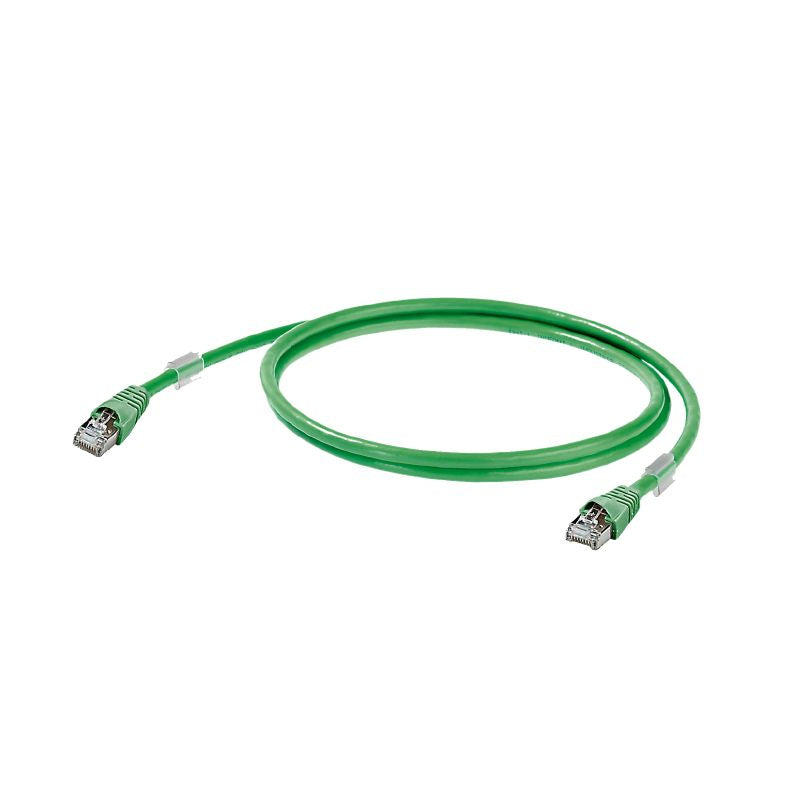

1166020100 - 10m Cat.5 RJ45 System Cable, IP 20 Compliance

SKU: SKU: 1166020100 Download PDF

Select a Variant:

1166020100 - 10m Cat.5 RJ45 System Cable, IP 20 Compliance

SET THE QTY:

Now $30.38 Web pricing policy

~~BEFORE $0.00~~ Now $30.38 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure seamless data transmission with this 10-meter RJ45 system cable, engineered to meet Cat5 standards in accordance with ISO/IEC 11801 Crafted from durable PVC, this cable boasts an IP 20 rating, making it suitable for a wide range of applications where reliability is crucial.

Features and Benefits:

•Compliant with RoHS standards without exemption.

•Twisted pair arrangement for improved signal integrity.

•Complete shielding with a braid made from copper wiring.

•Good abrasion resistance and halogen-free material.

Specifications:

Operating temperature	-40 °C to 75 °C
Connector standard	IEC 60603-7-51
Cable specifications	{'Category': 'Cat.5 (ISO/IEC 11801)', 'Characteristic impedance': '100 ± 5 Ω at 100MHz', 'Loop resistance': '150 Ω/km', 'Operating voltage (UL rating)': '30 V', 'Transmission rate': '10/100 MBit/s, 1000 MBit/s'}

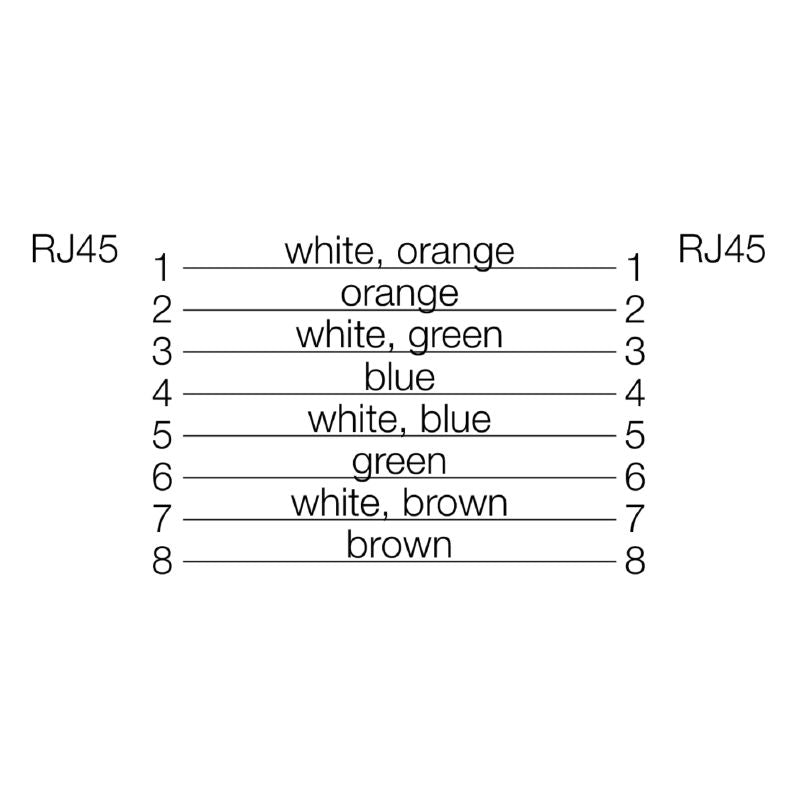

Cable structure	{'Number of wires': '8', 'Wire material': 'Stranded tin-plated copper wire', 'Sheathing colour': 'green (RAL 6018)', 'Shielding': 'SF/UTP', 'Diameter of wire pair': '2.4 mm'}
Weight	395 g
Sheath diameter	{'max': '5.8 mm', 'min': '5.4 mm'}
