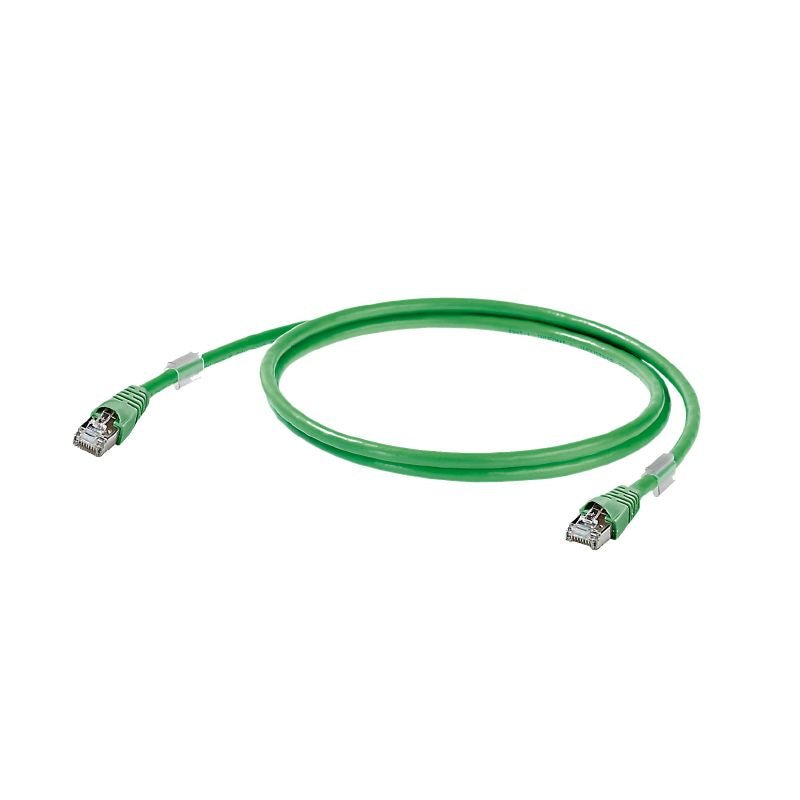

1166020010 - 1m RJ45 Cat.5 System Cable, PVC, for IP 20 Use

SKU: SKU: 1166020010 Download PDF

Select a Variant:

1166020010 - 1m RJ45 Cat.5 System Cable, PVC, for IP 20 Use

SET THE QTY:

Now $7.33 Web pricing policy

~~BEFORE $0.00~~ Now $7.33 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

This 1-meter long system cable comes equipped with RJ45 connectors, specifically crafted for IP 20 applications It conforms to Cat5 specifications in accordance with ISO/IEC 11801 Made from durable PVC material, this cable adheres to multiple technical standards and operates effectively in extreme temperatures, ranging from -40 °C to 75 °C Additionally, it is RoHS compliant with no exemptions, and weighs in at 55 grams.

Features and Benefits:

•Capable of achieving data transmission rates of 10/100 MBit/s and 1000 MBit/s.

•This cable has a good abrasion resistance.

•Includes a complete shielding made from copper wiring.

Specifications:

Length	1 m
Operating temperature	-40 °C...75 °C
Capacity at 1 kHz	48 nF/km
Category	Cat.5 (ISO/IEC 11801)
Characteristic impedance	100 ± 5 Ω at 100MHz
Loop resistance	150 Ω/km
Operating voltage (UL rating)	30 V
Shield attenuation	55 dB at 30–600 MHz
Min. bending radius, once only	5 x cable diameter
Sheath diameter, max.	5.8 mm
Sheath diameter, min.	5.4 mm
Electrical properties	{'PoE / PoE+': 'conforming to IEEE 802.3at', 'Test voltage: wire-wire-shield': '750 V DC, 1 min', 'Transmission rate': '10/100 MBit/s, 1000 MBit/s'}

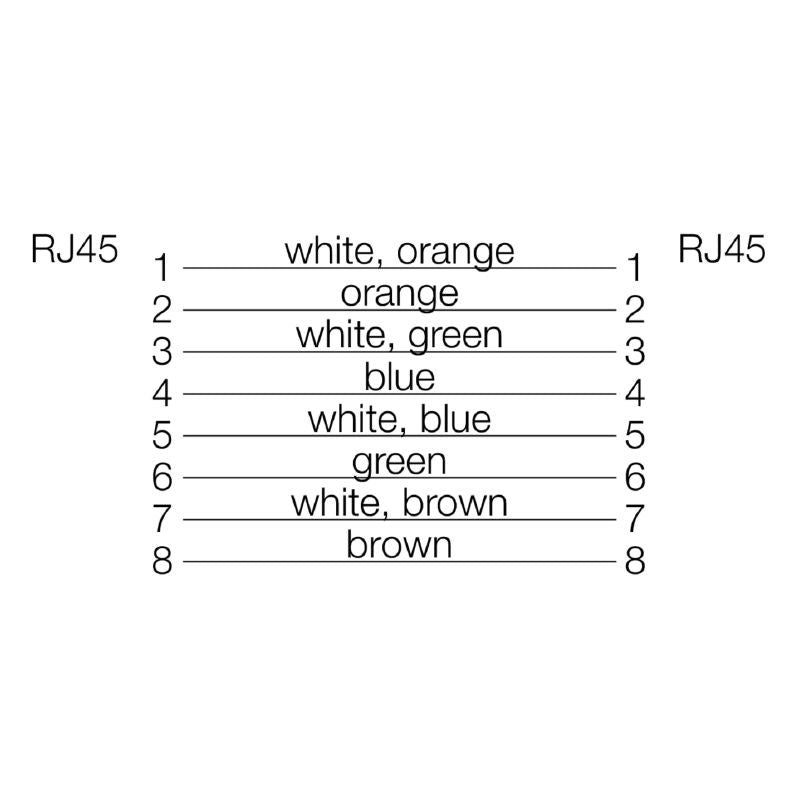

Plug configuration	RJ45, IP20, male contact, straight, plastic, shielded
