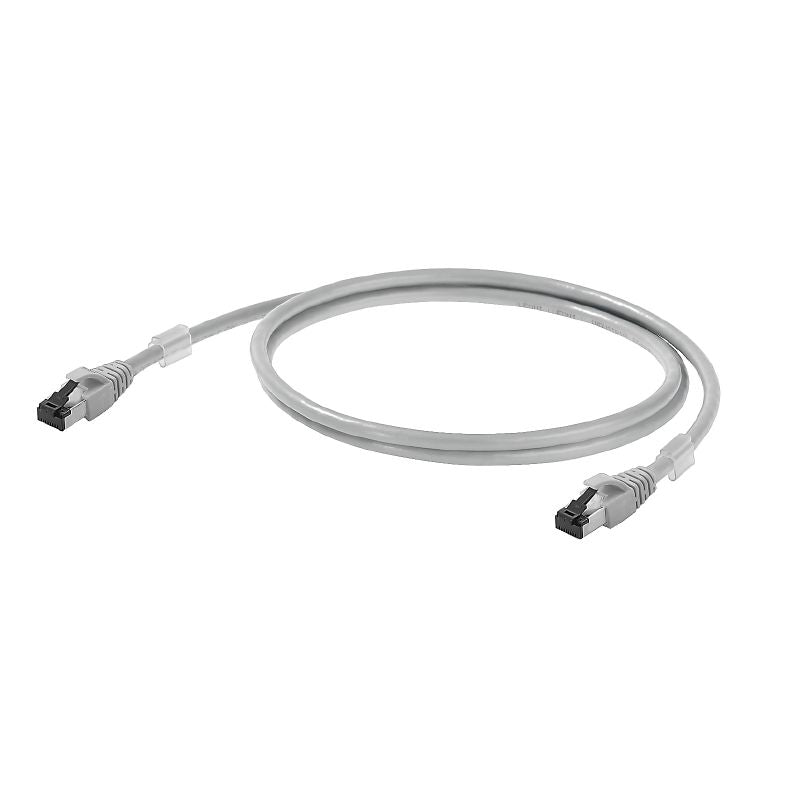

1165940005 - 0.5m Cat.6A LSZH RJ45 Patch Cable for IP 20 Use

1165940005 - 0.5m Cat.6A LSZH RJ45 Patch Cable for IP 20 Use

SKU: 1165940005 Download PDF

Variant:
  • 1165940005 - 0.5m Cat.6A LSZH RJ45 Patch Cable for IP 20 Use
Now $5.41
BEFORE   $0.00 Now $5.41
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this durable patch cable, specifically designed for RJ45 IP 20 applications Available in lengths of up to 20 meters, it meets Cat6A specifications for optimal performance over shorter distances and complies with Class EA for extended runs Featuring a low smoke and zero halogen (LSZH) sheath, this 05-meter cable ensures safety and reliability while maintaining high compatibility across various devices.

Features and Benefits:

    •Conforms to IEEE 802.3at for PoE / PoE+ applications.

    •Halogen-free according to IEC 60754-2.

    •Shielding braid made from copper wiring.

    •Low smoke and zero halogen (LSZH) material sheath.

    •Minimizes flame spread as per IEC standards.

Specifications:

 Length 0.5 m
 Length (inches) 19.685 inch
 Net weight 29 g
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
 Installation temperature 0 °C...50 °C
 Current-carrying capacity at 50 °C 1 A
 Application-specific communication cable facilities ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007
 Connector standard IEC 60603-7-51
 Arrangement of wire cores Twisted pair

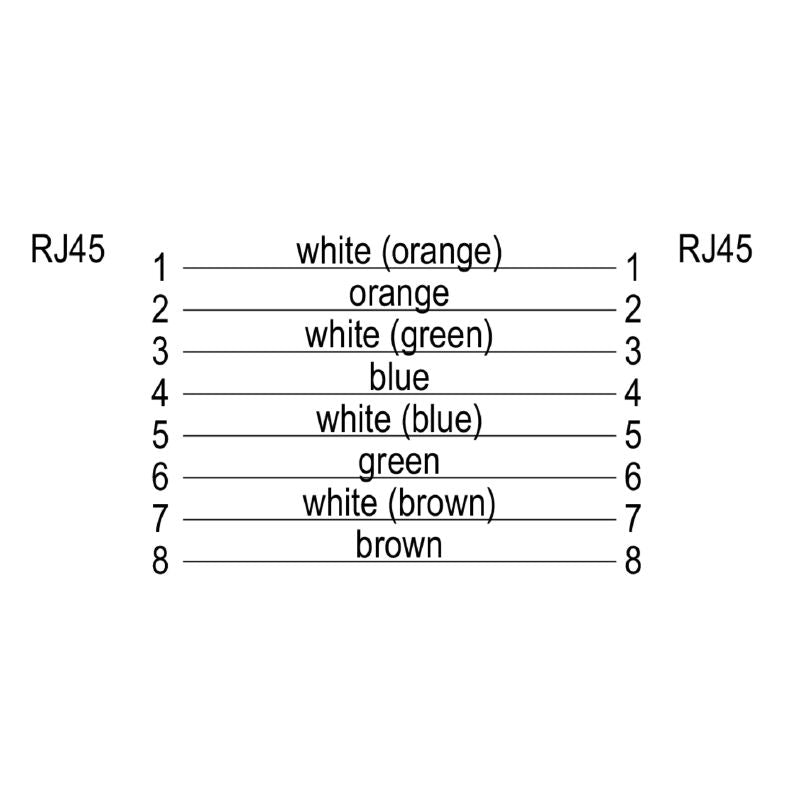

 Colour sequence or wires - wire pairs white - blue, white - orange, white - green, white - brown
 Complete shielding Shielding braid made from copper wiring
 Cross-section 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Insulation cross-section 1.04 mm
 Material sheath LSZH
 Number of wires 8
 Overlap of shielding braid 60 %
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Sheathing colour grey
 Shielding S/FTP
 Strands 7
 Wire pair shielding Aluminium foil
 Capacity at 1 kHz 46 nF/km
 Category <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Coupling attenuation up to 1000 MHz 80 dB
 Coupling resistance at 10 MHz / m 5 mΩ
 Delay skew 2.5 ns/100m
 Operating voltage 50 V DC
 Operating voltage (UL rating) 30 V AC / 42.4 V DC
 Resistance differential 5 %
 Separating class according to EN 50174-2 d
 Test voltage: wire-wire-shield 2.5 kV / DC for 2 sec
 Transmission rate 10 Gbit/s
