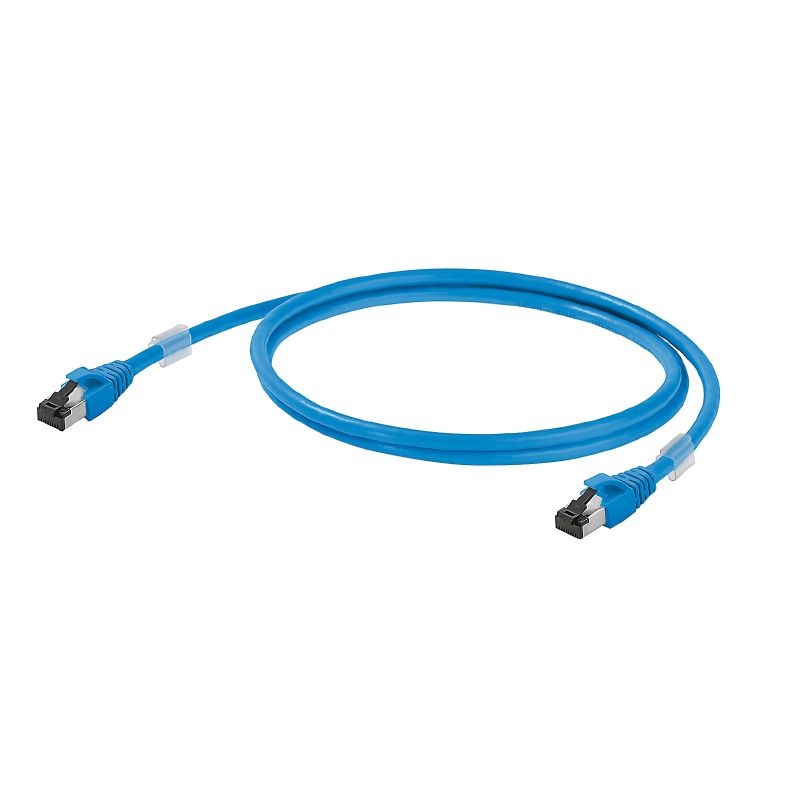

1165900045 - 4.5m LSZH RJ45 IP 20 Patch Cable, Cat.6A

1165900045 - 4.5m LSZH RJ45 IP 20 Patch Cable, Cat.6A

SKU: 1165900045   Download PDF

Select a Variant:
  • 1165900045 - 4.5m LSZH RJ45 IP 20 Patch Cable, Cat.6A
Qty:
Now $14.34   Web pricing policy
BEFORE   $0.00 Now $14.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a reliable patch cable specifically crafted for RJ45 IP 20 connections This cable meets the Cat6A standards for lengths under 20 meters and adheres to Class EA guidelines for longer runs, complying with ISO/IEC 11801 2010 specifications Measuring 45 meters in length, this LSZH (Low Smoke Zero Halogen) cable weighs just 52 grams and is built to perform within a temperature range of -20 °C to 60 °C, making it a versatile choice for your networking needs.

Features and Benefits:

    •RoHS compliant.

    •Halogen-free.

    •Conforming to IEEE 802.3at for PoE / PoE+.

    •Twisted pair construction.

    •Complete shielding with copper braiding.

Specifications:

 Length 4.5 m
 Operating temperature -20 °C to 60 °C
 Construction type Twisted pair
 Number of wires 8
 Cross-section 4*2*AWG 27/7 - 4*2*0.1 mm²
 Insulation PE
 Insulation cross-section 1.04 mm
 Sheath diameter (max) 5.9 mm
 Sheath diameter (min) 5.5 mm
 Current-carrying capacity at 50 °C 1 A
 Operating voltage 50 V DC
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 2.5 ns/100m
 Test voltage 2.5 kV / DC for 2 sec
