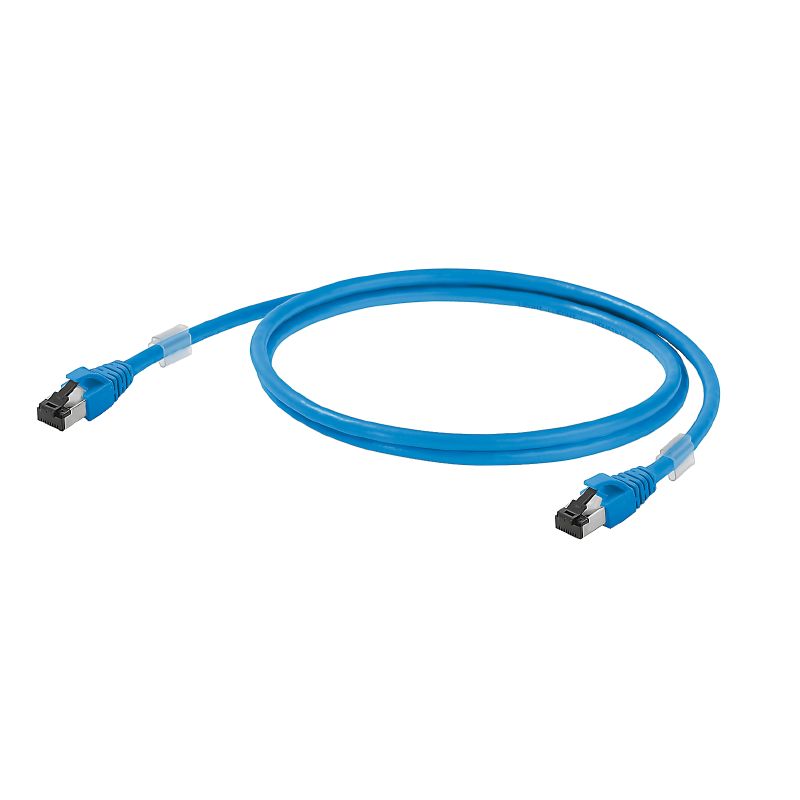

1165900040 - 4m LSZH Cat.6A RJ45 Patch Cable for IP20 Use

1165900040 - 4m LSZH Cat.6A RJ45 Patch Cable for IP20 Use

SKU: 1165900040 Download PDF

Variant:
  • 1165900040 - 4m LSZH Cat.6A RJ45 Patch Cable for IP20 Use
Now $13.25
BEFORE   $0.00 Now $13.25
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Optimize your networking connections with this 4-meter patch cable, specially designed for RJ45 interfacing and classified under IP 20 It offers exceptional performance with Cat6A compliance for runs up to 20 meters and meets Class EA standards for greater distances, following ISO/IEC 11801:2010 specifications Crafted from low smoke zero halogen (LSZH) materials, this cable ensures safety and efficiency in various applications.

Features and Benefits:

    •RoHS compliant.

    •Current capacity rated at 1 A at 50 °C.

    •Conforms to IEEE 802.3at for Power over Ethernet (PoE).

    •Twisted pair arrangement for wire cores.

    •Complete shielding using copper braiding.

    •8 wire arrangement with LSZH sheath material.

    •Mechanical properties include halogen-free material.

Specifications:

 Length 4 m
 Length (inches) 157.48 inch
 Storage temperature -20 °C to 60 °C
 Operating temperature -20 °C to 60 °C
 Installation temperature 0 °C to 50 °C
 Connector standard IEC 60603-7-51
 Cable structure Twisted pair
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Insulation PE
 Current-carrying capacity 1 A at 50 °C
 Operating voltage 50 V DC
 Resistance differential 5 %
 Test voltage 2.5 kV / DC for 2 sec
 Category <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 2.5 ns/100m
 Color blue
 Halogen halogen-free, according to IEC 60754-2
 Min. bending radius 4 x cable diameter
