1160820400 - 4m Shielded M8 Bus Line Cable with 4 Poles

1160820400 - 4m Shielded M8 Bus Line Cable with 4 Poles

SKU: SKU: 1160820400   Download PDF

Select a Variant:
  • 1160820400 - 4m Shielded M8 Bus Line Cable with 4 Poles
Qty:
Regular price Now $26.34   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $26.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

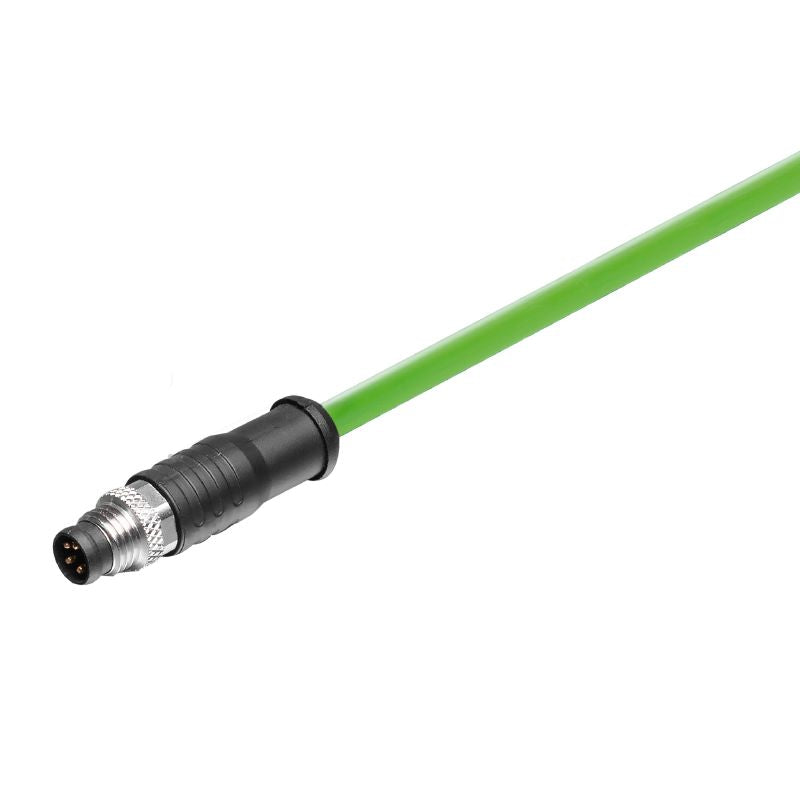

Introducing the SAIL-M8G-4S40UIE bus line cable, designed for optimal performance with a length of 4 meters This cable incorporates a 4-pole configuration and features a straight connector on one end for seamless connectivity Engineered with shielding for enhanced protection, it ensures reliable data transmission without an LED indicator The sheath is crafted from durable, halogen-free PUR material, making it a safe choice for various applications.

You can trust in its quality, as it is UL certified (certificate number E307231), ensuring compliance with industry standards.

Features and Benefits:

    •Cable length of 4 meters with a straight connector.

    •Shielded design for enhanced protection.

    •Made with halogen-free materials.

Specifications:

 Approvals ROHS compliant
 Acceleration 5 m/s²
 Bending cycles 5 million
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Core cross-section 0.15 mm²
 Outer diameter 4.8 mm ± 0.3 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP67
 Temperature range, stationary -40...80 °C
 Threaded ring material Brass, nickel-plated
 Weight 164 g
