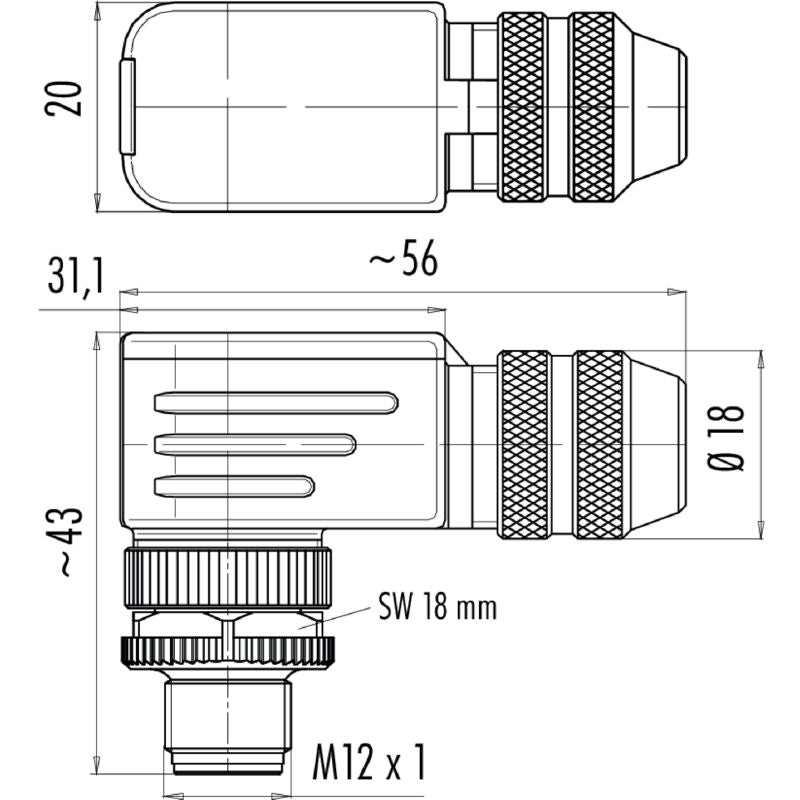

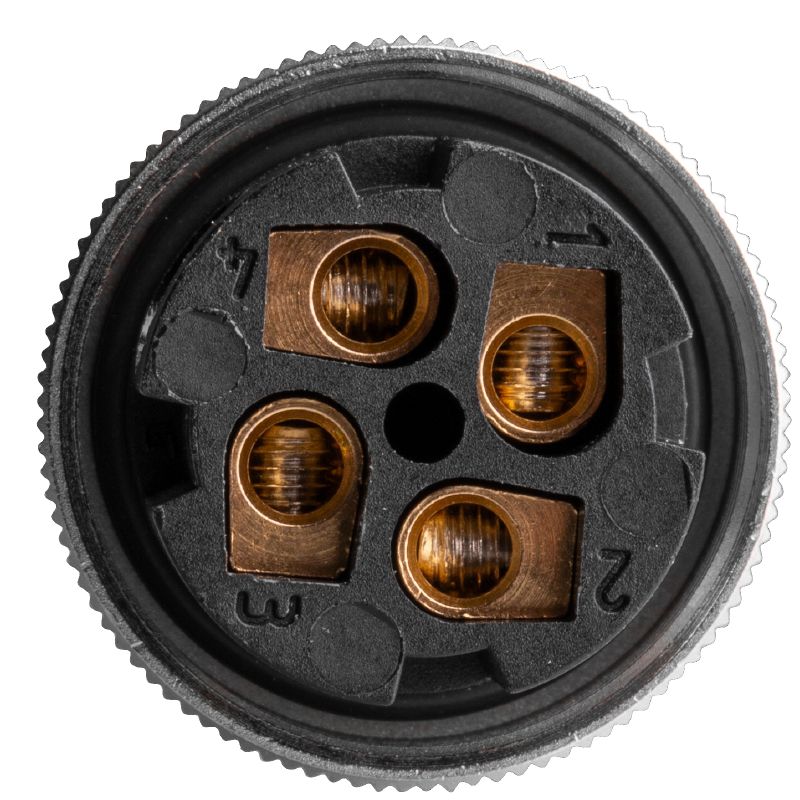

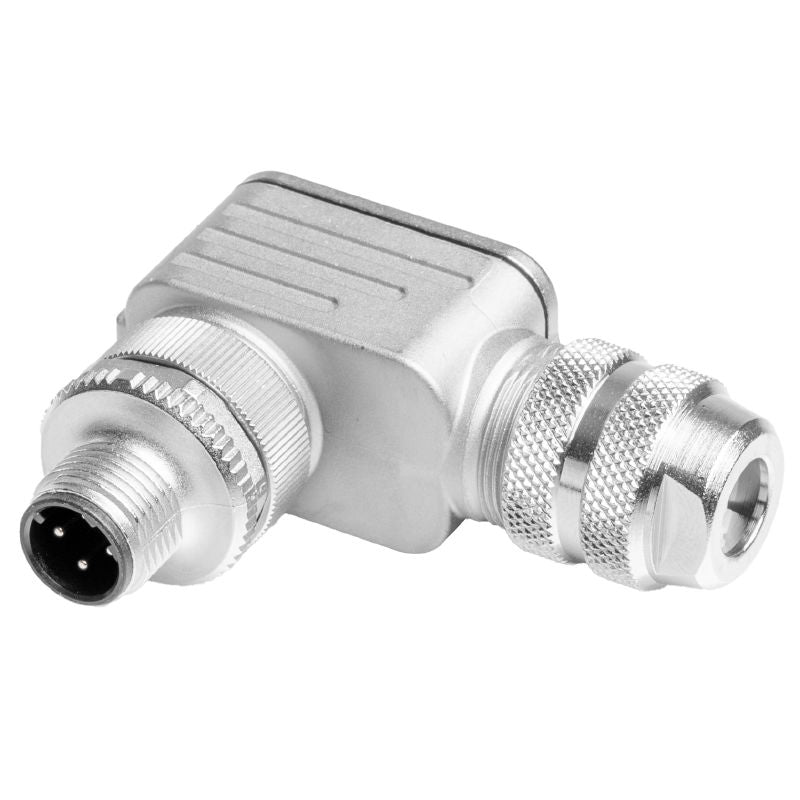

1160550000 - Durable M12 Connector, IP67, Male, 6-8mm Cable Support

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a durable and reliable M12 connector that is perfect for a wide range of applications This field-attachable connector features a male contact with a gold-plated surface for optimal conductivity and is made from high-quality CuZn material It accommodates cables with diameters between 6 mm and 8 mm and supports conductor cross-sections of up to 075 mm² With an impressive IP67 rating, it offers excellent protection against dust and water infiltration, making it highly resilient.

Capable of handling a nominal current of 4 A and voltage of 250 V, this connector is also RoHS compliant and designed for at least 100 plugging cycles, ensuring long-lasting performance.

Features and Benefits:

•IP67 protection degree for ingress protection.

•Gold-plated contact surface for better conductivity.

•Durable CuZn housing material.

•Can support various conductor cross-sections.

•Rated for 4 A nominal current.

•Allows for easy screw connection.

Specifications:
