1157830000 - One-Handed Cutting Tool for Cables Up to 22mm
1157830000 - One-Handed Cutting Tool for Cables Up to 22mm
SKU: SKU: 1157830000 Download PDF
- 1157830000 - One-Handed Cutting Tool for Cables Up to 22mm
- 1157830000 - One-Handed Cutting Tool for Cables Up to 22mm
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

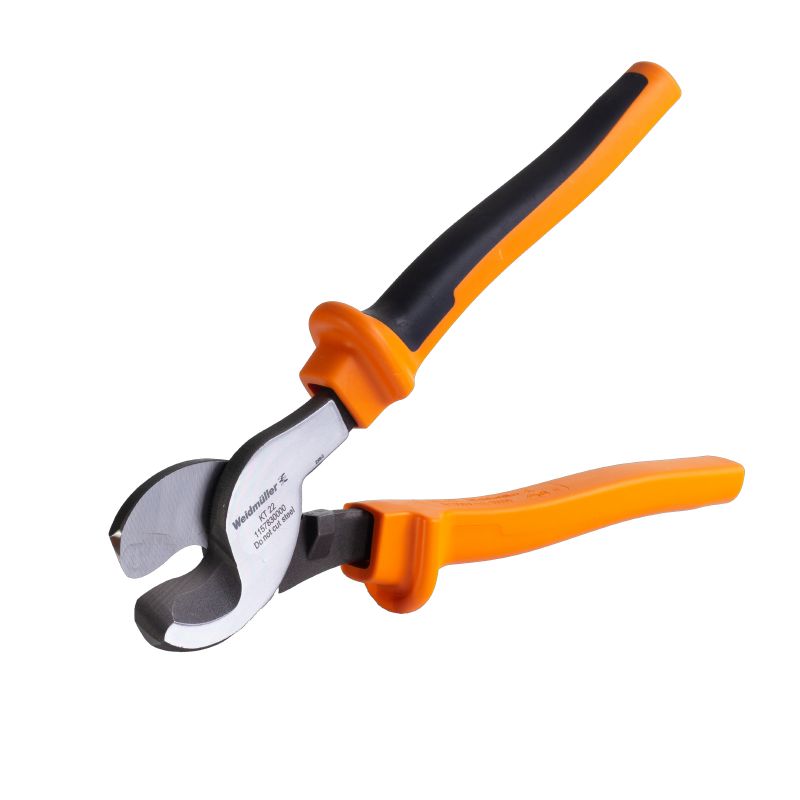

Introducing the KT 22 cutting tool, expertly crafted for effortless one-handed use This versatile device can efficiently cut cables with a diameter of up to 22 mm, accommodating flexible, solid, and stranded cables made from copper or aluminum Each cable type has its own maximum cutting capacity Designed to deliver reliable performance, the KT 22 operates at a voltage of 1,000 V, making it an essential tool for your cutting needs.
Features and Benefits:
•One-hand mechanical operation.
•Handles up to 22 mm outside diameter cables.
•Suitable for cutting flexible copper cables up to 70 mm² and solid cables up to 150 mm².
•Cutting copper and aluminum cables in electrical installations.
Specifications:
| Depth | 31 mm |
| Height | 71.5 mm |
| Width | 249 mm |
| Length | 71.5 mm |
| Net weight | 494.5 g |
| Operating voltage | 1,000 V |
| Copper cable - flexible, max. | 70 mm² |
| Copper cable - solid, max. | 150 mm² |
| Copper cable - stranded, max. | 95 mm² |
| Single-core aluminium cable, max. | 120 mm² |
| Stranded aluminium cable, max | 95 mm² |
| Stranded aluminium cable, max. diameter | 13 mm |
