1150631000 - 10m Shielded PUR Cable with 4 Poles, No Connector

SKU: SKU: 1150631000

Select a Variant:

1150631000 - 10m Shielded PUR Cable with 4 Poles, No Connector

SET THE QTY:

Now $14.76 Web pricing policy

~~BEFORE $0.00~~ Now $14.76 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Reviews

Product Information

Description:

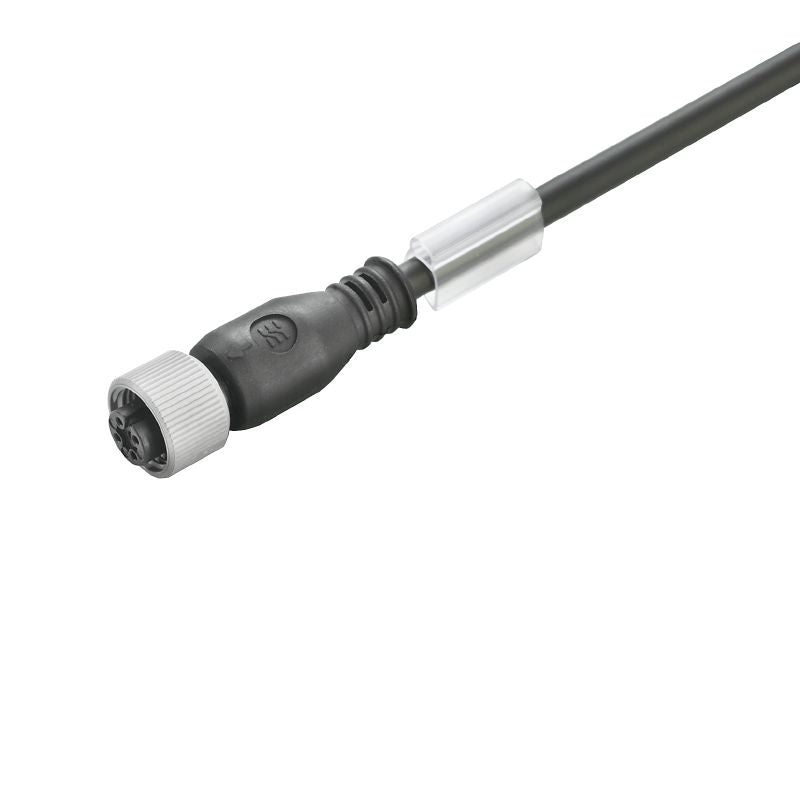

Enhance your projects with this specialized sensor/actuator cable, designed with precision and performance in mind Measuring 10 meters in length, this cable features a straight female socket and is equipped with four poles Its robust construction from PUR material guarantees durability, while the halogen-free design adds to its safety The cable is shielded for optimal protection, though it does not include an LED.

Perfect for various applications, this reliable component is a practical addition to your setup.

Features and Benefits:

•Halogen-free material.

•Hydrolysis and microbe resistant.

•LABS-free.

•Many environmental compliance standards met.

Specifications:

Acceleration:	5 m/s²
Bending cycles:	12 Mio
Bending cycles at torsion:	> 5 Mio.
Bending radius, min., moving:	10 x cable diameter
Bending radius, min., stationary:	5 x cable diameter
Cable length:	10 m
Colour coding:	brown, blue, black
Configurable cable length:	No
Core cross-section:	0.34 mm²
Core in accordance with UL AWM style:	10493 (80 °C / 300 V)
Halogen:	No
Insulation:	PP
Length of torsion:	1 m
Number of poles:	4
Outer cladding in accordance with UL AWM style:	20549 (80 °C / 300 V)
Outside diameter:	4.3 mm ± 0.2 mm
Resistance to oils:	in accordance with IEC 60811:404
Resistance to spread of flame:	In accordance with UL1581 UL / CUL FT2, in accordance with IEC 60332-2-2
Sheath material:	PUR
Sheathing colour:	black
Shielded:	No
Speed:	5 m/s
Suitable for cable carriers:	Yes
Temperature range, moving:	-25...80 °C
Temperature range, stationary:	-40...80 °C
Torsion resistance:	360 °/m
Plugging cycles:	≥ 100
Pollution severity:	3
Protection degree:	IP65, IP66, IP67, IP68 when screwed in
Temperature range of housing:	-25…+85 °C
Tightening torque:	M12 (plastic nut): 0.6 - 0.8 Nm
Electrical properties:	{'Insulation resistance:': '10^8 Ω', 'Nominal voltage:': '250 V'}
General standards:	{'Certificate no. (cULus):': 'E307231', 'Connector standard:': 'IEC 61076-2-101'}
