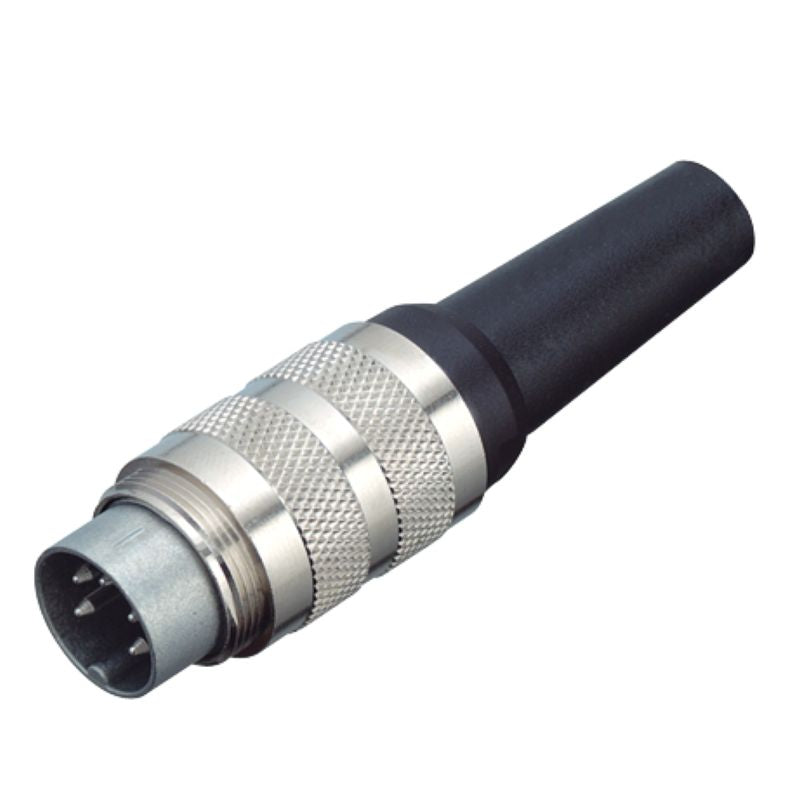

1118010000 - M16 Field Attachable Connector, 31g, Max 8mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The SAIS-M16-7/9 is a versatile field attachable connector tailored for M16 applications, weighing in at just 31 grams This connector adheres to RoHS standards and is designed for cable diameters between 6 mm and 8 mm With no coding, it supports conductor cross-sections from 014 mm² to 075 mm², making it adaptable to various pole configurations The connector features a male contact with a silver contact surface for efficient connectivity.

Crafted from durable PA plastic, it boasts an impressive insulation resistance of 10^8 Ω, a nominal current capacity of 5 A, and a voltage rating of 125 V This connector variant includes 7 poles and is engineered for at least 500 plugging cycles It has a pollution severity rating of 3 and protection rating of IP40, ensuring reliability in various environments With an operational temperature range from -40°C to +85°C, the connector’s threaded ring is made of sturdy diecast zinc, while employing a reliable solder connection type.

Features and Benefits:

•RoHS compliant.

•Maximum cable diameter of 8 mm and minimum of 6 mm.

•Conductor cross-section between 0.14 mm² and 0.75 mm².

•Male gender of contact.

•Insulation resistance of 10^8 Ω.

•Rated current varies depending on pole configuration.

•Protection degree IP40.

•Threaded ring made of diecast zinc.

•Temperature range of -40 to +85 °C.

Specifications:
