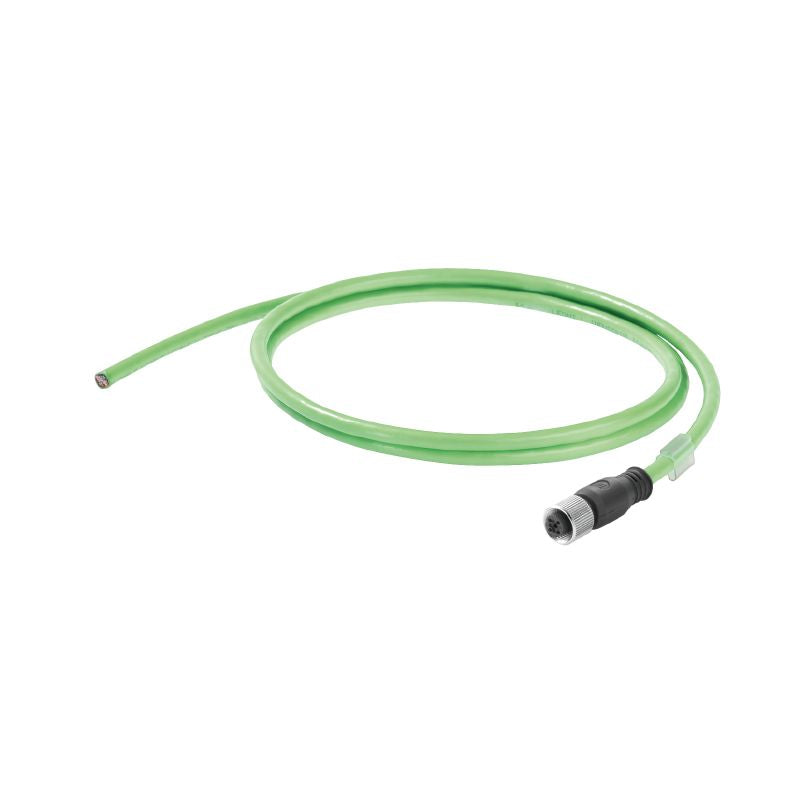

1111440050 - 5m PROFINET M12 D-Code Cable, IP67, Durable PUR

SKU: SKU: 1111440050 Download PDF

Select a Variant:

1111440050 - 5m PROFINET M12 D-Code Cable, IP67, Durable PUR

SET THE QTY:

Now $48.38 Web pricing policy

~~BEFORE $0.00~~ Now $48.38 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your connectivity with this specialized dragline cable, perfect for PROFINET applications It features an M12 D-code straight socket with IP 67 protection, ensuring robust performance and reliability Compliant with industry standards, it supports both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) systems Crafted from durable PUR material, this cable measures 5 meters in length, making it versatile for a variety of installations.

Features and Benefits:

•Suitable for a broad range of applications.

•IP 67 protection ensuring durability in harsh environments.

•Excellent abrasion resistance.

•Halogen-free construction adhering to IEC standards.

•Compatible with RoHS regulations.

Specifications:

Length	5 m
Diameter of inner sheathing	3.9 mm
Cross-section	4*AWG 22/7 - 0.32 mm²
Operating voltage	600 V
Capacity at 1 kHz	52 nF/km
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Loop resistance	120 Ω/km
Resistance to oils	in accordance with IEC 60811-2-1
Resistance to spread of flame	in accordance with IEC 60332-1
Cable structure	Star-quad
Complete shielding	Aluminium foil
Insulation	PE
Material sheath	PUR
Signal propagation time	5.3 ns/m
Test voltage	2000 V eff, 50 Hz, 1 min
Max sheath diameter	6.7 mm
Min sheath diameter	6.3 mm
Min bending radius	5 x cable diameter
Pulling force	≤ 150 N
