1093260500 - 5m PUR Sensor/Actuator Cable, M12/M8, 3-Pole Configuration

1093260500 - 5m PUR Sensor/Actuator Cable, M12/M8, 3-Pole Configuration

SKU: SKU: 1093260500   Download PDF

Select a Variant:
  • 1093260500 - 5m PUR Sensor/Actuator Cable, M12/M8, 3-Pole Configuration
Qty:
Regular price Now $26.82   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $26.82 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

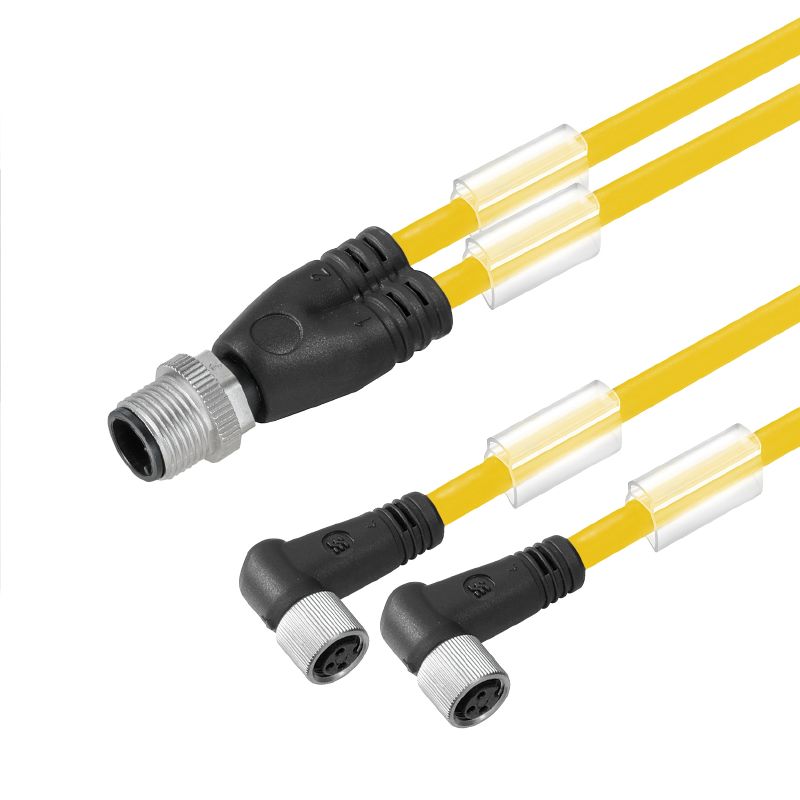

Introducing an advanced sensor and actuator line designed for seamless connectivity through M12/M8 configurations featuring three poles This robust cable spans 5 meters in length and utilizes twin cabling with straight pin connections that lead to two conveniently angled sockets The construction of this cable is made from halogen-free PUR material, ensuring safety and reliability, while lacking additional shielding or LEDs for straightforward functionality.

Features and Benefits:

    •Compliant with ROHS regulations with exemptions.

    •Hydrolysis and microbe resistant.

    •Gold-plated contact surface.

    •IP67, IP68 when secured, IP65, IP66 protection degree.

    •Can operate temperatures from -25 to 80 °C while moving and -40 to 80 °C in stationary conditions.

Specifications:

 Cable length 5 m
 Core cross-section 0.25 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Bending cycles 5 Mio
 Temperature range of housing -25…+85 °C
 Outer diameter 4.1 mm ± 0.2 mm
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP67, IP68 when screwed in
