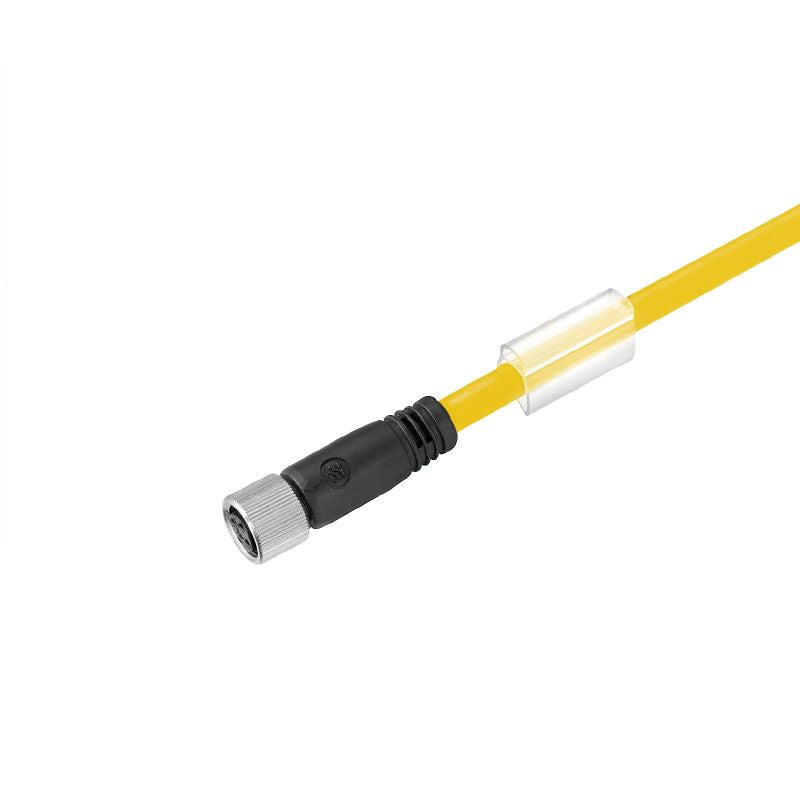

1093190150 - 1.5m PUR Sensor Actuator Cable with 3 Poles

1093190150 - 1.5m PUR Sensor Actuator Cable with 3 Poles

SKU: SKU: 1093190150

Variant:
  • 1093190150 - 1.5m PUR Sensor Actuator Cable with 3 Poles
Regular price Now $6.52
Regular price BEFORE   $0.00 Sale price Now $6.52
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliability of this sensor/actuator component, featuring a straight female socket that lacks connectors This item boasts three poles and a generous length of 15 meters It is designed without shielding and does not include an LED indicator Constructed from PUR, the sheath material is halogen-free, and the product meets RoHS compliance standards Weighing just 38 grams, this component is an efficient choice for various applications.

Features and Benefits:

    •Compliant with RoHS.

    •Hydrolysis and microbe resistant.

    •A-coded connection.

    •Gold-plated contact surface.

    •Suitable for cable carriers.

Specifications:

 Cable Length 1.5 m
 Number of Poles 3
 Outside Diameter 4.1 mm ± 0.2 mm
 Nominal Current 4 A
 Nominal Voltage 60 V
 Protection Degree IP65, IP66, IP67, IP68, IP69
 Temperature Range, Moving -25...80 °C
 Temperature Range, Stationary -40...80 °C
 Bending Cycles 5 Mio
 Resistance to Oils in accordance with IEC 60811:404
 Insulation Resistance 10^8 Ω
