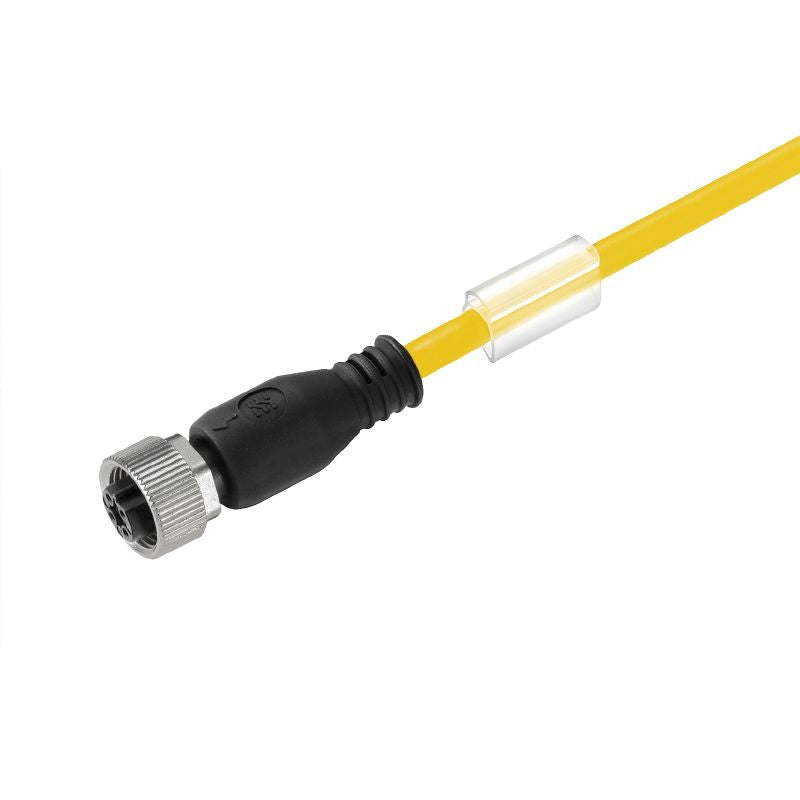

1092900500 - 5m PUR Sheath Sensor/Actuator Cable with 2 Poles

1092900500 - 5m PUR Sheath Sensor/Actuator Cable with 2 Poles

SKU: SKU: 1092900500

Variant:
  • 1092900500 - 5m PUR Sheath Sensor/Actuator Cable with 2 Poles
Regular price Now $11.33
Regular price BEFORE   $0.00 Sale price Now $11.33
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this 5-meter sensor/actuator product, designed with a female socket configuration and an open end without a connector This model includes 2 poles and is crafted from halogen-free PUR sheath material, ensuring safety and durability With a straightforward design that is not shielded and lacks LED components, it offers a reliable option for your connectivity needs.

Features and Benefits:

    •Sensor/actuator line with 2 poles.

    •Length of 5 meters.

    •Female socket configuration.

    •Built with PUR sheath material.

    •Not shielded and no LED.

Specifications:

 Cable length 5 m
 Outside diameter 4.3 mm ± 0.2 mm
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Contact surface Gold-plated
 Bending cycles 5 Mio
 Accelaration 5 m/s²
 Speed 5 m/s
 Threaded ring material Brass, nickel-plated
