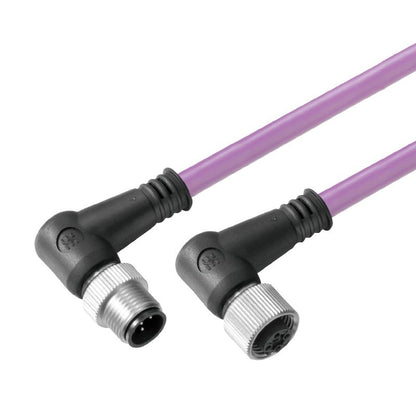

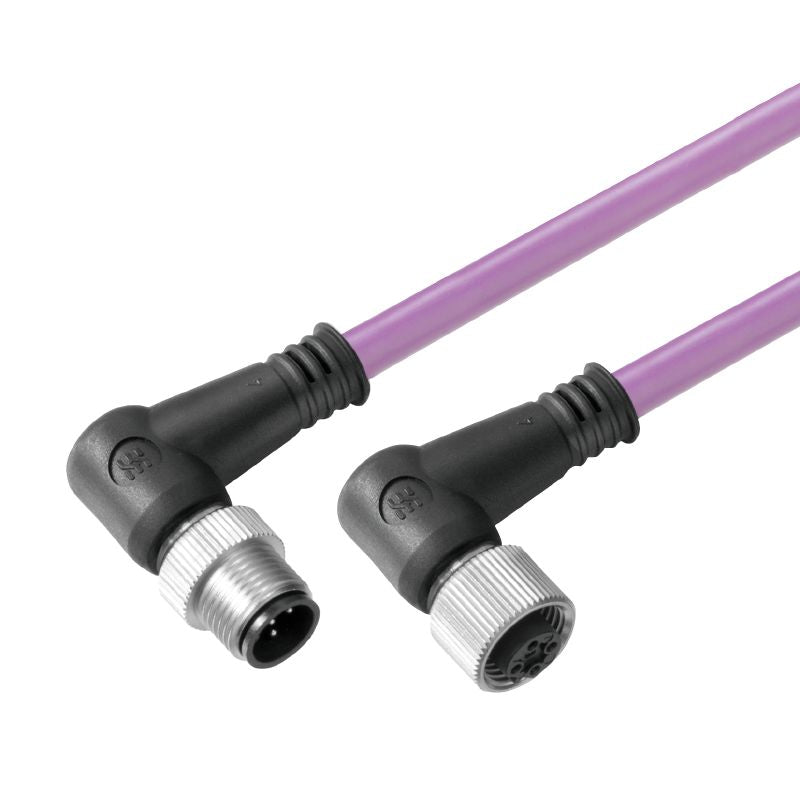

1062330150 - 1.5m Shielded M12 Connecting Cable, Halogen-Free Sheath

1062330150 - 1.5m Shielded M12 Connecting Cable, Halogen-Free Sheath

SKU: SKU: 1062330150 Download PDF

Variant:
  • 1062330150 - 1.5m Shielded M12 Connecting Cable, Halogen-Free Sheath
Regular price Now $46.44
Regular price BEFORE   $0.00 Sale price Now $46.44
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure strong connectivity with this reliable M12 to M12 connecting line, perfect for a variety of applications Measuring 15 meters in length, it features dual poles for effective performance Shielded for enhanced protection, this cable does not have LED indicators Constructed with a halogen-free PUR sheath, it is safe for a wide range of uses.

Features and Benefits:

    •Cable length of 1.5 m.

    •Designed for use in challenging environments with its IP67 protection degree.

    •No halogen content for safer environmental compliance.

    •Configurable cable length is not available.

Specifications:

 Number of poles 2
 Core cross-section AWG AWG 24
 Outer diameter 7.8 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 250 V
 Plugging cycles ≥ 100
 Protection degree IP67
 Temperature range, moving -20...60 °C
 Temperature range, stationary -40...70 °C
 Environmental compliance RoHS compliant with exemption
