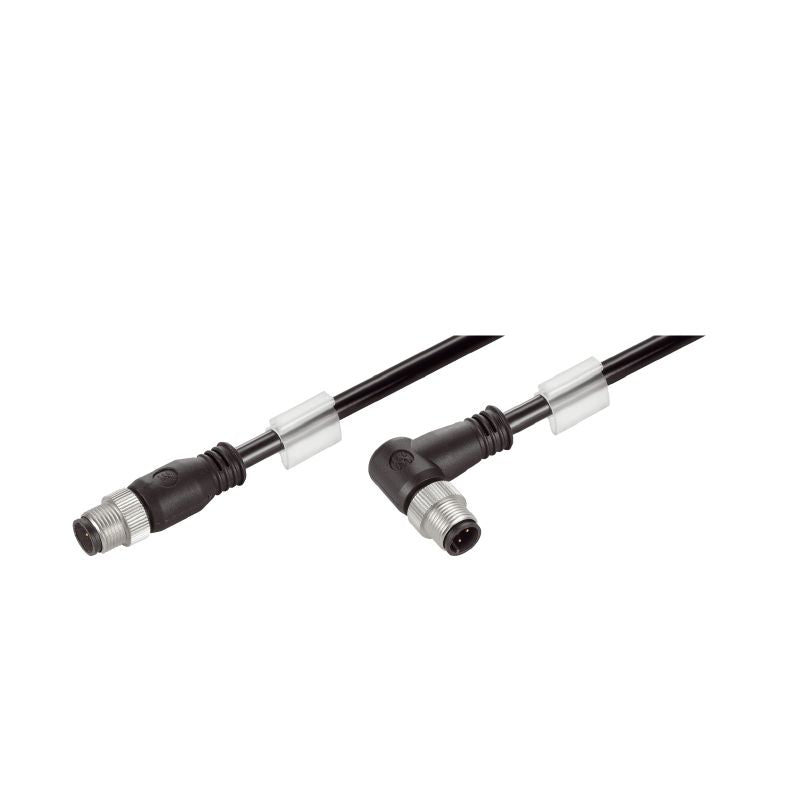

1059940015 - 1.5m M12 D-Code System Cable, IP67 Rated Connections

1059940015 - 1.5m M12 D-Code System Cable, IP67 Rated Connections

SKU: 1059940015   Download PDF

Select a Variant:
  • 1059940015 - 1.5m M12 D-Code System Cable, IP67 Rated Connections
Qty:
Now $62.40   Web pricing policy
BEFORE   $0.00 Now $62.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a robust system cable equipped with M12 D-code connectors, offering both straight and angled pins, all while maintaining an impressive IP 67 rating This cable adheres to Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications, ensuring reliable performance With a generous length of 15 meters, it's built from Radox GKW S material, making it ideal for challenging environments and diverse applications.

Features and Benefits:

    •IP67 rated connectors for protection against dust and water.

    •Suitable for a variety of applications due to its compliance with multiple standards.

    •Halogen-free and impervious to smoke, ensuring safety in case of fire.

Specifications:

 Length 1.5 m
 Connector standard IEC 61076-2-101
 Cross-section 2*2*AWG 22/7 - 2*2*0.36 mm²
 Material sheath Radox GKW S
 Sheath diameter, max. 7.55 mm
 Sheath diameter, min. 6.95 mm
 Shielding SF/UTP
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Storage temperature -40 °C...90 °C
 Operating temperature -40 °C...90 °C
 Installation temperature -25 °C...90 °C
