1059760100 - 10m PROFINET Dragline Cable with M12 D-Code & RJ45 Connector

1059760100 - 10m PROFINET Dragline Cable with M12 D-Code & RJ45 Connector

SKU: 1059760100 Download PDF

Variant:
  • 1059760100 - 10m PROFINET Dragline Cable with M12 D-Code & RJ45 Connector
Now $102.51
BEFORE   $0.00 Now $102.51
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

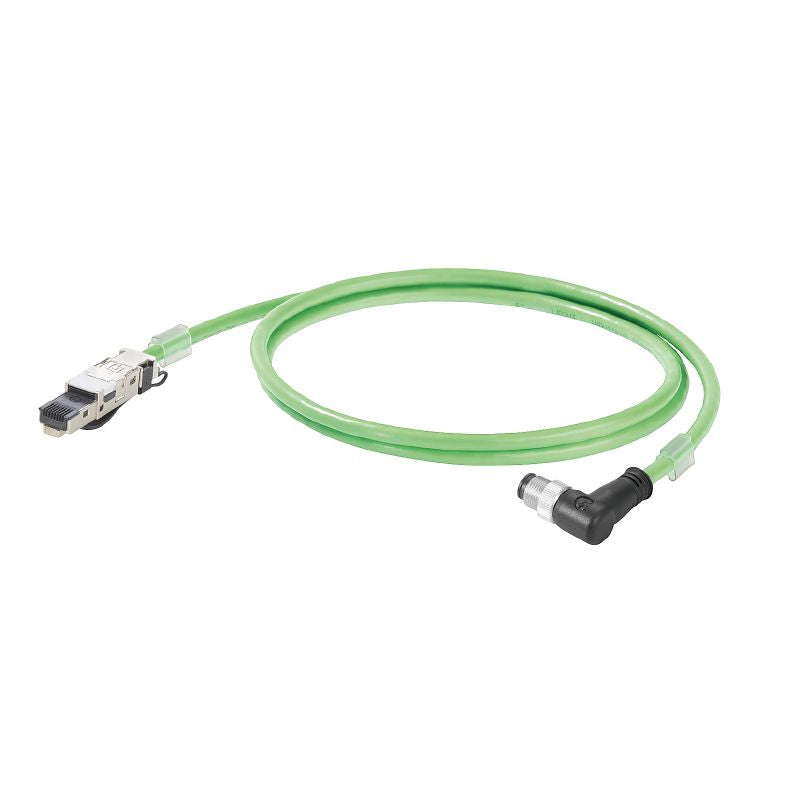

Elevate your connectivity with this specialized dragline cable, crafted for seamless PROFINET applications It features an M12 D-code angled pin and an RJ45 IP 20 connector, ensuring compatibility with high-performance networking standards Measuring 10 meters in length, this cable is constructed from durable PUR material and complies with Cat 5 specifications as per ISO/IEC 11801 and TIA T568-B It's an ideal solution for your industrial networking needs.

Features and Benefits:

    •Compliant with RoHS with an exemption specified.

    •Halogen-free, following IEC 60754-2 standards.

    •Resistant to oils as per IEC 60811-2-1.

    •UV-resistant.

    •Silicone-free.

    •Very good abrasion resistance.

    •Supports high-speed transmission with a capacity of 52 nF/km at 1 kHz.

Specifications:

 Length 10 m
 Diameter of inner sheathing 3.9 mm
 Operating voltage (UL rating) 600 V
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Loop resistance 120 Ω/km
 Signal propagation time 5.3 ns/m
 Min. bending radius, once only 5 x cable diameter
 Vibration resistance 4 m/s²
 Pulling force ≤ 150 N
 Complete shielding Aluminium foil
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Resistance to spread of flame in accordance with IEC 60332-1
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
