04953-142 Cable Operated Switches with Single Flag Indicators or Latch Plates

04953-142 Cable Operated Switches with Single Flag Indicators or Latch Plates

SKU: 04953142   Download PDF

Qty:
Now $1,009.94   Web pricing policy
BEFORE   Now $1,009.94 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

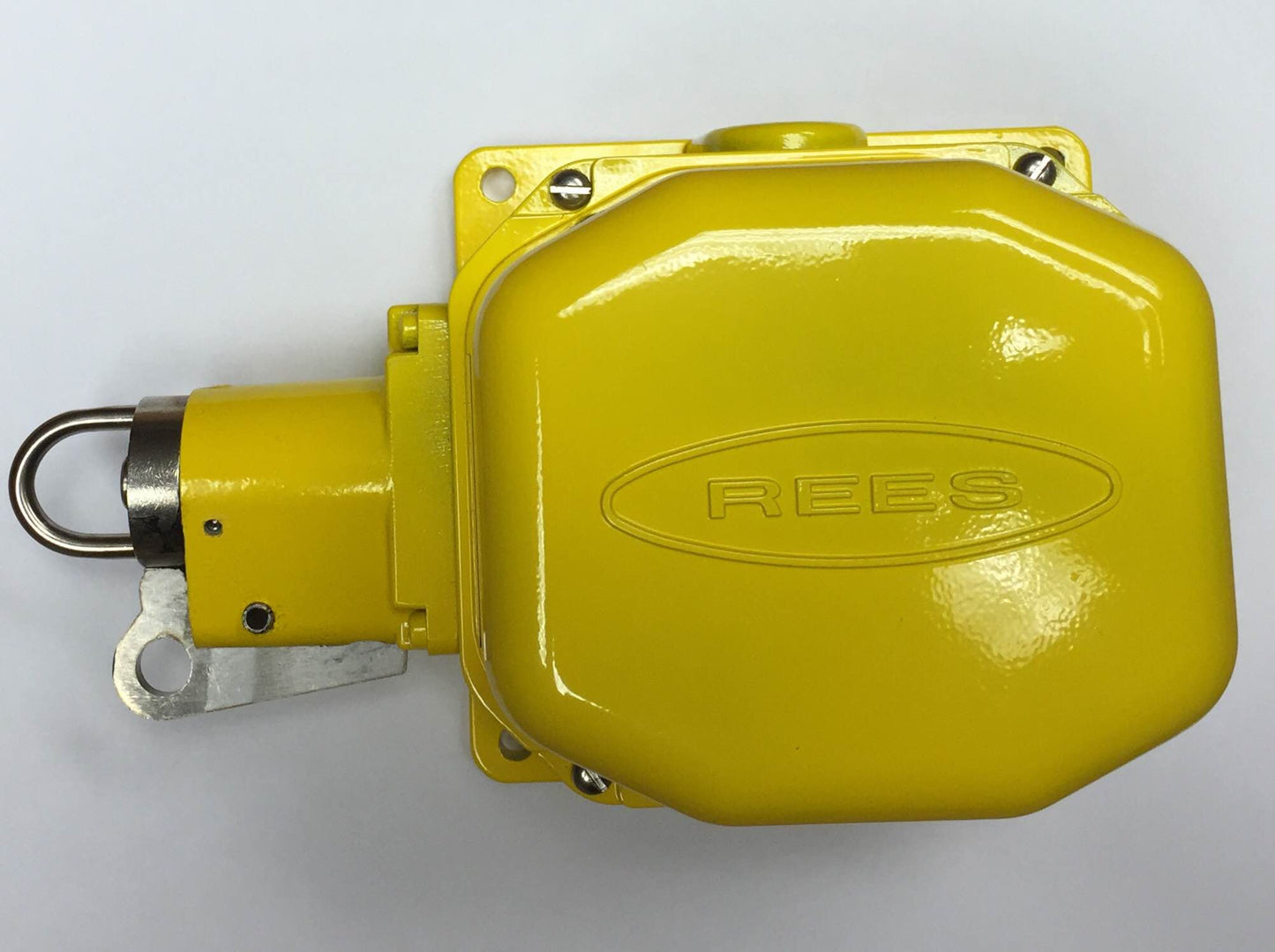

The Cable Operated Switch with Single Flag Indicators or Latch Plates is designed specifically for emergency stop applications and ordinary circuit control Featuring 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, this switch is constructed from high-quality die-cast aluminum and is powder-coated in yellow for durability The latch plate engages when the switch is tripped, and it can be reset by pulling on a rope or cable attached to the latch plate.

Features and Benefits:

    •Competent for use in Emergency Stop applications.

    •Made from high-quality die-cast aluminum.

    •Powder-coated painted yellow for durability.

    •Manual reset by pulling on an attached rope or cable.

    •Emergency Stop applications.

    •Ordinary circuit control.

Specifications:

 Trip Force per End: 25 lb
 Flag End Replaceable:
 Latch Plate: Left
 Operating Force Between 10 ft. Supports: 6 lb
 Reset Type: Manual
 Contact Arrangement: 2 NO + 2 NC (make - before - break)
 Type / Style: Switch with Latch Plates
