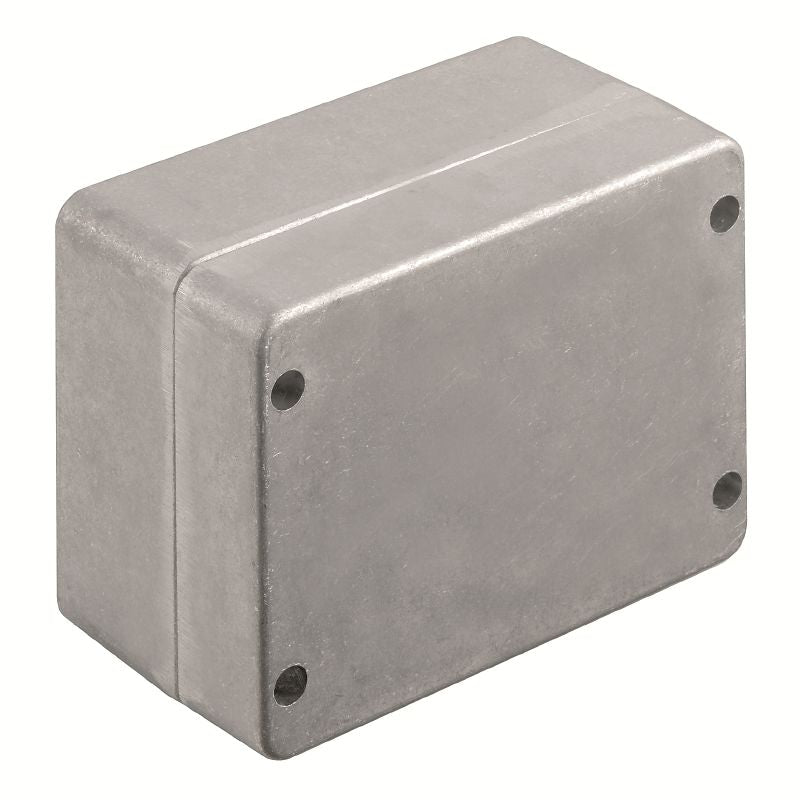

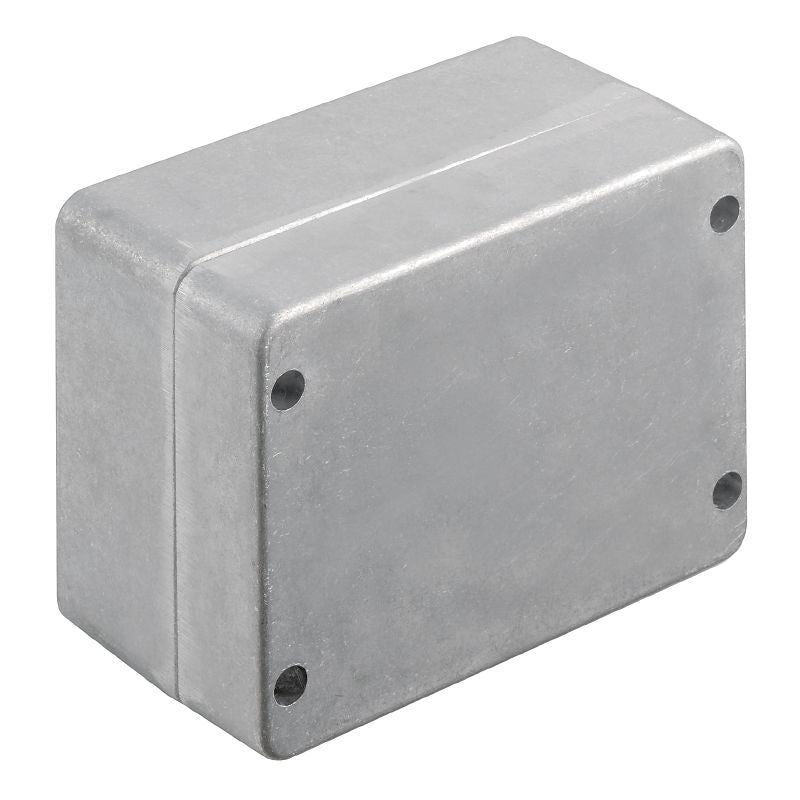

0342400000 - 130mm Aluminum Enclosure with 11 M12 Cable Glands

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

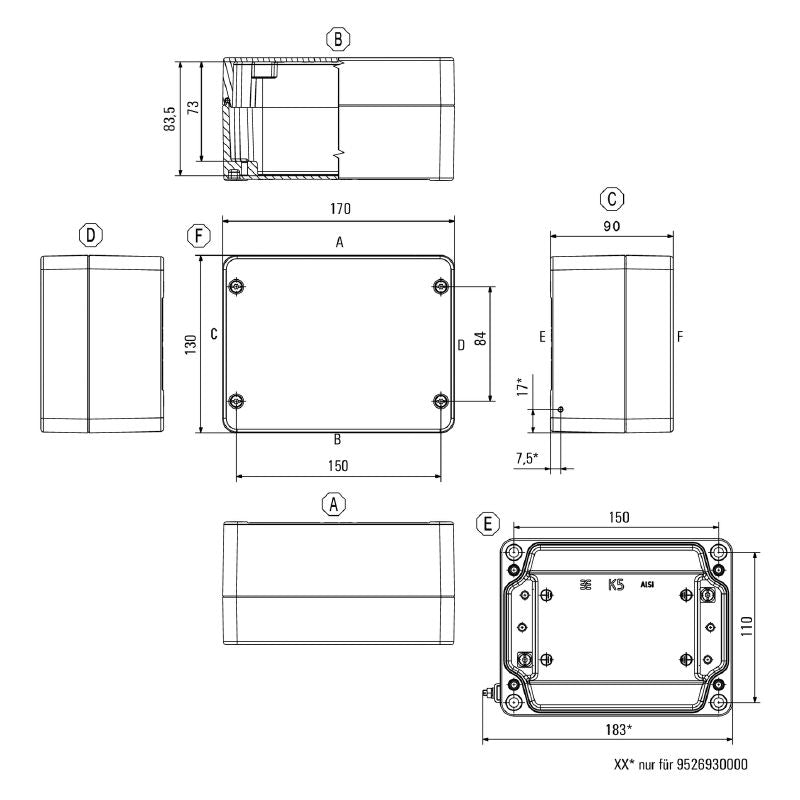

Introducing the KLIPPON K5, a strong and versatile empty enclosure crafted from untreated aluminum (AlSi12) With dimensions measuring 130 mm in height, 170 mm in width, and 90 mm in depth, this enclosure is ideal for a variety of industrial applications, including those in marine engineering, transportation, machine construction, packaging, and harbor facilities Weighing in at 1,360 grams, it is designed to function reliably in extreme temperatures, ranging from -40 °C to 80 °C.

The product is equipped with 11 M12 cable glands along with additional mounting options, offering exceptional flexibility for your installation needs.

Features and Benefits:

•RoHS compliant without exemption.

•IP68 protection class for durability against water and dust.

•Integral fixing with M5 threaded holes allows for secure installation.

•Impact resistance rated at 10 J for reliable protection.

•Surface finish is untreated for a natural look.

•Access openings with dimensions of 120.8 mm height and 160.8 mm width for easy access.

•Lid attachment secured with M5 torx stainless steel screws.

•Process industry.

•Transportation.

•Marine engineering.

•Packaging industry.

•Harbor facilities.

•Machine construction.

Specifications:
