Description:

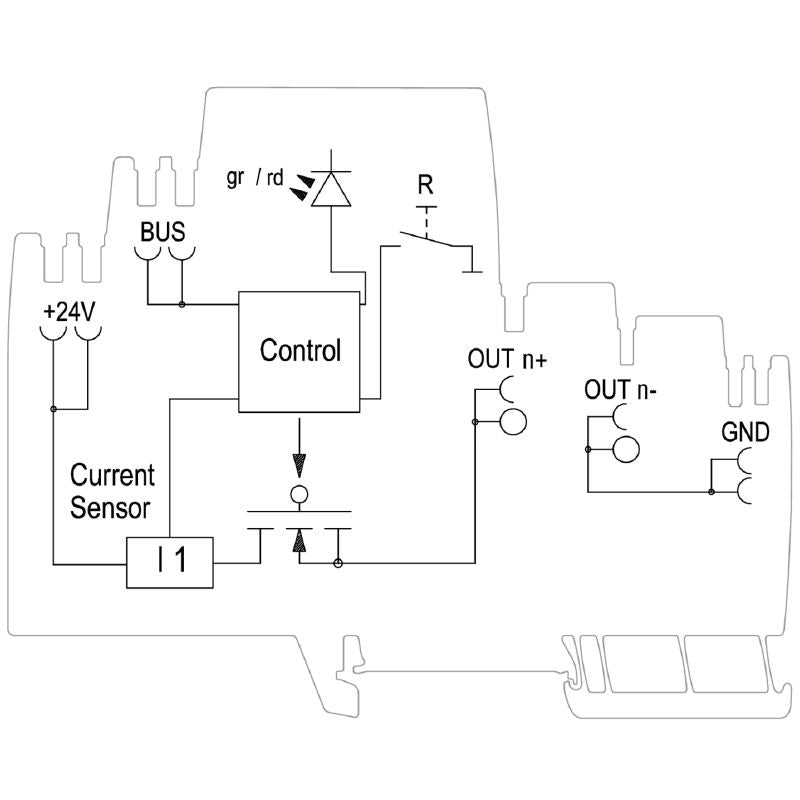

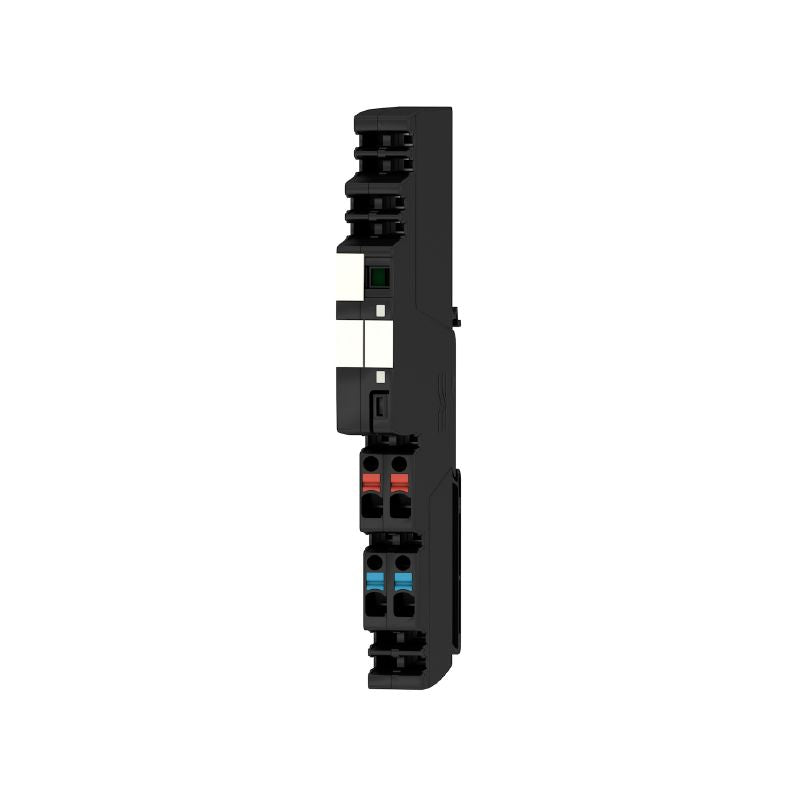

Introducing the AMG ELM-18, a sophisticated device for monitoring electronic loads, capable of managing up to 18 A at 24 V DC It adheres to significant environmental guidelines, including RoHS compliance, and boasts UL certification (certificate number E258476) With compact dimensions of 965 mm depth, 125 mm height, and 122 mm width, it is lightweight at just 60 g This model operates efficiently in temperatures ranging from -25 °C to 70 °C and can be safely stored between -40 °C and 85 °C.
When fully loaded, it consumes 30 mA of current, while idle operation uses only 25 mA The input voltage varies between 18 to 30 V DC, with a rated voltage of 24 V DC and a maximum allowable residual ripple of 100 mVpp Additionally, it allows for adjustable rated current and is compatible with various conductor sizes, accommodating a maximum of 12 AWG for solid conductors.
Features and Benefits:
•Compact size for versatile mounting.
•Easy installation with PUSH IN connection system.
•LED indicators for operational status and early warnings.
•Rated for 18 A current handling while maintaining safety.
•Compatible with a range of conductor sizes from 12 AWG to 26 AWG.
Specifications:

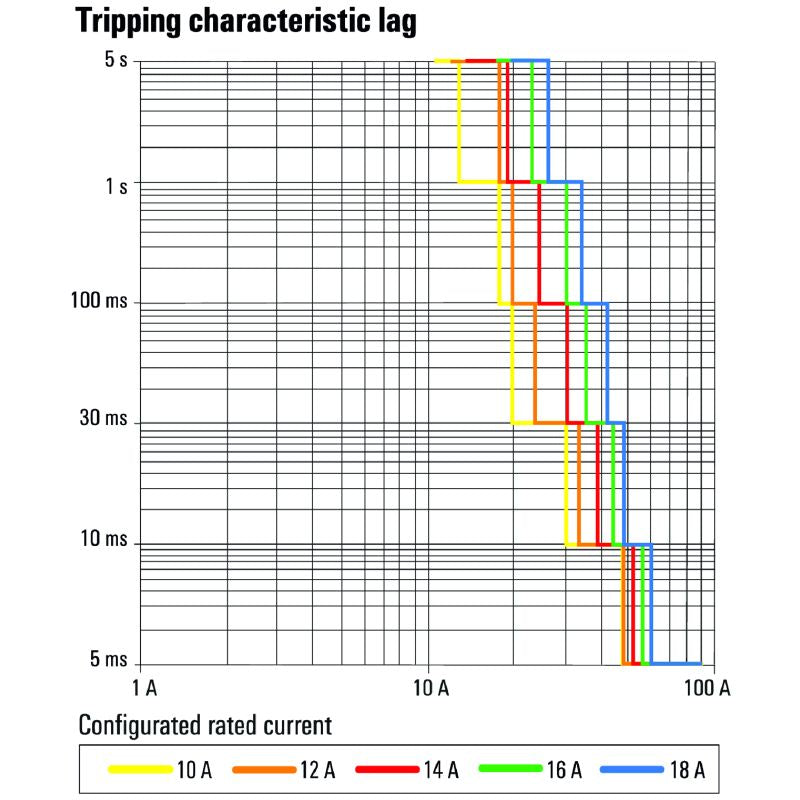

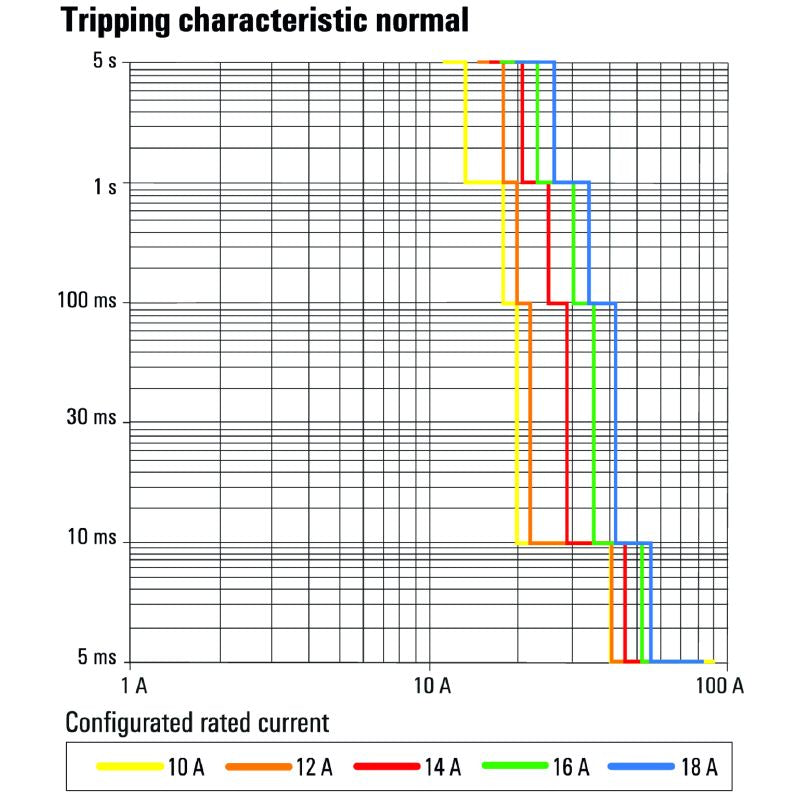

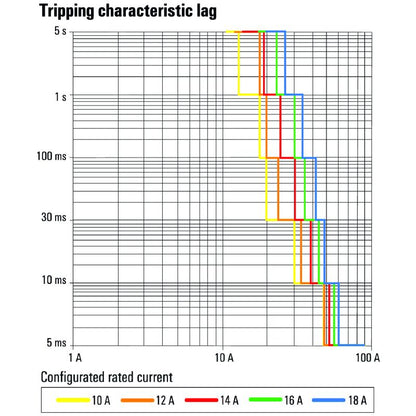

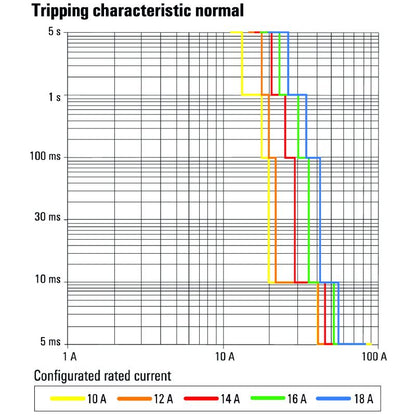

| Input Fuse (internal) | Yes |
| Surge Voltage Category | III |
| Protection Degree | IP20 |
| Rated Current | 18 A |
| Rated Input Voltage | 24 V DC |
| Current Consumption (Full Load) | 30 mA |
| Current Consumption (Idle) | 25 mA |
| Max. Admissible Residual Ripple at Input | 100 mVpp |
| Conductor Cross-Section (Flexible, Max) | 2.5 mm² |
| Conductor Cross-Section (Flexible, Min) | 0.14 mm² |
| Conductor Cross-Section (Rigid, Max) | 2.5 mm² |
| Conductor Cross-Section (Rigid, Min) | 0.14 mm² |
| Adjustable Rated Current | Yes |
| Capacitive Load | 50 mF |
| Switch-on Delay | 1 s |
| Function Key Activation Time | <3s |
| Dimensions | {'Depth': '96.5 mm', 'Height': '125 mm', 'Width': '12.2 mm'} |
| Storage Temperature | -40 °C to 85 °C |
| Operating Temperature | -25 °C to 70 °C |
