2081890000 - 24V DC Alarm Module, 125mm x 96.5mm, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The AMG AM alarm module operates on a 24 V DC system and is RoHS compliant, featuring multiple performance certifications Certified with UL number E258476, this module is suited for diverse installation needs It boasts dimensions of 965 mm in depth, 125 mm in height, and 122 mm in width, weighing just 56 g Built to withstand a storage temperature range from -40 °C to 85 °C, it can effectively operate between -25 °C and 55 °C.

With a current draw of 30 mA at full load and 25 mA in idle mode, it operates within a DC input voltage range of 18 to 30 V DC An integrated suppressor diode offers surge protection, enhancing the module's safety and performance efficiency.

Features and Benefits:

•Operating time of 4,787,000 hours according to Standard SN 29500.

•Protection degree IP20.

•Connection system utilizes PUSH IN for ease of use.

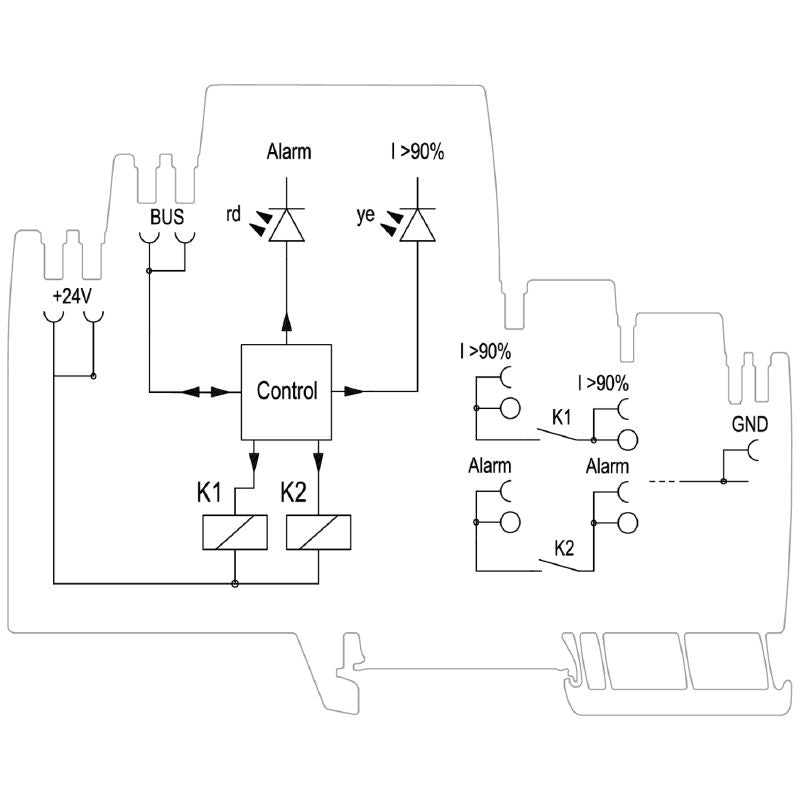

•Provides floating contact signaling and includes red and yellow LED indicators for alarm status.

Specifications:
