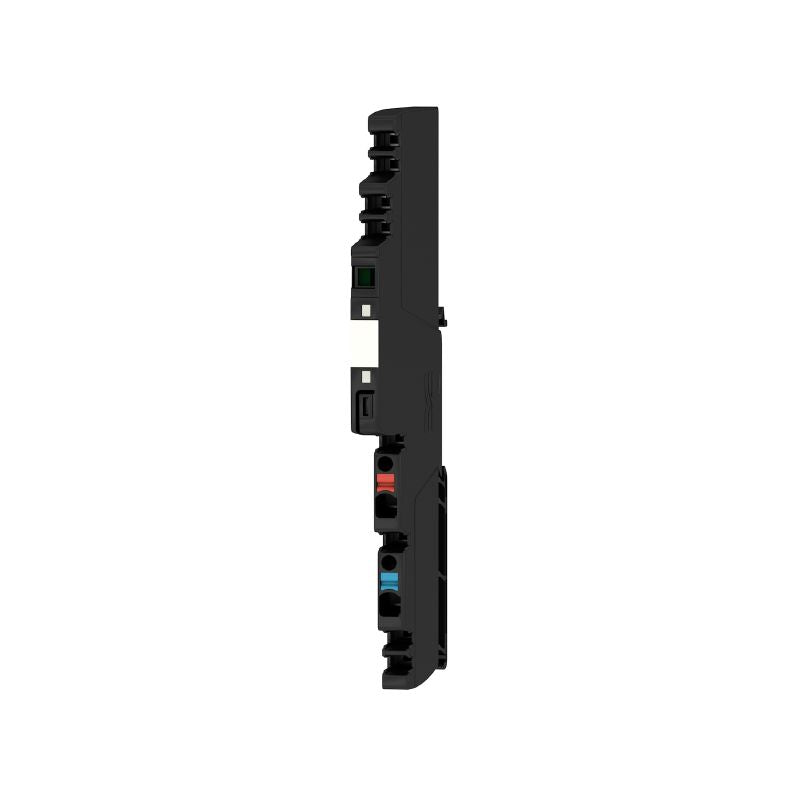

2080480000 - 2A Electronic Load Monitor, 96.5mm Deep, RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the AMG ELM-2F, an advanced electronic load monitoring solution with impressive specifications This unit handles a current capacity of 2 A at a voltage of 24 V DC and adheres to RoHS directives, boasting cULus certification (file number E258476) Compactly sized at 965 mm deep, 125 mm high, and 61 mm wide, it weighs just 40 g Engineered to function effectively within temperatures ranging from -25 °C to 70 °C, it can be stored safely between -40 °C and 85 °C.

The device consumes 30 mA at full load and 25 mA while idle, accepting DC input voltages from 18 to 30 V DC Enhanced with built-in surge protection and a suppressor diode, it also supports an output power of 48 W, making it a reliable choice for your monitoring needs.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Input fuse is included internally.

•Maximum admissible residual ripple at the input is 100 mVpp.

•PUSH IN connection system.

•LED indicators for operational status.

•Rated current of 2 A.

•Suitable for electronic load monitoring setups.
