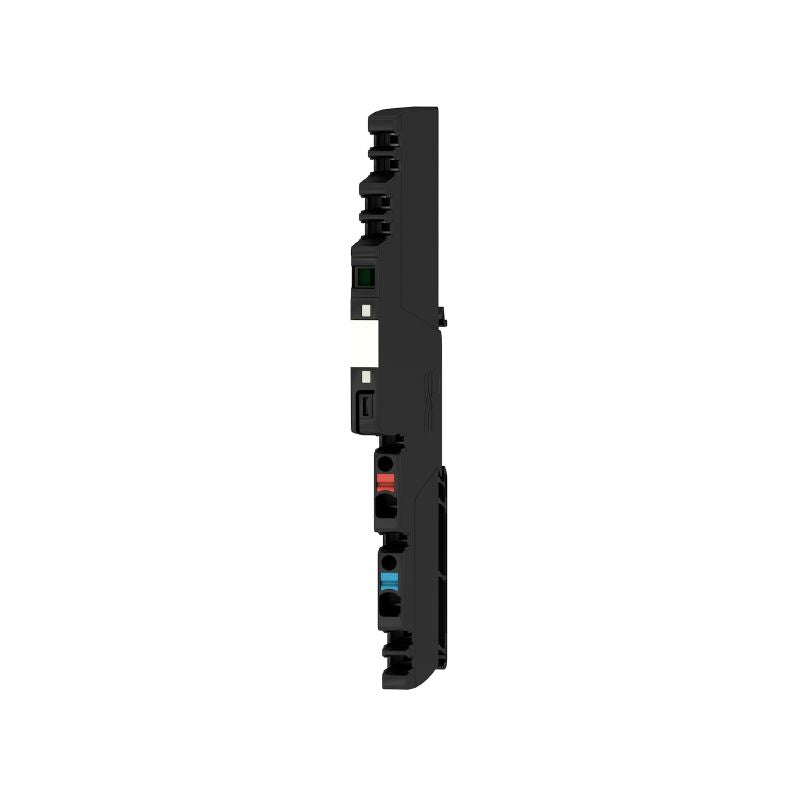

2082040000 - 1A Electronic Load Monitor, 96.5mm Deep, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the AMG ELM-1F EX, a sophisticated electronic load monitoring unit rated at 1 A and operating on a 24 V DC supply This device adheres to RoHS standards and comes with key certifications, including UL File numbers E258476 and E470829 With dimensions of 965 mm in depth, 125 mm in height, and 61 mm in width, it is compact and lightweight at just 40 g It operates efficiently within a temperature range of -25 °C to 70 °C, and can be stored in conditions from -40 °C to 85 °C.

The device consumes 30 mA at full load and 25 mA while idle Enhanced with surge protection through a suppressor diode, it also features a convenient PUSH IN connection system.

Features and Benefits:

•RoHS compliant with exemption.

•Dual internal fuses for additional safety.

•LED signaling for operation status.

Specifications:
