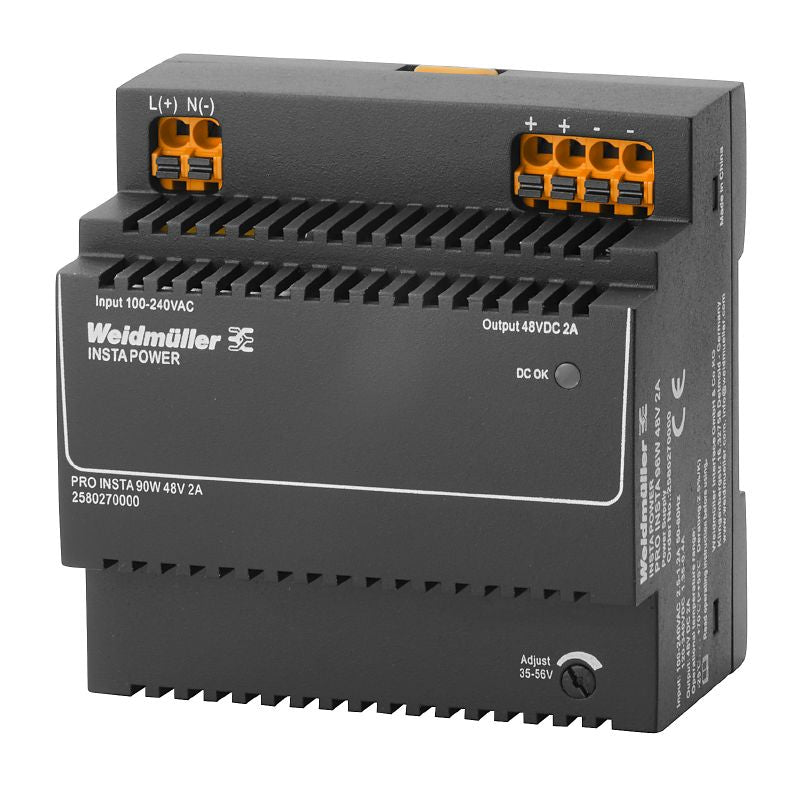

2580270000 - 48V Switch-Mode Power Supply, 96W, Compact 90mm Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliable performance of this switch-mode power supply unit, providing a robust 48V output With a peak power capacity of 96W, it consistently delivers a current of 2A Engineered to function efficiently in temperatures ranging from -25°C to 70°C, it can even operate in extreme cold, starting as low as -40°C Compactly designed with dimensions of 60mm deep, 90mm tall, and 90mm wide, it weighs 361g for ease of installation.

Versatility is at your fingertips with its broad input options, accommodating AC voltage from 85V to 264V and DC inputs between 95V and 370V This power supply also comes with various safety certifications and meets environmental compliance standards, including RoHS, ensuring peace of mind in its use.

Features and Benefits:

•Operating temperature range from -25°C to 70°C.

•Start-up at temperatures as low as -40°C.

•Max output power of 96W and continuous output current of 2A.

•Dimensions: Depth 60mm, Height 90mm, Width 90mm.

•Net weight is 361g.

•RoHS compliant with exemptions.

•Plastic housing with protective insulation.

•Horizontal mounting on DIN rail.

•High efficiency of 89%.

Specifications:
