Description:
Introducing the AMG ELM-4F, an advanced solution for electronic load monitoring with a capacity of 4 A at 24 V DC This device adheres to rigorous RoHS standards and carries UL certification number E258476, ensuring it meets safety and environmental regulations Its versatile design makes it suitable for a range of operating conditions, making it a reliable choice for all your monitoring needs.
Features and Benefits:
•Compliant with RoHS exemption 7a, 7cI.
•Includes surge protection with a suppressor diode.
•Flexible connection system using PUSH IN technology.
•LED indicators for operational status and load monitoring.
•Extended operational lifespan with a minimum of 3,063,000 hours.
Specifications:
| Depth | 96.5 mm |
| Height | 125 mm |
| Width | 6.1 mm |
| Net weight | 40 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Current consumption (full load) | 30 mA |
| Current consumption (idle) | 25 mA |
| DC input voltage range | 18…30 V DC |
| Rated input voltage | 24 V DC |
| Rated current | 4 A |
| Adjustable rated current | No |
| Capacitive load | 10,000 µF |
| Power loss, idling | 415 mW |
| Power loss, nominal load | 775 mW |
| Protection degree | IP20 |
| Surge voltage category | III |
| Conductor cross-section, AWG/kcmil , max | 12 AWG |
| Conductor cross-section, AWG/kcmil , min | 26 AWG |
| Number of terminals | 2 (+ / -) |
| Function key | Activation time <3s |
| Switch-on delay | 1 s |
| Duty cycle | 100 % |
| Input fuse (internal) | Yes |
| max. admissible residual ripple at the input | 100 mVpp |

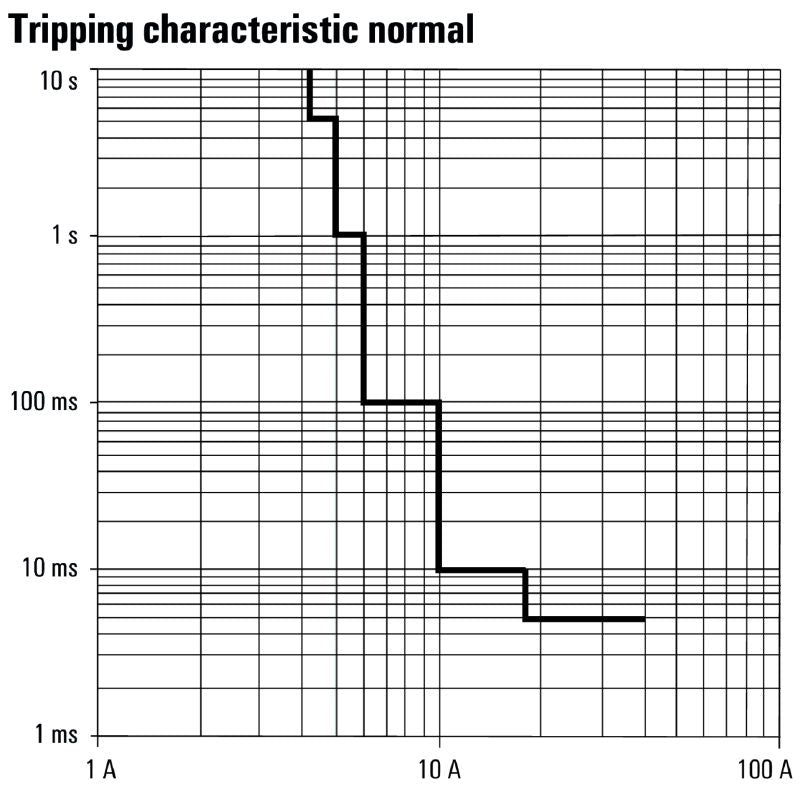

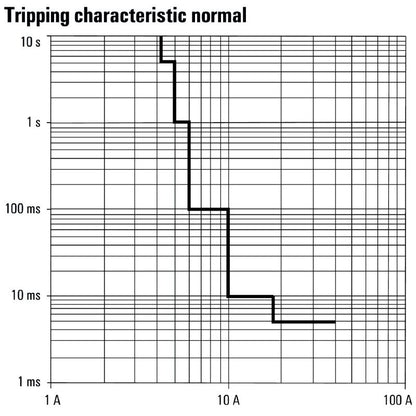

| Triggering characteristic | see characteristic curve |
