Description:

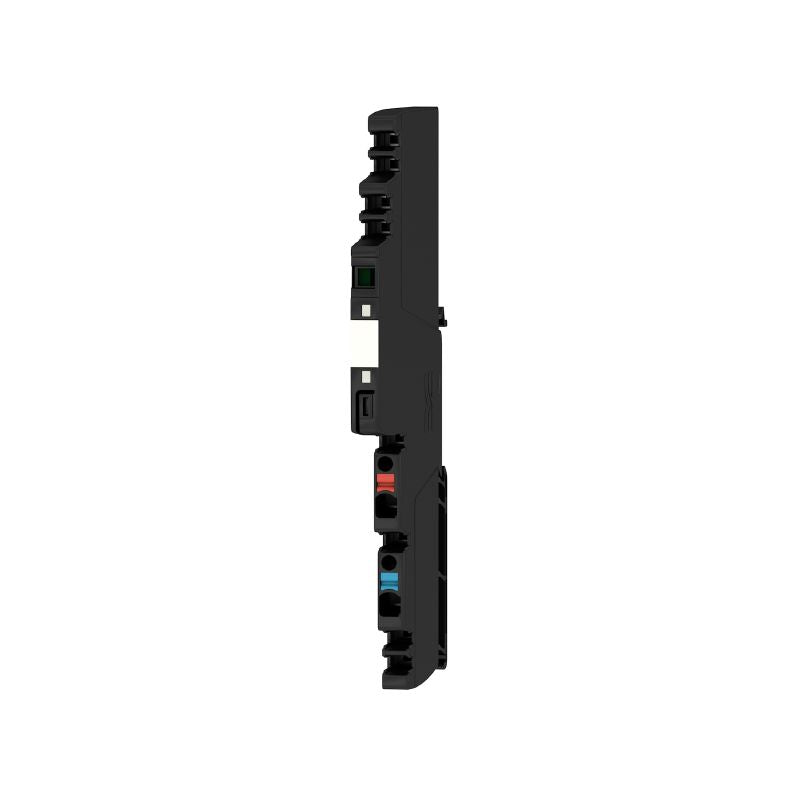

Introducing the AMG ELM-4F CL2, an efficient solution for electronic load monitoring with a handling capacity of 4 A at 24 V DC This device adheres to multiple compliance standards, including ROHS, ensuring quality and reliability With dimensions of 965 mm in depth, 125 mm in height, and just 61 mm in width, it boasts a sturdy design weighing 40 g The AMG ELM-4F CL2 is engineered to function within specific temperature limits, supporting operation from -25 °C to 70 °C and safe storage from -40 °C to 85 °C.
Features and Benefits:
•Electronic load monitoring capability.
•PUSH IN connection system.
•Environmental compliance with RoHS and REACH.
•Surge protection with suppressor diode.
•LED signaling for operational status.
•Internal error notification.
Specifications:
| Depth | 96.5 mm |
| Height | 125 mm |
| Width | 6.1 mm |
| Net weight | 40 g |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -25 °C to 70 °C |
| Current consumption (full load) | 30 mA |
| Current consumption (idle) | 25 mA |
| DC input voltage range | 18...30 V DC |
| Rated input voltage | 24 V DC |
| Surge protection | Suppressor diode |
| Rated current | 4 A |
| Output power | 96 W |
| Power loss, idling | 444 mW |
| Power loss, nominal load | 916 mW |
| Protection degree | IP20 |
| Conductor cross-section (max) | 12 AWG |
| Conductor cross-section (min) | 26 AWG |
| Number of terminals | 2 (+ / -) |
| LED green | Indicates operation (failure-free) |
| LED red | Indicates load monitoring has triggered or internal error |
