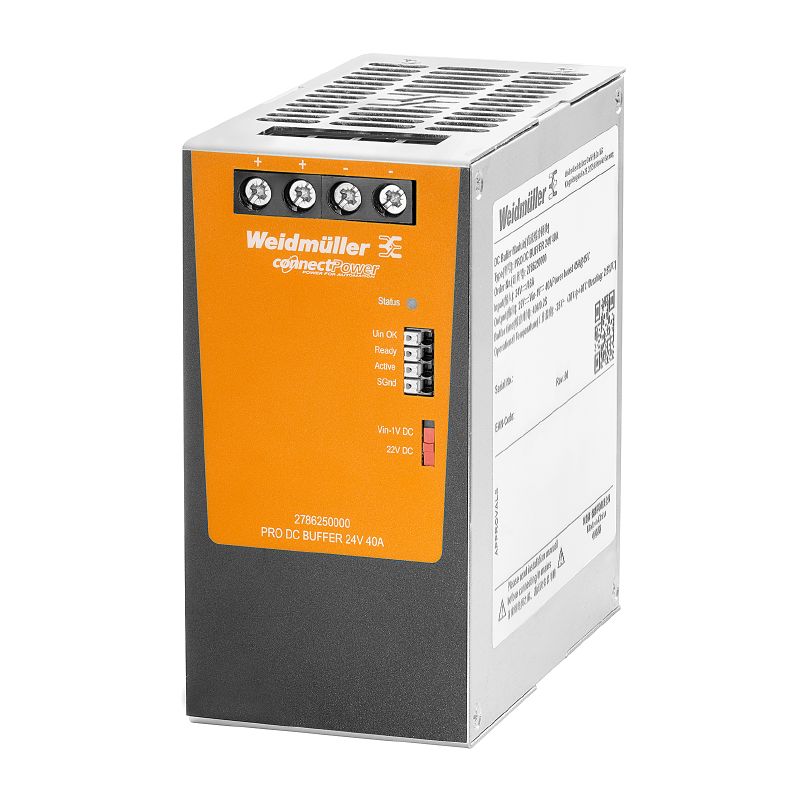

2786250000 - Compact 24V Buffer Module, 40A, UL Certified, 130mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a highly efficient buffer module designed to operate at 24 V, capable of managing currents up to 40 A This model meets RoHS standards and boasts UL certification (cULus) for reliable performance With compact dimensions of 130 mm in depth, 125 mm in height, and 65 mm in width, it weighs approximately 1,142 g, making it easy to integrate into various setups Engineered to function in extreme temperature ranges, it can withstand storage conditions from -40 °C to 85 °C and operational temperatures between -25 °C and 70 °C.

It also supports humidity levels from 5% to 95%, provided there is no condensation present The module allows for an input current of up to 41 A, operating at a rated input voltage of 24 V DC Additionally, it features built-in overload and short-circuit protection, ensuring reliability across multiple applications.

Features and Benefits:

•Compliant with RoHS exemption.

•Corrosion-resistant metal housing.

•Efficient with a degree of efficiency of ≥ 98% in buffer mode.

•Short-circuit protection and internal fuse included.

•Suitable for horizontal mounting on DIN rail.

•Long operating time of minimum 2,500,000 hours.

•Reverse polarity protection.

Specifications:
