Description:

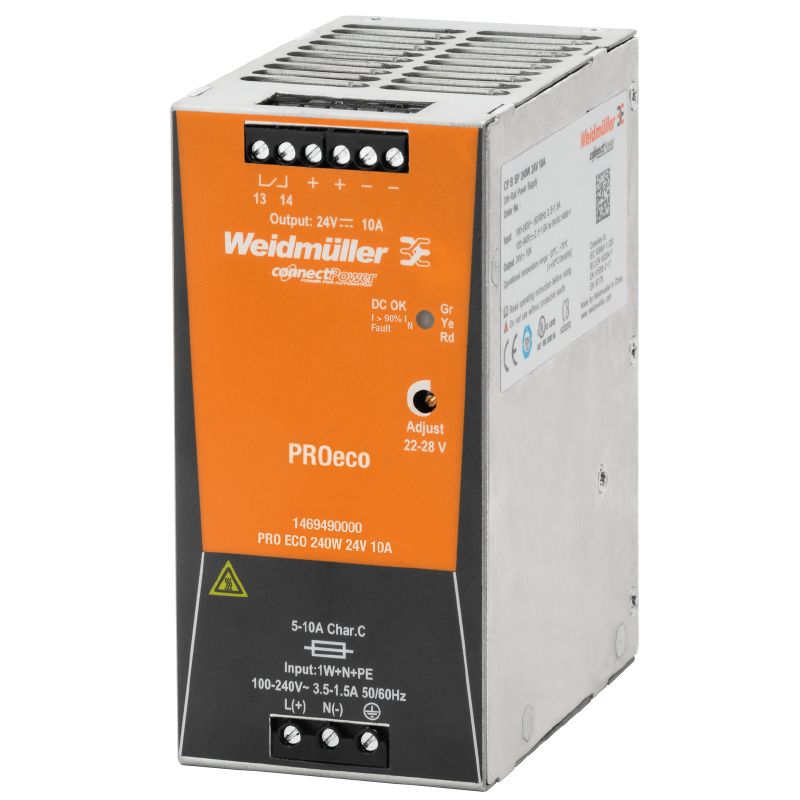

The PRO ECO 240W power supply is a 24V, 10A switching unit suitable for a variety of applications It boasts compliance with RoHS standards and holds a cULus certification (E258476) Please note that this product will only be available until December 30, 2026 With dimensions of 60 mm in width, 125 mm in height, and 100 mm in depth, this unit weighs 1,002 g It operates effectively within a temperature range of -25 °C to 70 °C, accommodating capacitive loads without restrictions.
Additionally, it delivers a remarkable efficiency rating of 90%.
Features and Benefits:
•Compliant with RoHS.

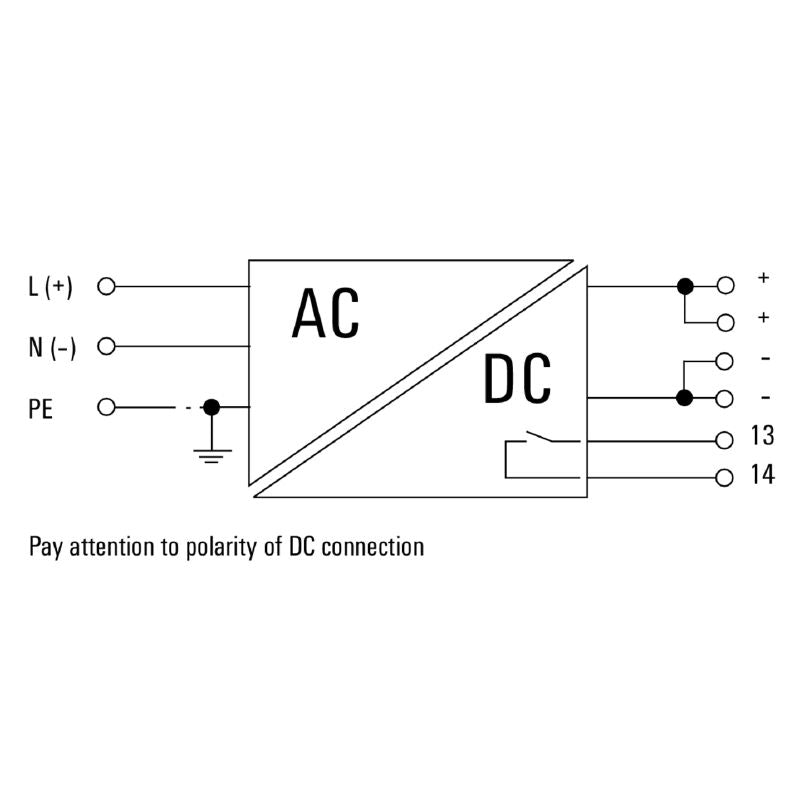

•Screw connection for input and output.
•Adjustable output voltage from 22V to 28V via a potentiometer.
•Overload protection is included.
•Green LED indicates output above 21.6V DC.
•Metal housing that is corrosion-resistant.
•High efficiency of 90%.
Specifications:
| Nominal output current | 10 A @ 55 °C, 6.25 A @ 70°C |
| Output power | 240 W |
| Rated output voltage | 24 V DC ± 1 % |

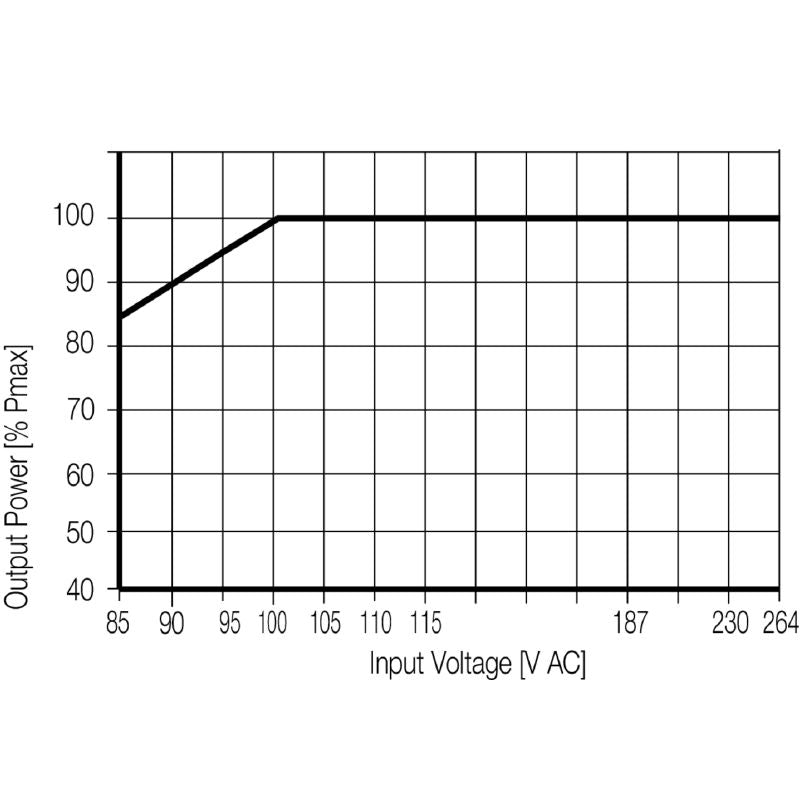

| Input voltage range | 85...264 V AC (derating at 100 V AC) |
| AC current consumption | 1.23 A @ 230 V AC / 2.47 A @ 110 V AC |
| Operating temperature | -25 °C...70 °C |
| Storage temperature | -40 °C...85 °C |
| Protection degree | IP20 |
| Earth leakage current | max. 3.5 mA |
| Frequency range AC | 47...63 Hz |
