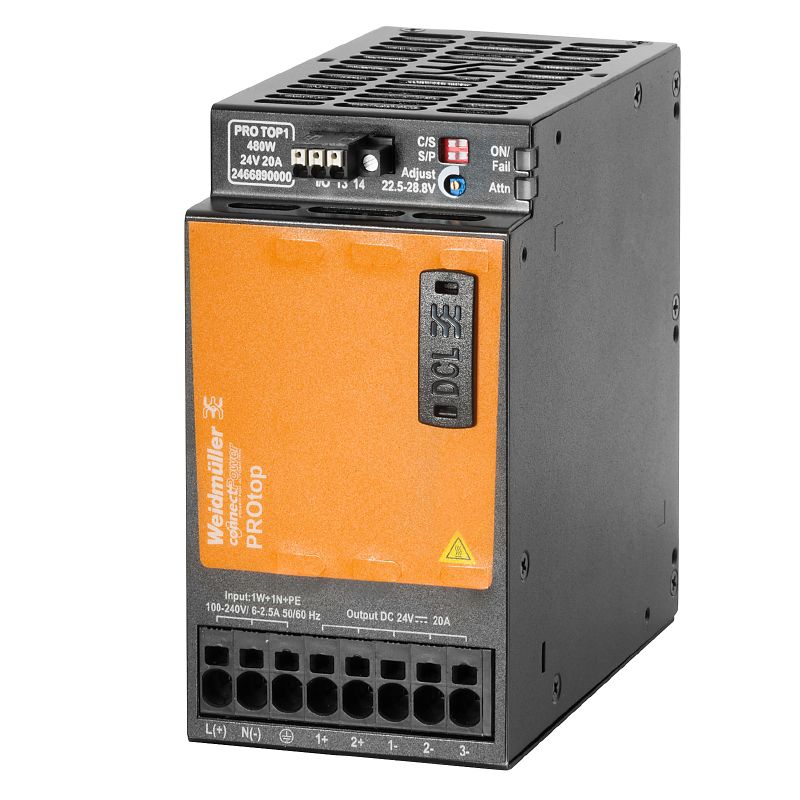

2466890000 - PRO TOP1 480W 24V Metal Power Supply with PUSH IN Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable power with the PRO TOP1 switching power supply unit, engineered to deliver a consistent 24 V output with a robust capacity of 480 W and a maximum current of 20 A Adhering to RoHS standards and boasting multiple certifications, including cULus, this power supply is built for performance It operates effectively across a wide temperature spectrum, with a storage range from -40 °C to 85 °C and operational capabilities between -25 °C and 70 °C.

The sturdy metal casing offers corrosion resistance, making it suitable for a variety of applications Additionally, its innovative PUSH IN connection system simplifies the process for both input and output setups.

Features and Benefits:

•RoHS compliant with exemptions.

•Efficient with a degree of efficiency of 93%.

•Supports redundancy and power increase via parallel connection.

•Short-circuit protection included.

•Compact design for ease of installation.

Specifications:
