Description:

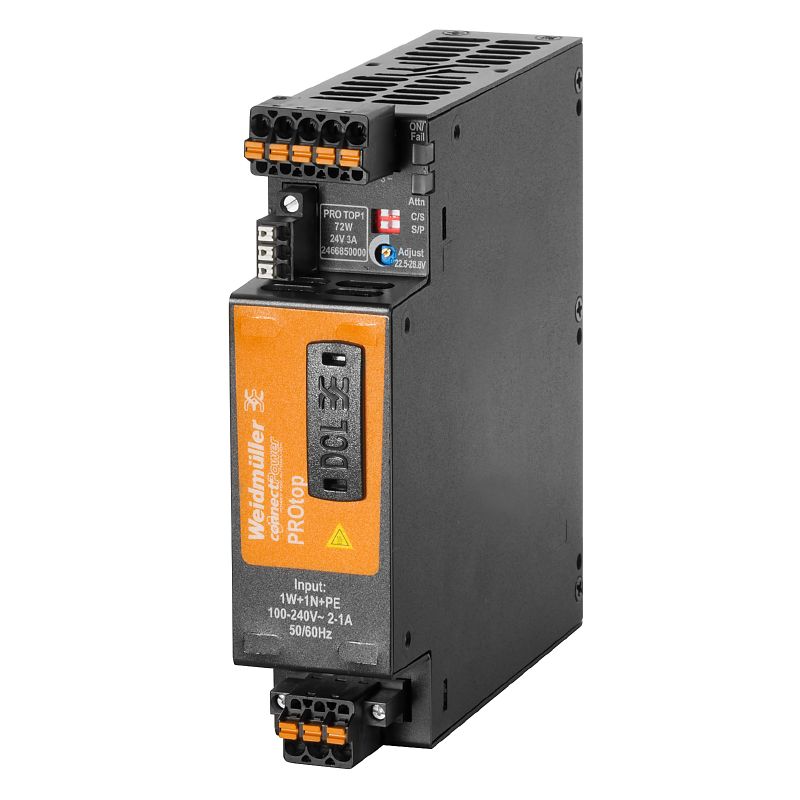

Introducing the PRO TOP1, a powerful 72W switch-mode power supply unit operating at 24V with a current output of 3A This unit is built to meet ROHS standards and features UL File Numbers E255651 and E470829 for added assurance Measuring 125 mm in depth, 130 mm in height, and 35 mm in width, it has a compact design and weighs just 650 g It operates efficiently within a temperature range of -25°C to 70°C and can be stored safely at temperatures between -40°C and 85°C.
Boasting an impressive efficiency rating of 89%, this power supply unit is equipped with short-circuit protection for enhanced safety.
Features and Benefits:
•High efficiency of 89%.
•Metal housing that is resistant to corrosion.
•Multiple output voltage adjustment options.
•Push-in connection system for easy wiring.
•Parallel connection option for redundancy and power increase.
Specifications:
| Input voltage range (AC) | 85…277 V AC |
| Rated input voltage | 100...240 V AC / 120...340 V DC |

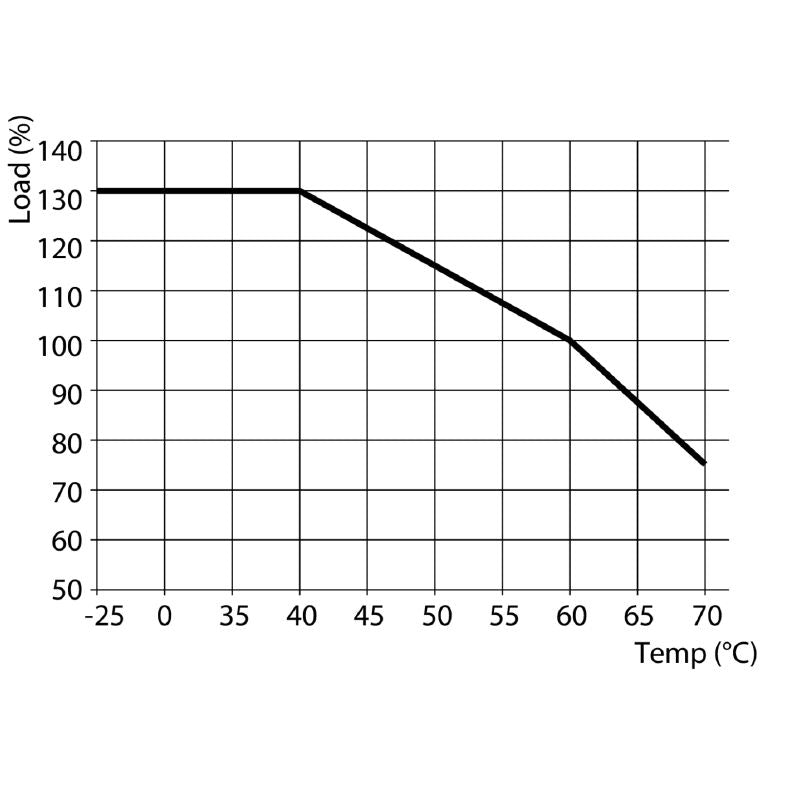

| Nominal output current | 3 A @ 60 °C |
| Output voltage (max) | 28.8 V |
| Output voltage (min) | 22.5 V |
| Output power | 72 W |
| Surge protection | Varistor |
| Protection degree | IP20 |
| Start-up | ≥ -40 °C |
| Operating time (MTBF) | 2,300,000 h |
| Short-circuit protection | Yes |
| Earth leakage current (max) | 3.5 mA |
| Humidity (operating temperature) | 5…95 %, no condensation |
| Conductor cross-section (input) | 12 AWG max / 20 AWG min |
| Connection system | PUSH IN with actuator |
