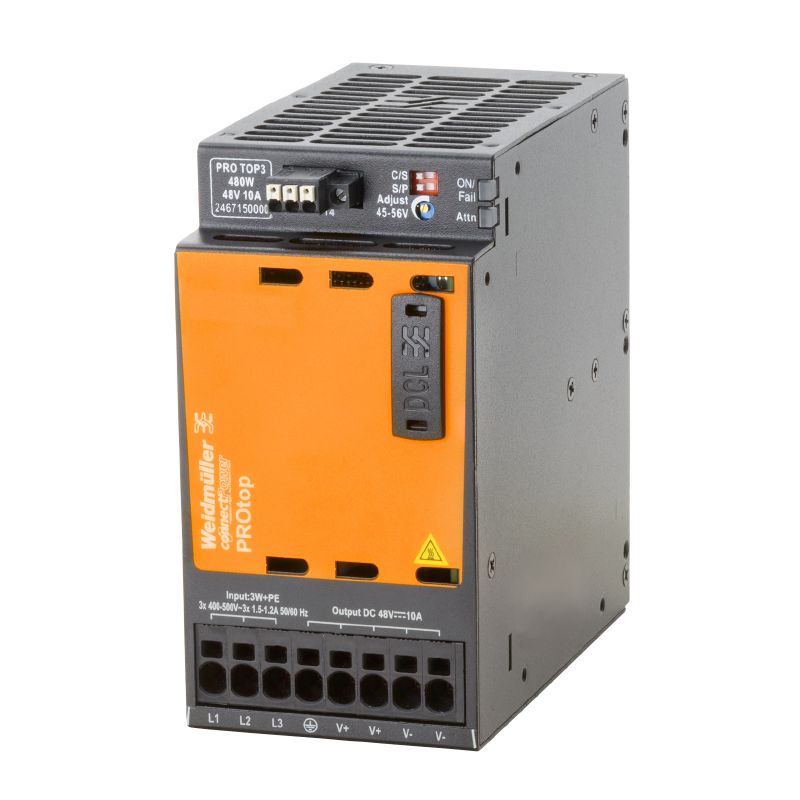

2467160000 - 480W 48V Switch-Mode Power Supply with PUSH IN Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust switch-mode power supply unit tailored for 48 V applications, delivering a powerful output of 480 W It accommodates an extensive AC input voltage range of 3 x 320 to 3 x 575 V AC, along with a DC input voltage span of 450 to 800 V DC This power supply is equipped with a user-friendly PUSH IN connection system and supports a nominal output current capacity of 10 A at a temperature of 60 °C.

Furthermore, it upholds RoHS compliance and boasts excellent environmental credentials, making it a reliable choice for various applications.

Features and Benefits:

•Conformal coating for environmental protection.

•High efficiency of 94%.

•Short circuit protection included.

•Supports parallel connection for power redundancy and increase.

Specifications:
