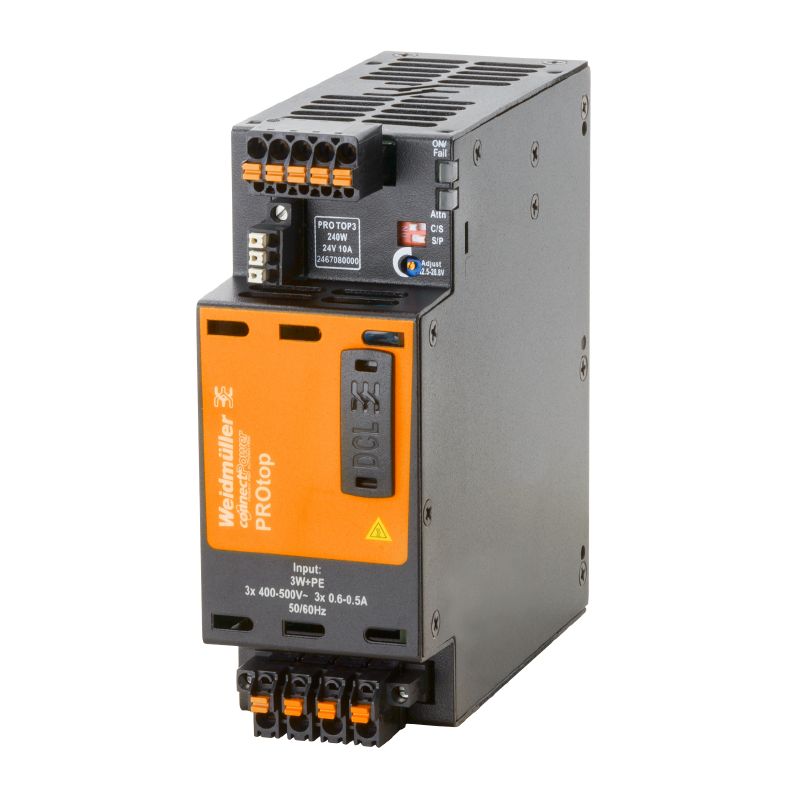

2467090000 - 240W 24V Switch-Mode Power Supply, UL Certified, Compact Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PRO TOP3 240W switch-mode power supply unit, delivering consistent performance at a voltage of 24 V This reliable unit meets RoHS standards and carries UL certifications, including certificate numbers E258476 and E470829 Compact yet powerful, its dimensions measure 125 mm in depth, 130 mm in height, and 50 mm in width, with a total weight of 1,120 grams The PRO TOP3 ensures efficient operation in demanding conditions, with a storage temperature range from -40 °C to 85 °C and an operational range of -40 °C to 70 °C.

Additionally, it accommodates humidity levels from 5% to 100%, making it a versatile choice for various environments without the risk of condensation.

Features and Benefits:

•AC input voltage range of 3 x 320 to 3 x 575 V AC and 2 x 360 to 2 x 575 V AC.

•Connection system utilizes PUSH IN with actuator.

•Nominal power consumption is 258.1 VA.

•Rated output voltage of 24 V DC with an accuracy of ± 1 %.

•Short-circuit protection included.

•Metal housing that is corrosion resistant.

•Operating time of 1,400,000 hours at 25 °C and input voltage of 400 V.

•Degree of efficiency achieving 93%.

Specifications:
