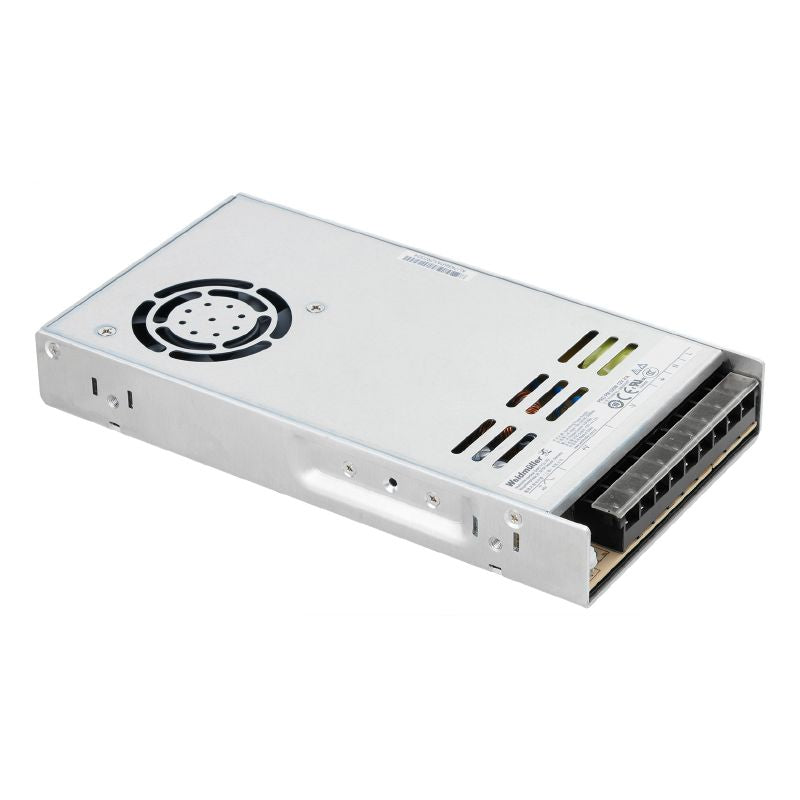

2660200292 - 250W Switch-Mode Power Supply, 24V, 10.5A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PRO PM 250W switch-mode power supply unit, a reliable choice for your electrical needs Operating at 24 volts with a peak current of 105 amps, this unit is designed with RoHS compliance in mind Its dimensions are compact, measuring 215 mm in depth, 30 mm in height, and 115 mm in width, with a total weight of 736 grams, making it easy to install using the convenient screw connection system.

Engineered to function in a broad temperature range from -20 °C to 70 °C, it can also be stored safely between -40 °C and 85 °C, while operating optimally in humidity levels of 5% to 95% This power supply comes equipped with essential safety features, including overload and short-circuit protection, and features a status LED to indicate when it’s ready for use With an output of 250 watts and an adjustable potentiometer for fine-tuning the voltage, the PRO PM 250W ensures dependable performance for various applications.

Features and Benefits:

•RoHS compliant.

•LED status indication.

•High degree of efficiency at 86%.

•Can be installed in a panel mount with screw fixation.

•Capable of handling inrush currents up to 60 A.

•Optional parallel connection with diode module.

Specifications:
