2656670000 - Compact 96.5mm Electronic Load Monitor, -25°C to 70°C

Description:

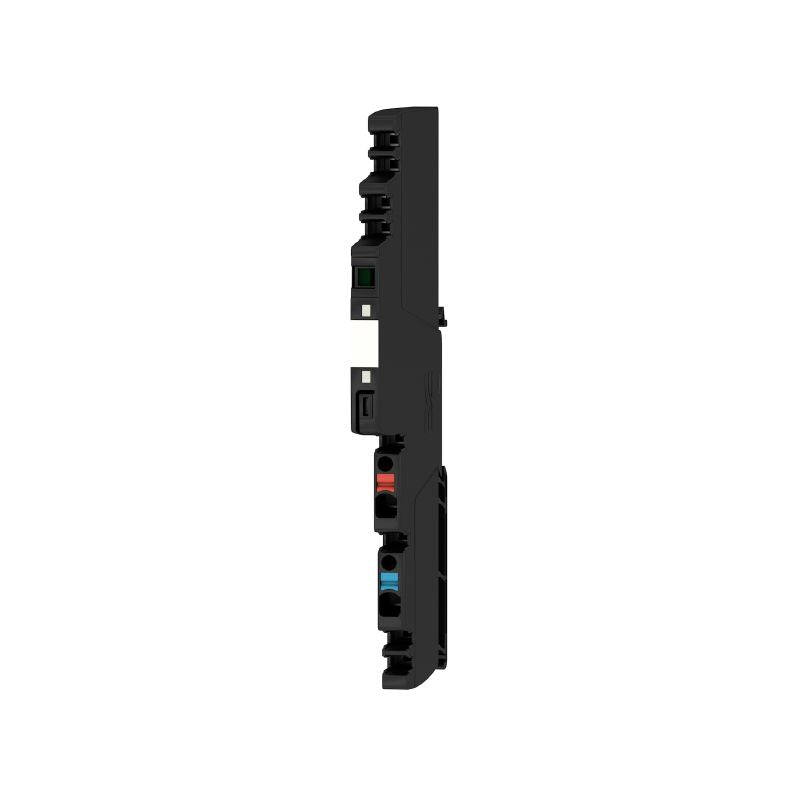

Introducing the TGD ELM-4 CL2, a sophisticated electronic load monitoring system tailored for efficient energy management This device boasts essential certifications, including RoHS compliance and a cULus certification (No E258476), ensuring it meets high safety and environmental standards Designed for versatility, it performs optimally in temperatures ranging from -25 °C to 70 °C, with storage capabilities extending from -40 °C to 85 °C.

Compact and lightweight, the ELM-4 CL2 measures 965 mm deep, 125 mm high, and 122 mm wide, weighing in at just 90 g It accommodates DC input with a voltage range of 18 to 30 V, rated at 24 V DC With the capacity to manage a rated current of 4 A, it offers adjustable settings suitable for both fixed and capacitive loads of up to 4,700 µF, making it a versatile choice for your energy needs.

Features and Benefits:

•Compact design with specific dimensions.

•Input range is versatile from 18 to 30 V DC.

•Rated current of 4 A per channel.

•Durable for a wide operating temperature range.

•Early warning LED indicators for various operational statuses.

•Compliant with environmental regulations like RoHS.

Specifications:
