1478140000 - 24V 20A PRO MAX Power Supply, 150mm Deep, 2,000g Weight

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PRO MAX 480W switch-mode power supply unit, engineered to deliver a steady 24V output at 20A This unit complies with ROHS standards and holds various certifications, including cURus and cULus, complete with designated certificate numbers With dimensions of 150mm in depth, 130mm in height, and 90mm in width, it is compact yet powerful, weighing in at 2,000 grams It operates efficiently within a temperature range of -25°C to 70°C and can be stored in conditions from -40°C to 85°C.

The power supply is equipped with essential safety features, such as surge voltage protection and short-circuit protection, making it ideal for dependable power management across a wide array of applications.

Features and Benefits:

•Offers an input voltage range of 85 to 277V AC and 80 to 370V DC.

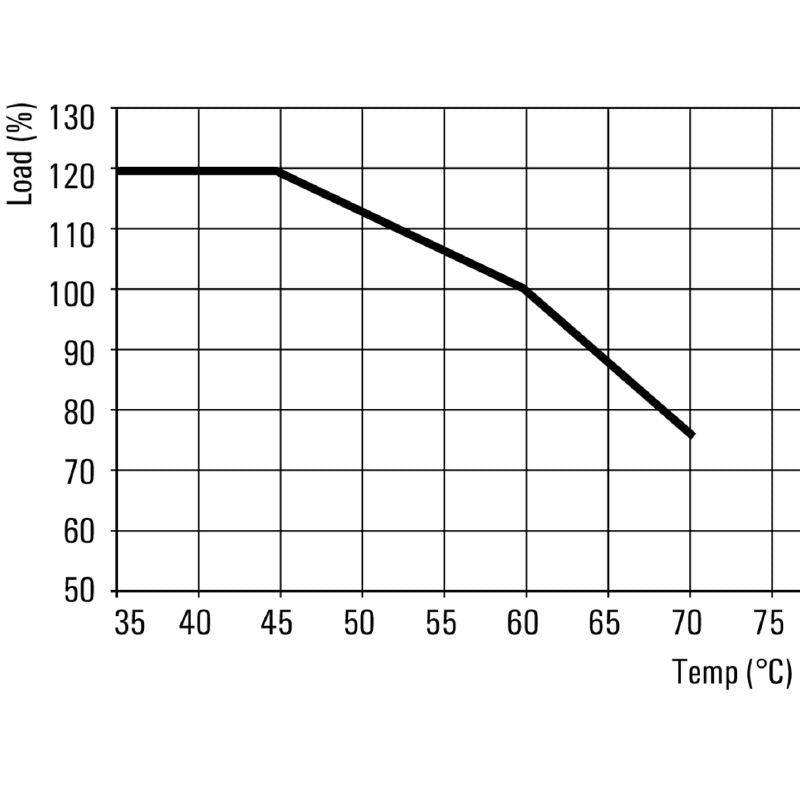

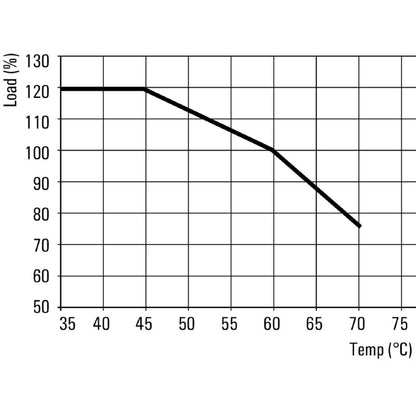

•Continuous output current of 20A at 60°C.

•Protection against inverse voltage and short-circuits.

•High efficiency with a degree of efficiency of 92%.

•Horizontal installation on TS35 mounting rail with no space required between units.

Specifications:
