2082050000 - Compact 24V DC Electronic Load Monitor, 2A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

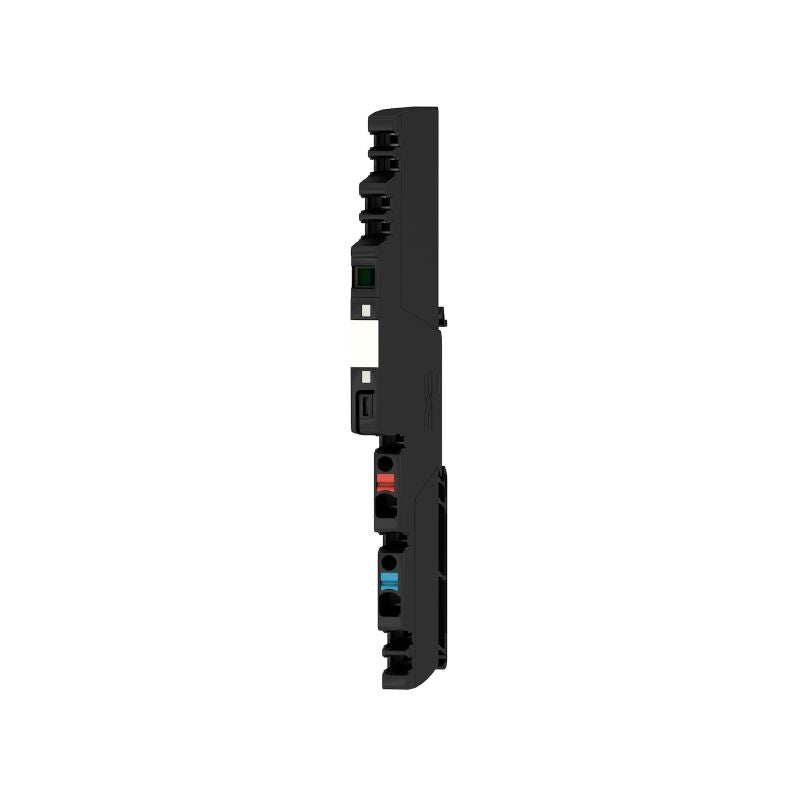

Introducing the AMG ELM-2F EX, a robust solution for electronic load monitoring with a capacity of 2A at 24V DC This device meets stringent safety requirements, boasting UL certifications for reliable operation With dimensions of 61 mm in width, 125 mm in height (approximately 4921 inches), and a depth of 965 mm (around 3799 inches), it weighs only 40 grams, making it a lightweight yet powerful tool.

Designed to perform under a wide temperature spectrum, it operates smoothly between -25 °C and 70 °C, and can be stored safely from -40 °C to 85 °C The device also adheres to RoHS standards, highlighting its commitment to eco-friendliness It features an impressive power loss capacity of 415 mW when idle and 565 mW when under nominal load Furthermore, its built-in surge protection, aided by a suppressor diode, ensures enhanced safety.

The device incorporates innovative Push-In technology for seamless connection, delivering efficiency and reliability for all your electronic monitoring needs.

Features and Benefits:

•Compliant with RoHS with exemptions.

•Equipped with LED indicators for operation monitoring.

•Designed for efficient electronic load management.

•Internal input fuse enhances safety.

•Low idle current consumption of 25 mA.

•Used for electronic load monitoring in various electrical applications.

Specifications:
