Description:

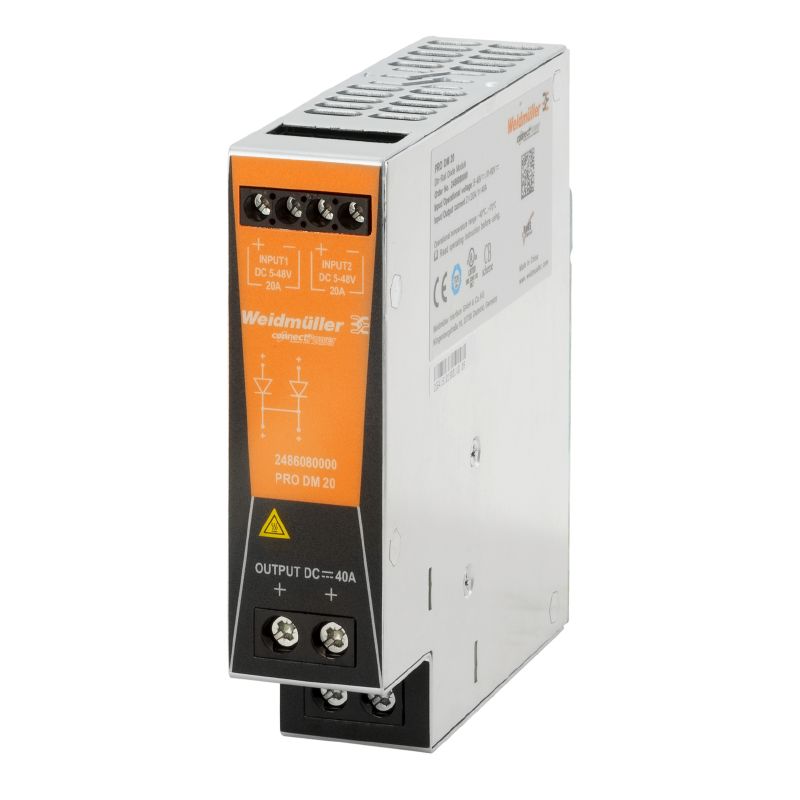

Introducing the PRO DM 20 diode module, specifically engineered for 24 V DC systems This module is RoHS compliant and carries a certification number from cULus, ensuring its reliability Housed in a robust metal casing resistant to corrosion, it is designed for efficient horizontal installation on TS35 mounting rails For optimal airflow, a clearance of 50 mm is necessary at both the top and bottom Notably, the module can be mounted adjacent to others without the need for spacing in between, making it versatile for various setups.
In terms of thermal performance, the device operates efficiently within a temperature range of -40 °C to +70 °C and can be stored at temperatures between -40 °C to +85 °C With an input voltage rating of 24 V DC, it boasts impressive efficiency levels exceeding 97% and delivers strong output capabilities, making it an excellent choice for your electrical applications.
Features and Benefits:
•Horizontal installation on TS35 mounting rail.
•Corrosion-resistant metal housing.
•High degree of efficiency exceeding 97%.
•Can be mounted side by side with no space between modules.
•Wide operating temperature range.
Specifications:
| Depth | 125 mm |
| Height | 125 mm |
| Width | 32 mm |
| Net weight | 441 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| Input voltage | 24 V DC |
| Input current | 2 × 24 A (-40 °C ~ +45 °C), 2 × 20 A (+45 °C ~ +60 °C), 2 × 15 A (+70 °C) |
| Continuous output current | 1 × 48 A (-40 °C ~ +45 °C), 1 × 40 A (+45 °C ~ +60 °C), 1 × 30 A (+70 °C) |
| Output current, max | 40 A |
| Output power | 932 W |
| Degree of efficiency | > 97% @ 24 V Input voltage |
| Protection degree | IP20 |
| Electrical safety | Acc. to EN60204 |
| Connection system | Screw connection |
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
