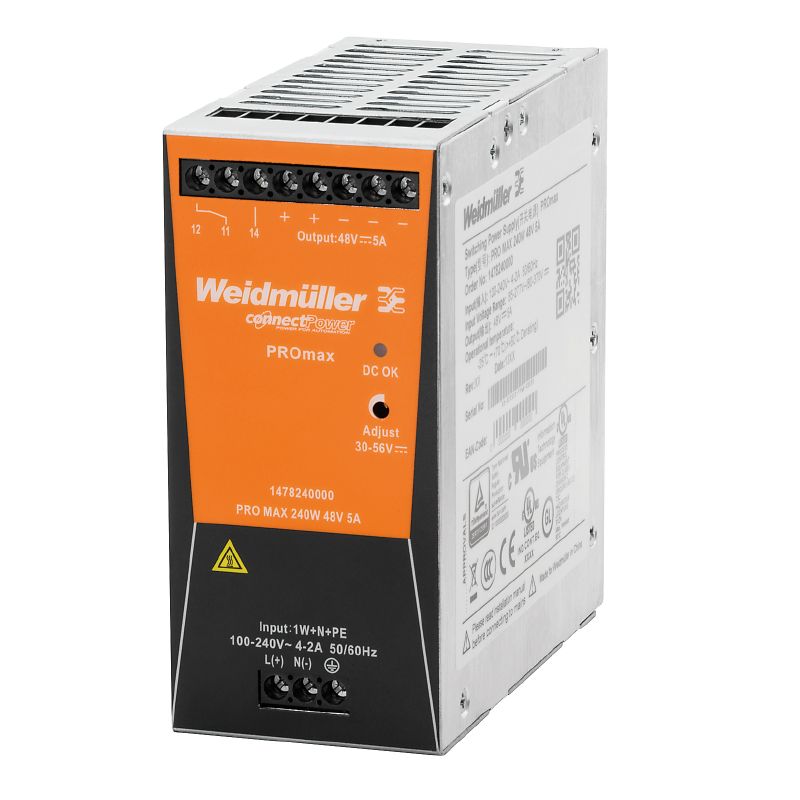

1478240000 - Compact 240W 48V Power Supply Unit for Versatile Applications
1478240000 - Compact 240W 48V Power Supply Unit for Versatile Applications
SKU: SKU: 1478240000 Download PDF
- 1478240000 - Compact 240W 48V Power Supply Unit for Versatile Applications
- 1478240000 - Compact 240W 48V Power Supply Unit for Versatile Applications
Couldn't load pickup availability
Description:
Introducing this versatile switch-mode power supply unit, which delivers a robust power output of 240W at a steady 48V Perfect for various electrical applications, it meets essential safety certifications, including ROHS and UL This model accommodates a broad input voltage range of 85 to 277V AC and 80 to 370V DC With its compact dimensions of 125mm in depth, 130mm in height, and 60mm in width, it is designed for easy installation.
Operating efficiently in temperatures from -25°C to 70°C and humidity levels between 5% and 95%, it is built to endure a range of environments Additionally, the power supply features an adjustable output voltage capability and can manage currents up to 6A under specified conditions, making it a reliable choice for your power needs.
Features and Benefits:
•Compact design facilitates easier installation in tight spaces.
•High efficiency with a rated degree of efficiency of 92.5%.
•Wide input voltage range allows for versatile usage.
•Equipped with multiple certifications for safety and compliance.
•Adjustable output voltage via potentiometer.
Specifications:
| Input Voltage Range (AC) | 85…277 V AC |
| Input Current (AC) | 1.5 A at 230 V |
| Output Power | 240 W |
| Rated Output Voltage | 48 V DC ± 1 % |
| Humidity at Operating Temperature | 5...95 %, no condensation |
| Storage Temperature | -40 °C...85 °C |

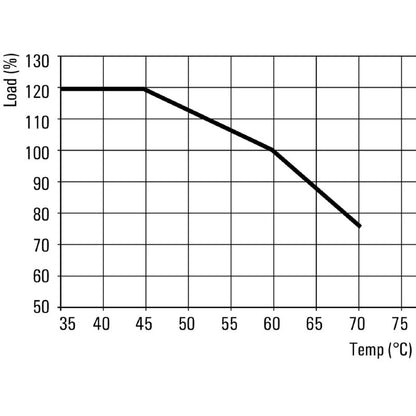

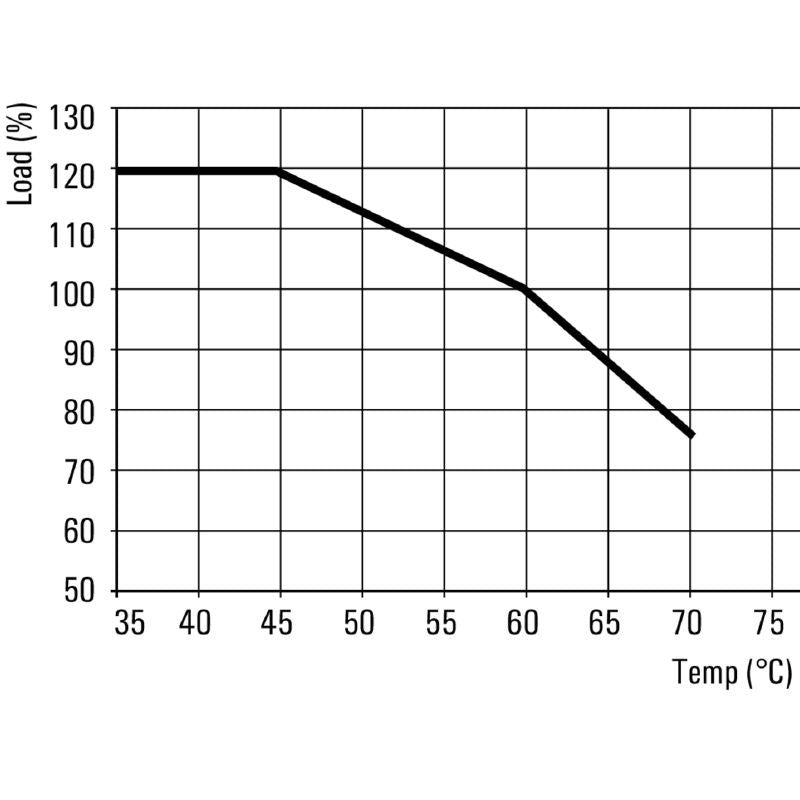

| Operating Temperature | -25 °C...70 °C |
| Mounting Position | Horizontal on TS35 mounting rail |
| Protection Degree | IP20 |
| Housing Version | Metal, corrosion resistant |
| Certificates | {'cURus': 'E255651', 'cULus': 'E258476', 'cULusEX': 'E470829'} |
| Weight | 1,050 g |
| Surge Protection | Varistor |
| Status Indication | LED red/green and relay |
| AC Failure Bridging Time | min. 20 ms |
| Power Loss (Idling) | 2.4 W |
| Power Loss (Nominal Load) | 19.5 W |
