2001800000 - 120W DC/DC Converter with 5A Output and Safety Features

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

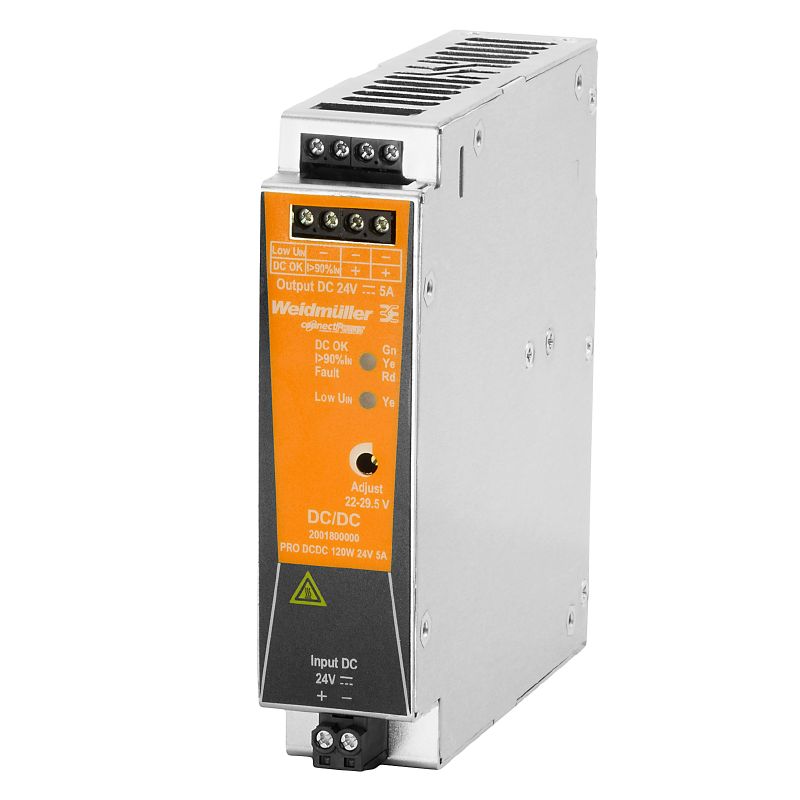

Introducing the PRO DCDC 120W DC/DC converter, engineered for efficient power conversion with a nominal input voltage of 24 V DC It delivers an impressive current output of 5 A, operating effectively in a temperature range of -25 °C to 70 °C This versatile converter is adaptable to various input voltage configurations and comes equipped with essential safety features, including over-voltage, short-circuit, and reverse polarity protection.

With the ability to manage capacitive loads effortlessly, it also supports a peak output voltage of 295 V, which can be easily adjusted using the conveniently placed front-mounted potentiometer.

Features and Benefits:

•RoHS compliant with exemptions.

•Protection against overheating.

•High efficiency rated at 92%.

•Mountable side by side on a TS35 mounting rail with specified clearance for airflow.

•Allows for up to 5 parallel connections without additional equipment.

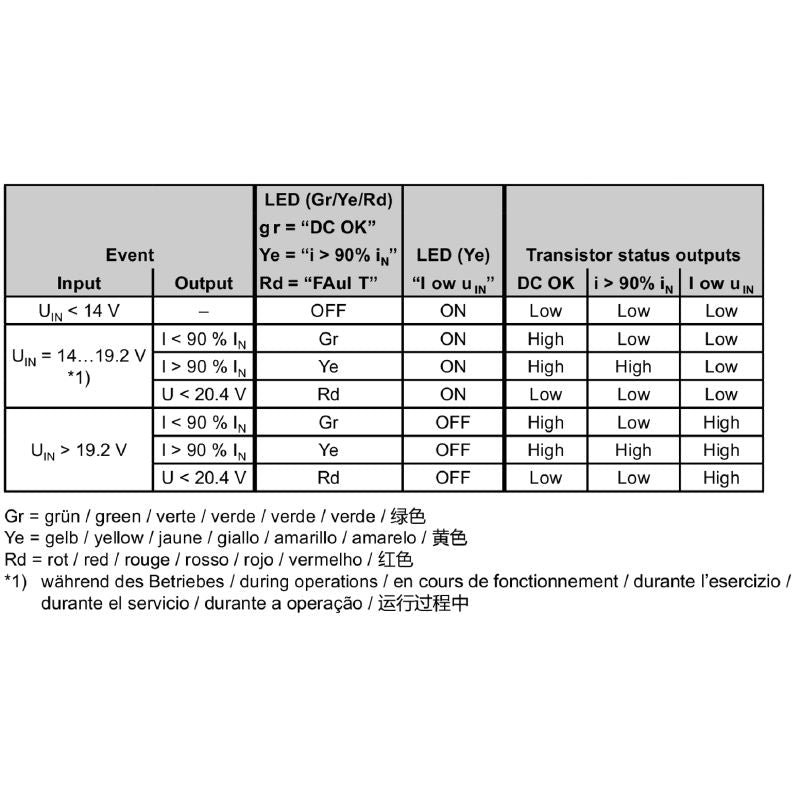

•Signaling capabilities with short-circuit-proof outputs.

Specifications:
