2466870000 - 120W Compact 24V Power Supply with Surge Protection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

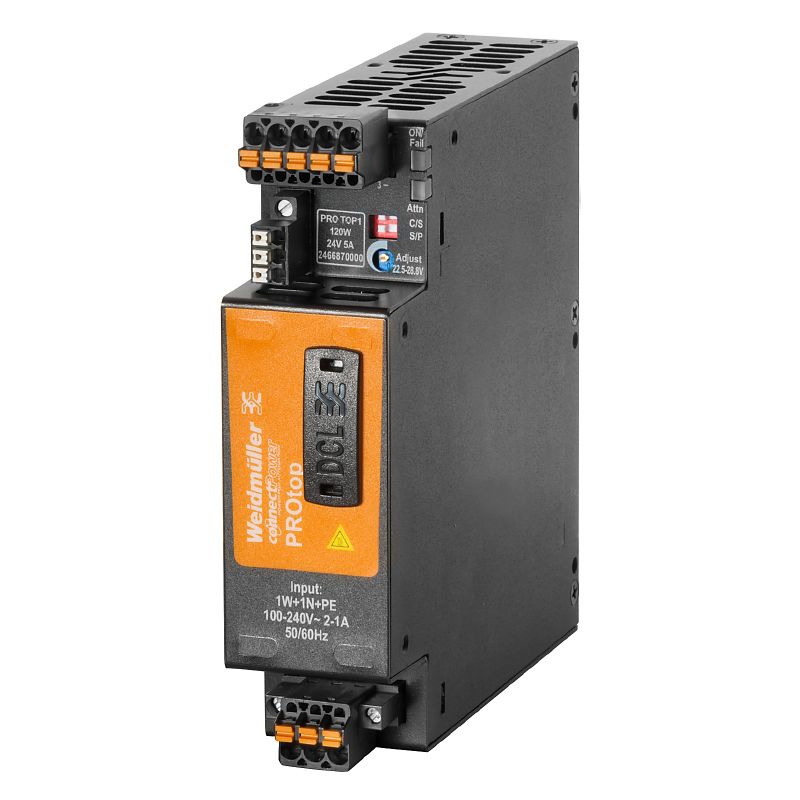

Introducing the PRO TOP1, a reliable 120W switch-mode power supply that delivers a steady 24V output With its compact size of 125 mm deep, 130 mm tall, and just 35 mm wide, this unit is designed for versatility It meets ROHS compliance standards and carries the E255651 certification for cULus, ensuring quality and safety The power supply accommodates a variety of input voltages and features dual input voltage options for seamless operation with both AC and DC sources.

Enhanced with surge protection and inrush current limiting, the PRO TOP1 is built for efficiency and dependable performance across multiple applications.

Features and Benefits:

•Compact design with metal housing for corrosion resistance.

•High efficiency with a degree of efficiency of 91%.

•Wide input voltage range from 85 to 277 V AC and 48 to 410 V DC.

•Parallel connection option available for redundancy.

•Protection against inverse voltage and short-circuit.

•Suitable for horizontal mounting on DIN rail TS 35.

Specifications:
