2789930000 - 24V 17Ah High-Performance Battery with Overload Protection
2789930000 - 24V 17Ah High-Performance Battery with Overload Protection
SKU: SKU: 2789930000 Download PDF
- 2789930000 - 24V 17Ah High-Performance Battery with Overload Protection
- 2789930000 - 24V 17Ah High-Performance Battery with Overload Protection
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

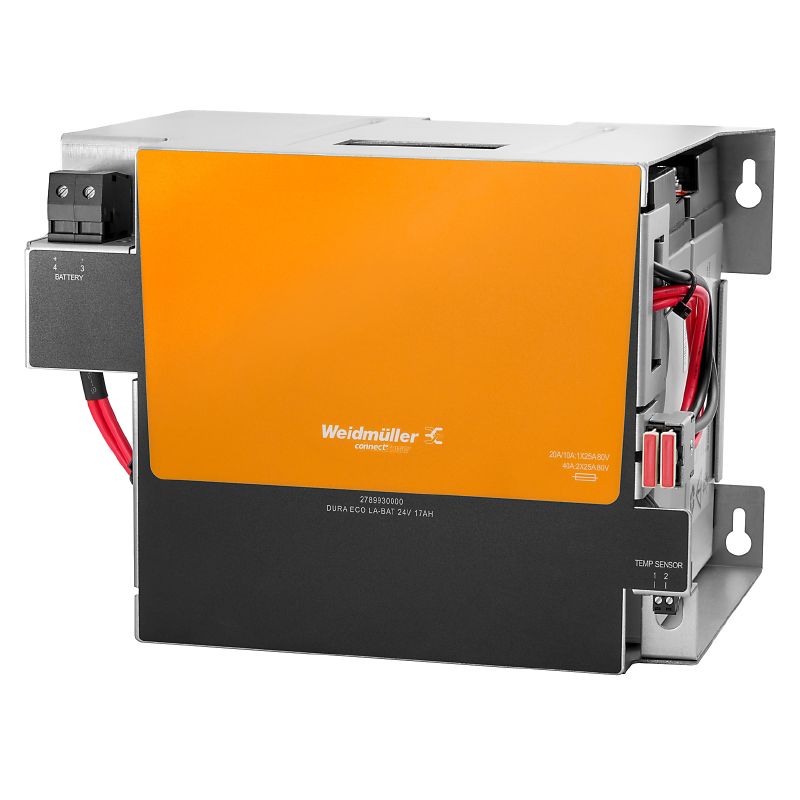

Introducing the DURA ECO LA-BAT 24V 17AH battery, engineered for outstanding performance and dependability This robust battery operates efficiently in temperatures ranging from -15 °C to 50 °C, ensuring reliable function in various environments With a nominal capacity of 17 Ah and a maximum input voltage of 24 V DC, it delivers power with an output current capability of up to 50 A Safety is prioritized with built-in protection against short circuits and overloads, featuring dual 25 A fuses.
Its versatile design allows for flexible connections, accommodating various conductor sizes and enabling parallel connections for added convenience Perfect for both personal and professional applications, this battery stands as a reliable power source.
Features and Benefits:
•Includes a temperature probe of NTC 100 kΩ.
•Environmental compliance with RoHS and not affected by REACH SVHC.
•Life expectancy of 5.65 years.
•Protection degree of IP20.
Specifications:
| Depth | 189 mm |
| Height | 178 mm |
| Width | 242 mm |
| Storage temperature | -15 °C...50 °C |
| Humidity | 5…95 % RH |
| Charging current, max | 2 A |
| Output current, max | 50 A |

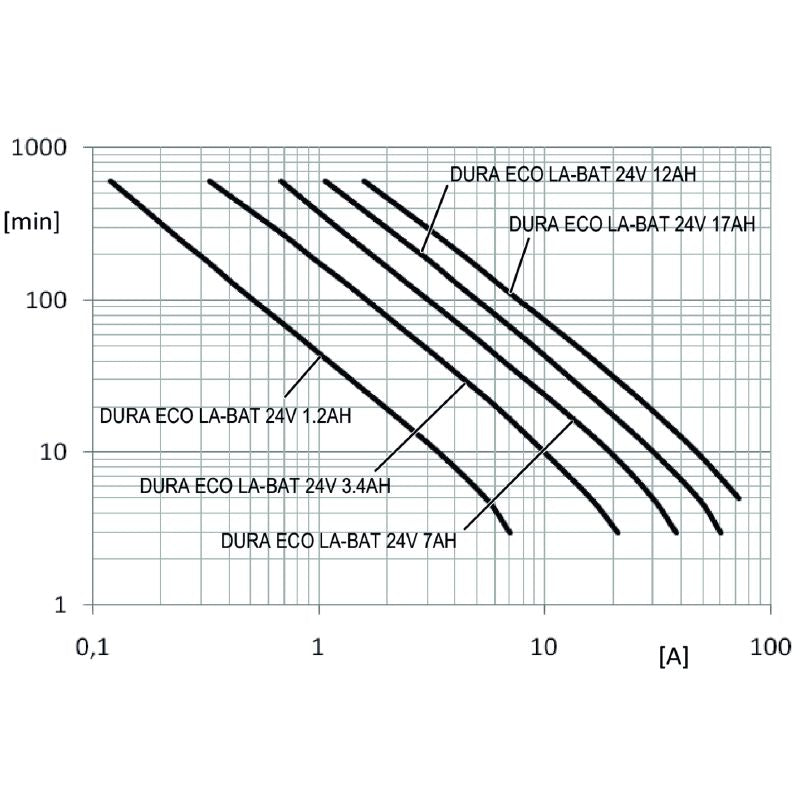

| Buffer time | {'42 A': '10 min', '21 A': '30 min', '12 A': '60 min'} |
| Ambient temperature | -15 °C...+50 °C |
| Shock wall acc. to IEC 68227 | 30 g |
| Insulation coordination protection class | III, with no ground connection, for SELV |
| Number of terminals (input) | 2 (+,−) |
| Conductor cross-section, max (flexible) | 6 AWG |
| Conductor cross-section, min (flexible) | 0.5 mm² |
