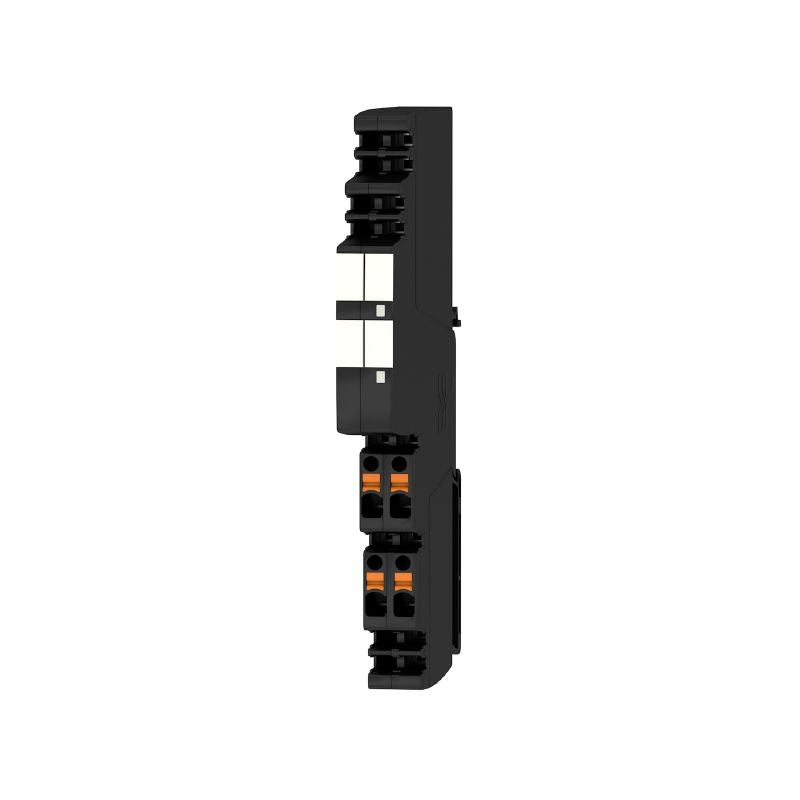

2082770000 - 24V DC Alarm Module, Compact 96.5mm Depth, cULus Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure optimal monitoring with our 24 V DC Alarm Module, an essential part of any alert system This unit is equipped with crucial certifications, including ROHS compliance and cULus certification (certificate number E258476) Installation is a breeze thanks to the innovative PUSH IN connection system It features compact dimensions of 122 mm in width, 125 mm in height, and a depth of 965 mm, while weighing only 79.

4 g Versatility is key, as it operates effectively in a wide range of temperatures, with a storage capacity of -40 °C to 85 °C and an operational range of -25 °C to 55 °C Additionally, it offers floating contact signaling and a status relay for enhanced functionality.

Features and Benefits:

•Conformal coating for enhanced environmental protection.

•Surge protection using a suppressor diode.

•Current consumption of 30 mA at full load and 25 mA when idle.

•Number of terminals: 4 (2 x NO).

•Connection system is PUSH IN.

Specifications:
