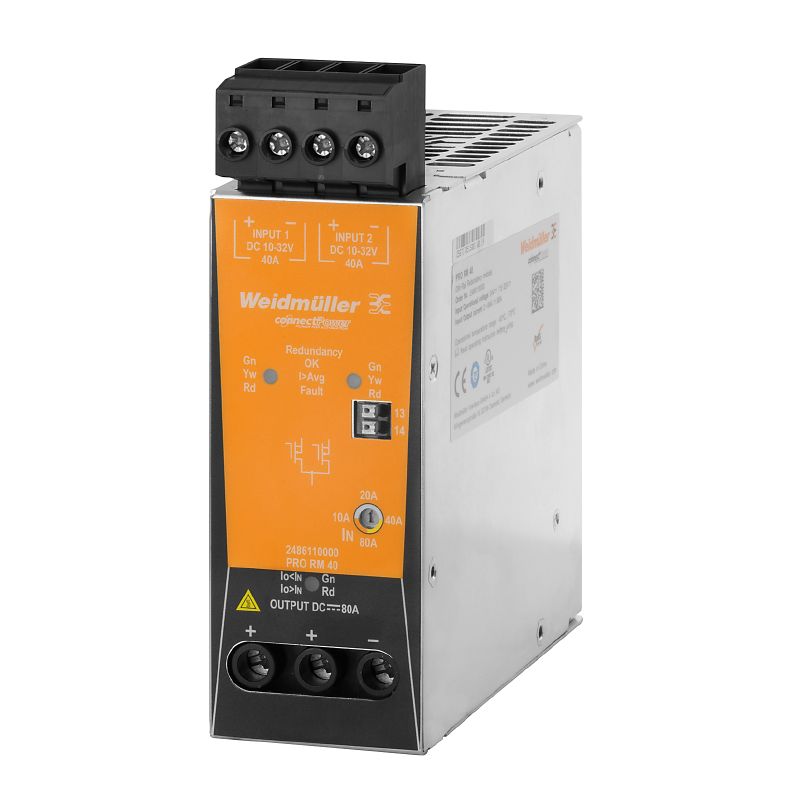

2486110000 - 24V DC Redundancy Module, 96A Output, -40°C to 70°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PRO RM 40, a robust 24 V DC redundancy module equipped with multiple certifications It accommodates a versatile input voltage range of 10 to 32 V DC and can deliver a powerful output current of up to 96 A Engineered for demanding environments, this module operates efficiently within a temperature span of -40 °C to 70 °C and can be stored between -40 °C and 85 °C With a humidity tolerance of 5% to 95% (non-condensing), it is built to withstand challenging conditions.

Featuring screw terminals for both input and output connections, the PRO RM 40 boasts an impressive MTBF (Mean Time Between Failures) exceeding 36 million hours in ideal scenarios and delivers efficiency levels of over 98% This module is also compliant with important RoHS and REACH regulations, making it a reliable choice for your power redundancy needs.

Features and Benefits:

•Input current ratings vary from 30 A to 48 A depending on temperature.

•Output power can reach up to 1,907.2 W.

•Conformal coating enhances reliability under environmental stresses.

•Compact design suitable for horizontal installation on mounting rails.

•Can operate side by side with no space requirement.
