2838450000 - Compact 120W Switch-Mode Power Supply, 12V 10A, RoHS & UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

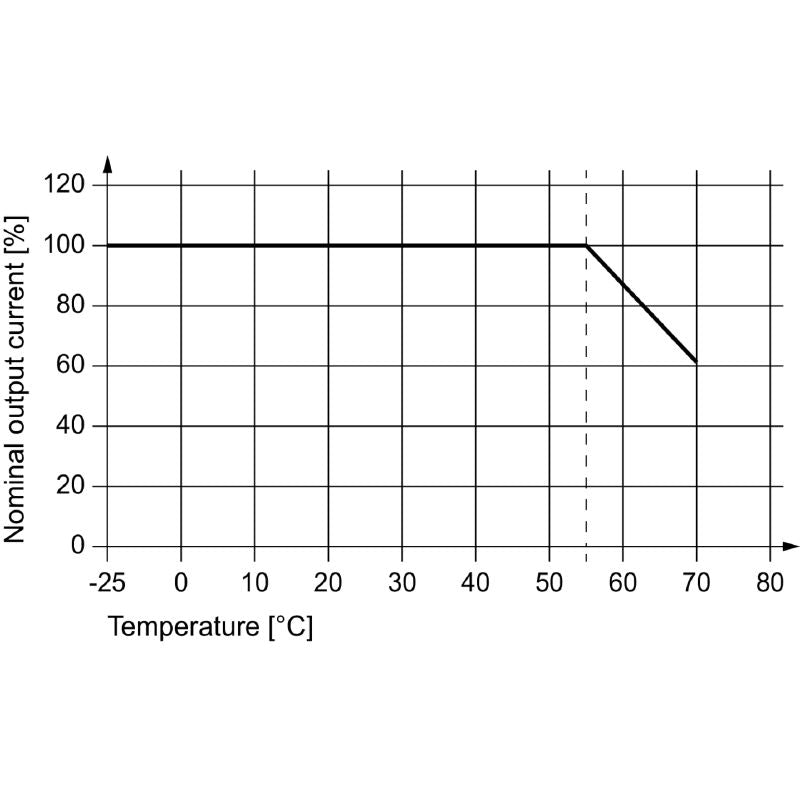

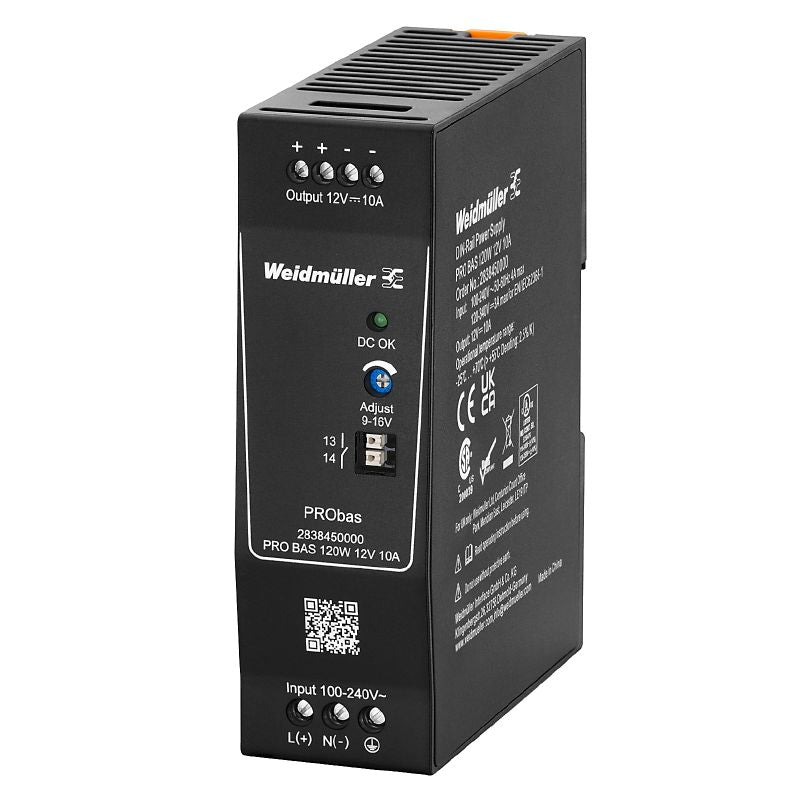

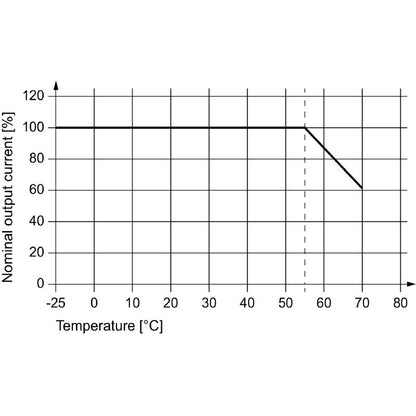

Introducing the PRO BAS 120W switch-mode power supply, engineered to provide a reliable 12 V output with a maximum current of 10 A This power supply adheres to both RoHS and UL safety standards, ensuring it meets high reliability requirements Its compact design measures 100 mm in depth, 130 mm in height, and 40 mm in width, making it versatile for a variety of applications The unit operates efficiently within a temperature range of -25 °C to 70 °C and can be stored safely between -40 °C and 85 °C.

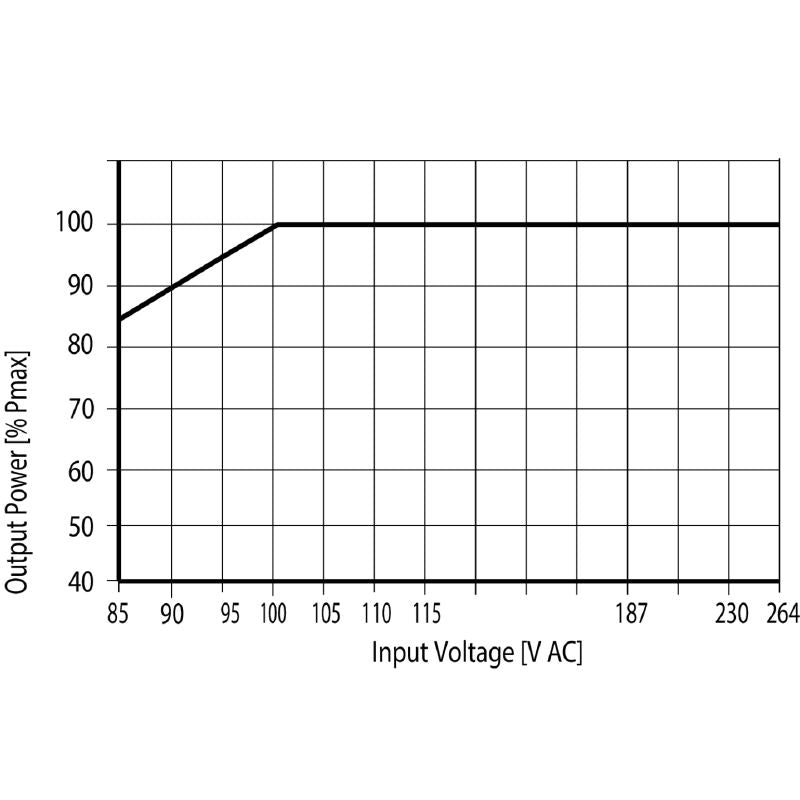

Equipped with a screw connection system, it accommodates an input voltage range of 85 to 264 V AC With a robust output capability of 120 W, it supports dual voltage types and features comprehensive safety mechanisms, including protections against overload, short-circuits, and over-temperature situations.

Features and Benefits:

•Compact dimensions with a lightweight design.

•High efficiency at 90% with 230 V AC input.

•Multiple safety features such as short-circuit protection and overload protection.

•Allows parallel connection with a maximum of three units.

•Environmentally compliant with RoHS standards.

Specifications:
