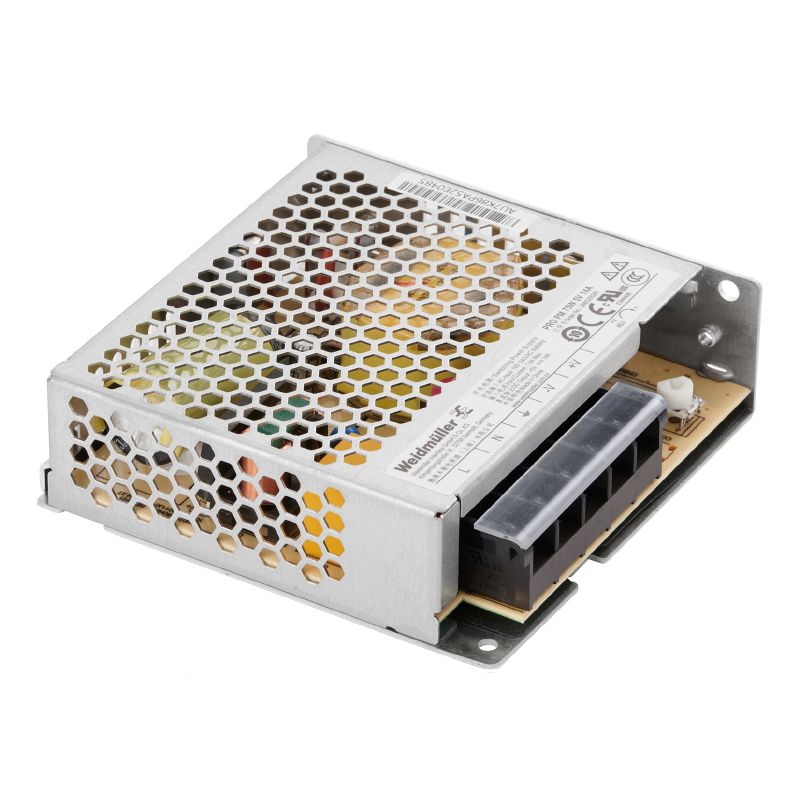

2660200282 - 75W Switch-Mode Power Supply, 99mm x 30mm x 97mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This versatile switch-mode power supply unit is engineered for a wide range of applications, delivering an output power of 75W with a consistent output voltage of 12V DC Certified to meet RoHS standards and various other approvals, it assures quality and compliance The unit is compact, measuring 99 mm deep, 30 mm high, and 97 mm wide, with a weight of just 240 g It operates effectively within a temperature range from -20 °C to 70 °C, and can be stored in temperatures as low as -40 °C and as high as 85 °C.

With an efficiency rating of 84%, it accommodates an input voltage range of 90 to 264 V AC The connection setup utilizes easy-to-manage screw connections Additionally, the unit features overload protection, adjustable output voltage tolerance through a potentiometer, and built-in surge protection for enhanced reliability.

Features and Benefits:

•Rated output current of 6A.

•Mains failure bridge-over time of 20 ms.

•Short-circuit protection included.

•LED status indication for readiness.

•Designed for panel mounting with screw fix.

•High durability with a mean time between failures of 150,000 hours.

Specifications:
